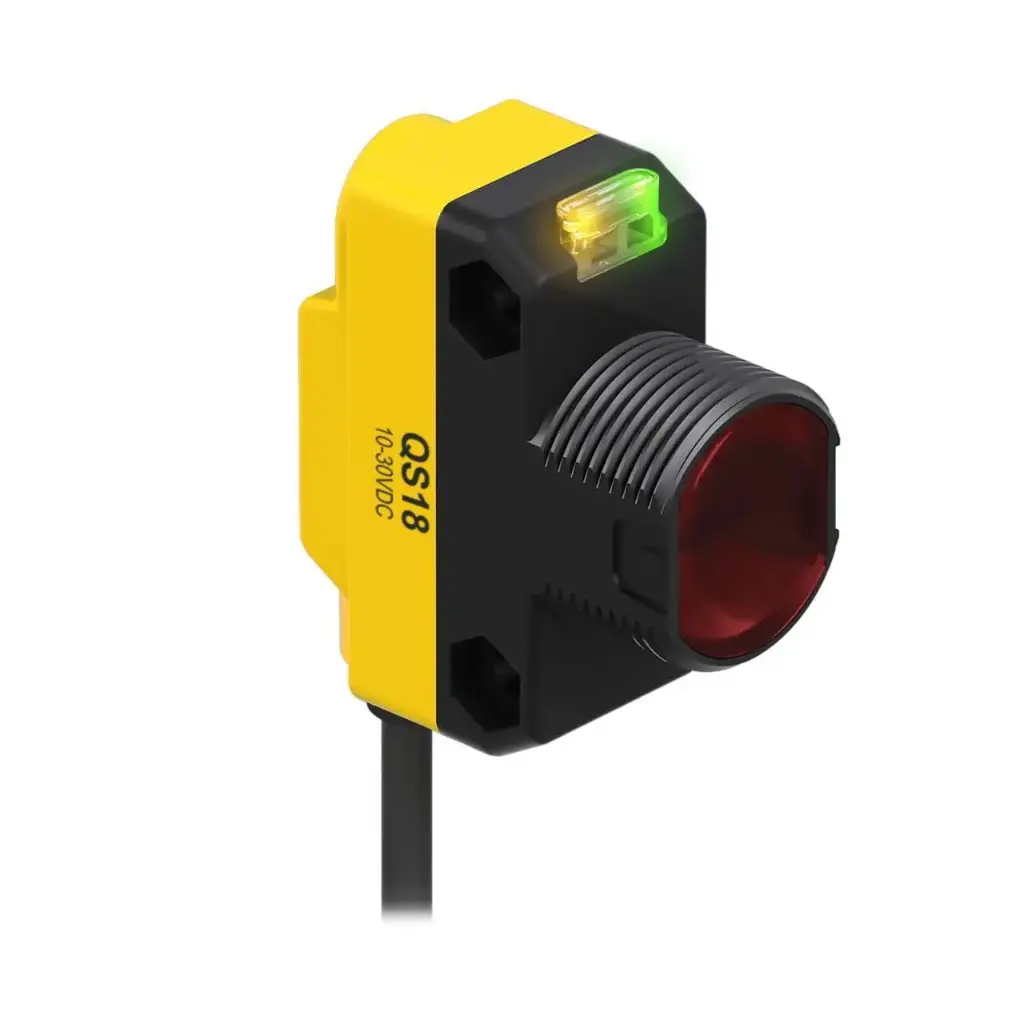

Photo sensor - emitter QS186EQ5, 20 m, infrared, 10-30VDC, M12 4-pin 150 mm cable

QS186EQ5 is the emitter of a Banner QS18 series opposed-mode photo sensor pair. It sends an infrared 940 nm beam to a separate QS18 receiver up to 20 m away; an object is detected when it breaks the beam.

• Sensing range: 20 m with a QS18 receiver, effective beam 13 mm
• Output: none (emitter)
• Supply: 10-30 V DC, < 25 mA
• Housing: ABS, 18 mm threaded nose or side mounting, 3 mm hardware included
• Environment: IP67, -20...+70 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

The emitter has no output and works only with a QS18VP6R or QS18VN6R receiver, ordered separately. A green LED indicator shows power.

Vibration tested to MIL-STD-202F, method 201A; shock to IEC 60947-5-2.
