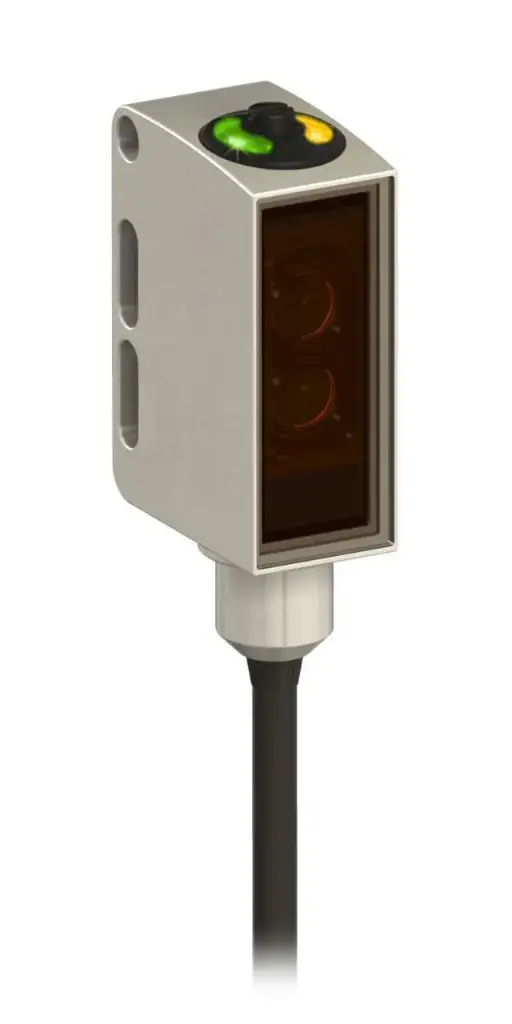

Photo sensor QM26VPAF200Q5, background suppression 5-200 mm, stainless steel, PNP, 10-30VDC, M12 4-pin 200 mm cable

QM26VPAF200Q5 is a Banner QM26 series washdown photo sensor in a 316L stainless steel housing, with adjustable background suppression and a small visible red 660 nm light spot. It detects objects up to the set cutoff and ignores the background behind them.

• Sensing range: cutoff adjustable 5-200 mm
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA per output; response 500 µs, repeatability 150 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: 316L stainless steel, coated acrylic window, 25.4 mm mounting hole spacing
• Environment: IP67, IP69K, -30...+70 °C, ECOLAB certified
• Connection: 200 mm PVC cable with M12 4-pin male connector

Made from FDA-compliant materials for food and pharmaceutical lines, rated for 1500 psi washdown at 80 °C, with the window coated against hydrogen peroxide and alcohol. The cutoff is set with an adjustment screw. Banner marks this part as soon to be obsolete.

Vibration and shock to IEC 60947-5-2.
