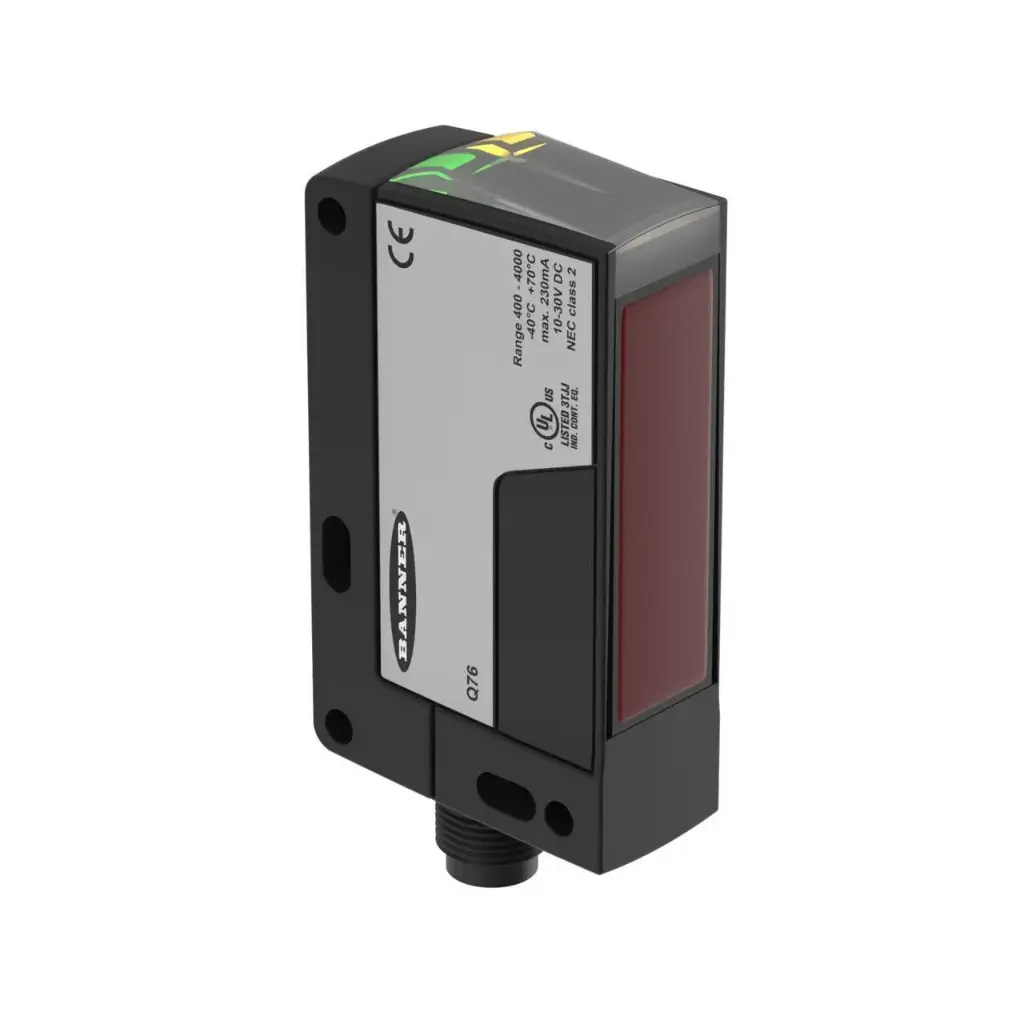

Photo sensor Q76E-VP-ZLVC-Q8, wide-beam retroreflective 0.4-4 m, PNP, NO/NC, 10-30VDC, M12 4-pin

Q76E-VP-ZLVC-Q8 is a Banner Q76 series wide-beam retroreflective photo sensor with a visible red 620 nm light band and a 0.4-4 m range. The wide band detects the leading edge of irregular objects and pallets that a single-spot beam could miss.

• Sensing range: 0.4-4 m with a 100 x 100 mm BRT-92X92CB reflector; 3 m with a 40 x 60 mm reflector
• Smallest object: 19 mm standard, 12 mm increased, 8 mm fine-adjusted sensitivity
• Output: complementary PNP, Light Operate and Dark Operate; response 2 ms, 250 Hz
• Supply: 10-30 V DC
• Housing: PC-PBT, PMMA lens cover
• Environment: IP67, IP69, -40...+60 °C, ECOLAB certified
• Connection: integral M12 4-pin male connector

Standard sensitivity switches when 28 % of the band is covered and suits opaque objects; increased sensitivity switches at 18 % for containers with openings, film and transparent objects. Sensitivity and Light/Dark Operate are set with the single teach button. The reflector must be at least 50 mm wide and 30 mm tall.
