SMB30A is a Banner right-angle bracket for sensors with a 30 mm housing. The curved slot lets the sensor be turned before the screws are tightened.

• Sensor hole: Ø30.5 mm
• Mounting: M6 (¼") hardware, 40 mm hole centre spacing
• Material: 12-gauge stainless steel

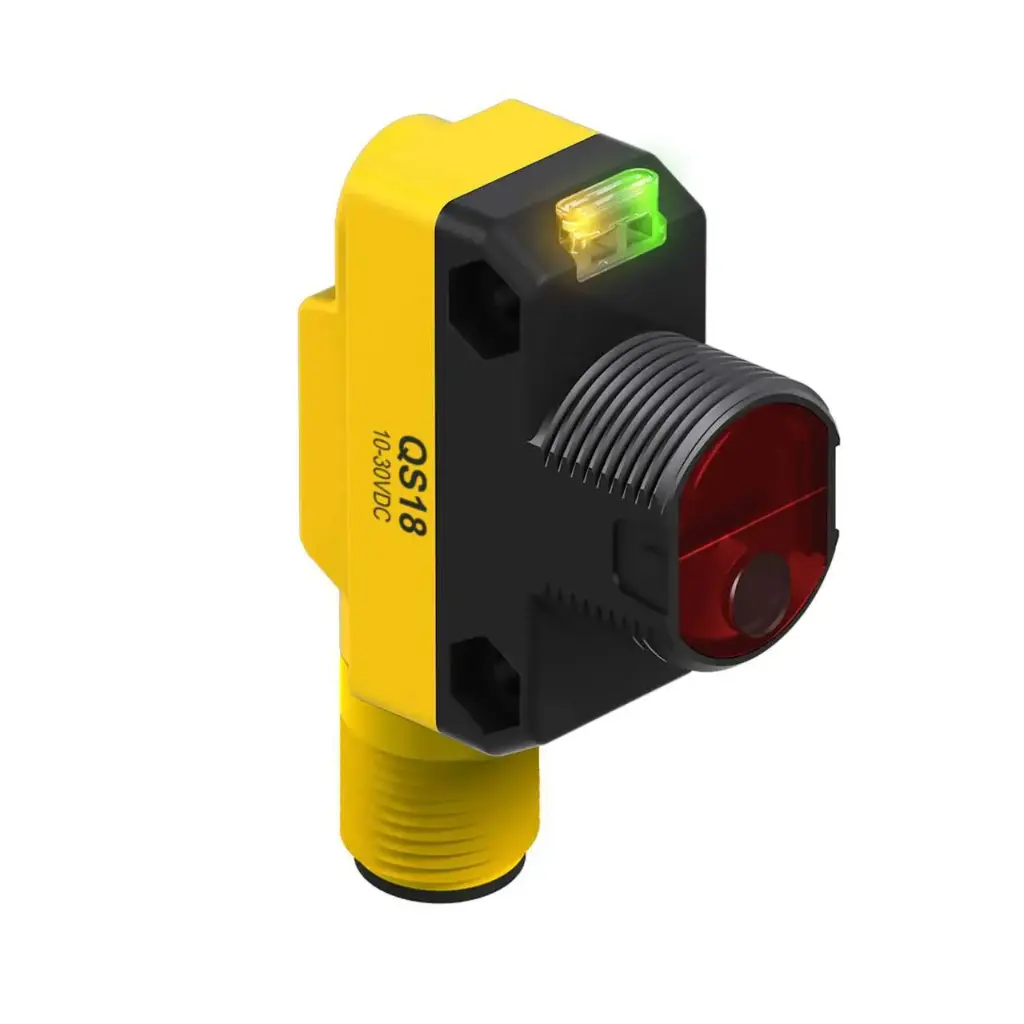

QS18VP6LDQ8 is a Banner QS18LD series Class 1 laser diffuse sensor with a 300 mm sensing range and a beam spot of about 1 mm at 300 mm, for small-object detection and precise position control. Sensitivity is set with a single-turn potentiometer, and a crosstalk rejection algorithm keeps adjacent sensors from interfering.

• Sensing range: 300 mm, adjustable sensitivity; hysteresis 15 % of range
• Outputs: complementary PNP, Light Operate (black wire) and Dark Operate (white wire), 100 mA each; response 700 µs
• Supply: 10...30 V DC, < 15 mA; protected against reverse polarity, short circuit and overload
• Housing: ABS with 18 mm threaded barrel, acrylic lens cover; barrel or side mounting, M3 hardware included
• Environment: IP67, -10...+50 °C
• Connection: integral M12 male connector, 4-pin

Two LED indicators on top are visible from all sides: green for power, amber for light sensed, flashing amber for marginal excess gain. Outputs do not switch during the first 200 ms after power-up.

CE and UKCA. Class 1 laser per IEC 60825-1:2014.

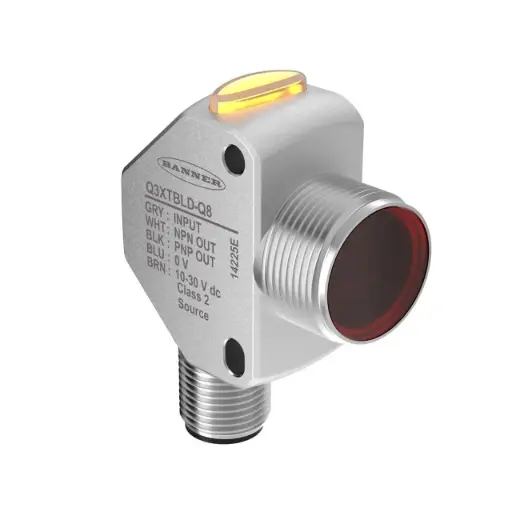

Q3XTBLD-Q8 is a Banner Q3X laser diffuse contrast sensor for parts that differ only slightly from their background. It switches at up to 2000 events per second and has no background suppression - it reads contrast over the full 0...300 mm range.

• Sensing range: 0...300 mm contrast sensing
• Output: bipolar, 1 PNP and 1 NPN, 100 mA; light/dark operate; response 250 µs, 1 ms or 5 ms
• Repeatability: 60 µs
• Supply: 10...30 V DC, < 28 mA at 24 V DC
• Housing: nickel-plated zinc die-cast with M18 nose mount, three-digit display, Class 2 red laser 655 nm
• Environment: IP67, IP68, IP69K, -10...+50 °C
• Connection: integral M12 5-pin connector

The housing withstands cutting fluids and oils, and the angled display shows the signal and switch point during setup with the two buttons or the remote teach wire.

Vibration per MIL-STD-202G method 201A, shock per method 213B (100 g). UL and CE.

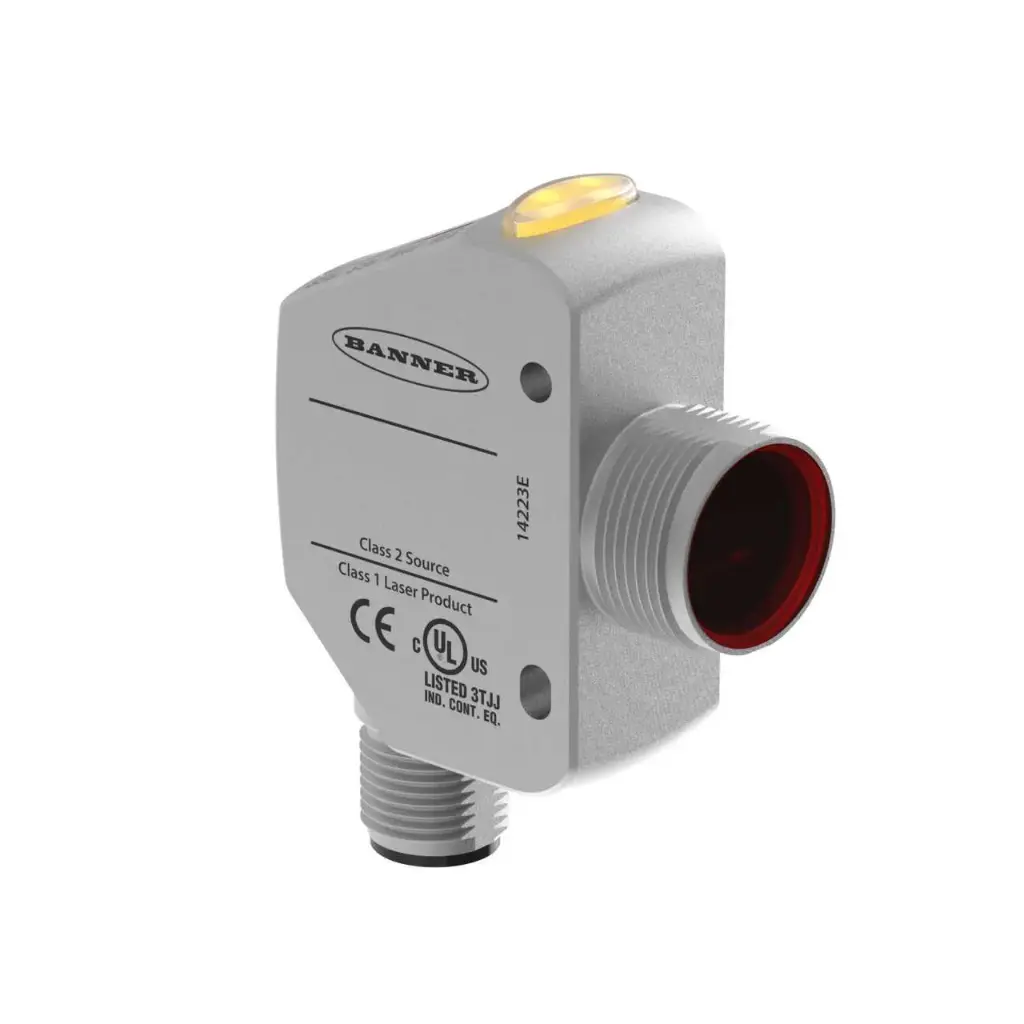

Q4XTILAF300-Q8 is a Banner Q4X series Class 1 laser distance sensor in an M18 stainless steel housing that outputs the measured distance over 25...300 mm as a 4...20 mA signal. The analog span is taught with two points or one point, and the 4-digit display shows either the output value or the distance in millimetres.

• Resolution: < 0.3 mm at 25...100 mm, < 1 mm at 100...300 mm; linearity follows the accuracy curve in the manual
• Measuring range: 25...300 mm
• Output: analog 4...20 mA, max. load 1 kΩ at 24 V; response time 0.5...2560 ms depending on measurement rate and averaging
• Supply: 12...30 V DC, < 675 mW; protected against reverse polarity and transient overvoltage
• Housing: M18x1 threaded barrel, 316L stainless steel, PMMA lens cover, polysulfone display window; nose mounting torque up to 20 N·m
• Environment: IP67, IP68, IP69K; -10...+45 °C at 24 V supply (+50 °C at 12 V, +40 °C at 30 V)
• Connection: integral M12 male connector, 5-pin; remote input for TEACH

The housing materials are ECOLAB certified for acidic and caustic cleaning and disinfecting agents and are compatible with cutting and lubricating fluids, so the sensor can stay in place on washdown lines in food processing and inside machining centres. Allow 10 minutes of warm-up for full performance.

CE, UKCA and UL listed (Industrial Control Equipment). Vibration per MIL-STD-202G method 201A, shock per MIL-STD-202G method 213B (100 G).

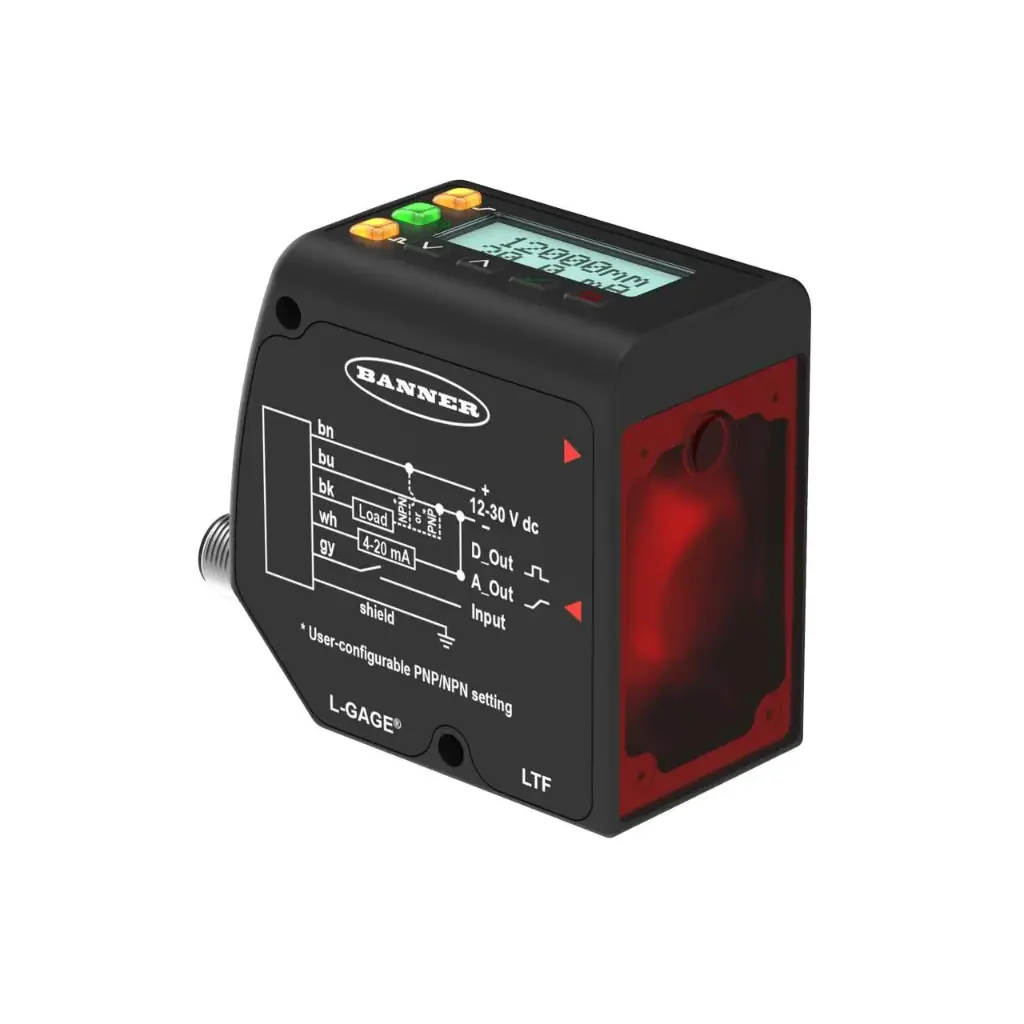

LTF12IC2LDQ is a Banner LTF time-of-flight laser distance sensor with a 4-20 mA analog output and one configurable NPN/PNP discrete output, rated to 12 m on a white target. A two-line display shows the live distance and the analog value in Run mode.

• Accuracy: ±10 mm to 12 m (90 % white), to 7 m (18 % grey), to 4 m (6 % black); temperature effect ±0.25 mm/°C
• Measuring range: 50...12000 mm (white), 50...11000 mm (grey), 50...7000 mm (black); resolution < 0.3...3 mm
• Outputs: analog 4-20 mA; discrete NPN/PNP configurable, 100 mA; response 1.5...256 ms
• Supply: 12...30 V DC, < 85 mA at 24 V DC
• Housing: die-cast zinc, acrylic window; Class 2 red laser 660 nm, ambient light immunity > 40000 lux
• Environment: IP67, -20...+55 °C
• Connection: rotatable M12 5-pin connector

Window limits are taught with the buttons or the remote wire, and the laser can be switched off through the remote input. Allow 15 minutes of warm-up for best performance.

Vibration per MIL-STD-202G method 201A, shock per method 213B (100 g). UL and CE; laser per IEC 60825-1:2014.

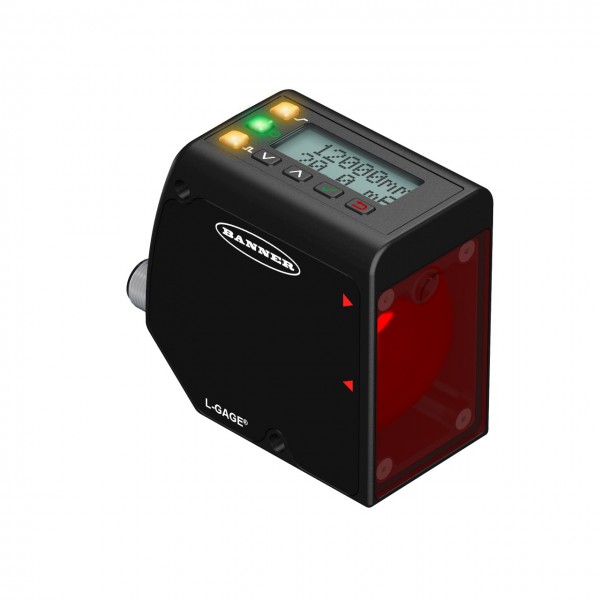

LTF12UC2LDQ is a Banner LTF time-of-flight laser distance sensor with a 0-10 V analog output and one configurable NPN/PNP discrete output, rated to 12 m on a white target. A two-line display shows the live distance and the analog value in Run mode.

• Accuracy: ±10 mm to 12 m (90 % white), to 7 m (18 % grey), to 4 m (6 % black); temperature effect ±0.25 mm/°C
• Measuring range: 50...12000 mm (white), 50...11000 mm (grey), 50...7000 mm (black); resolution < 0.3...3 mm
• Outputs: analog 0-10 V; discrete NPN/PNP configurable, 100 mA; response 1.5...256 ms
• Supply: 12...30 V DC, < 85 mA at 24 V DC
• Housing: die-cast zinc, acrylic window; Class 2 red laser 660 nm, ambient light immunity > 40000 lux
• Environment: IP67, -20...+55 °C
• Connection: rotatable M12 5-pin connector

Window limits are taught with the buttons or the remote wire, and the laser can be switched off through the remote input. Allow 15 minutes of warm-up for best performance.

Vibration per MIL-STD-202G method 201A, shock per method 213B (100 g). UL and CE; laser per IEC 60825-1:2014.

Q4XTBLAF300-Q8 is a Banner Q4X series Class 1 laser sensor in an M18 stainless steel housing with a 25...300 mm sensing range. The 4-digit display shows the distance to the target in millimetres, and the switch point is set by two-point, background suppression, foreground suppression, dynamic or dual TEACH.

• Repeatability: ±0.5 mm at 25...50 mm, ±1 % of distance at 50...300 mm
• Sensing range: 25...300 mm, switch point taught or set with the buttons
• Outputs: bipolar, 1 PNP and 1 NPN, 100 mA total, Light Operate / Dark Operate selectable; response time 1.5, 3, 10, 25 or 50 ms
• Supply: 10...30 V DC, < 675 mW; protected against reverse polarity and transient overvoltage
• Housing: M18x1 threaded barrel, 316L stainless steel, PMMA lens cover, polysulfone display window; nose mounting torque up to 20 N·m
• Environment: IP67, IP68, IP69K, -10...+50 °C
• Connection: integral M12 male connector, 5-pin; remote input for TEACH

The housing materials are ECOLAB certified for acidic and caustic cleaning and disinfecting agents and are compatible with cutting and lubricating fluids, so the sensor can stay in place on washdown lines in food processing and inside machining centres. Allow 10 minutes of warm-up for full performance.

CE, UKCA and UL listed (Industrial Control Equipment). Vibration per MIL-STD-202G method 201A, shock per MIL-STD-202G method 213B (100 G).

SMBQ4XFAM12 is a Banner bracket kit that clamps onto a 12 mm rod and carries a Q4X, QS18 or QS30 sensor on its flat plate. The rod clamp turns the sensor around the rod axis before it is locked.

• Fits: Banner Q4X, QS18 and QS30 sensors
• Rod: Ø 12 mm (1/2 in) rod bracket systems
• Material: zinc die-cast (Zamak)
• Size: plate 43.5 x 41.3 mm, sensor fixed with M3 screws
• Included: 1 bracket with hardware pack; the socket head cap screw for the rod clamp is not included

SMBQ20LV is a Banner right-angle stainless steel bracket for mounting a Q20 sensor vertically from the back. The sensor can be tipped ±10° to align the beam after the bracket is fixed.

• Fits: Banner Q20 sensors
• Type: right-angle, vertical back mount, ±10° tilt
• Material: stainless steel
• Included: 1 bracket, no mounting hardware

Q4XTULAF300-Q8 is a Banner Q4X series Class 1 laser distance sensor in an M18 stainless steel housing that outputs the measured distance over 25...300 mm as a 0...10 V signal. The analog span is taught with two points or one point, and the 4-digit display shows either the output value or the distance in millimetres.

• Resolution: < 0.3 mm at 25...100 mm, < 1 mm at 100...300 mm; linearity follows the accuracy curve in the manual
• Measuring range: 25...300 mm
• Output: analog 0...10 V, min. load 2.5 kΩ; response time 0.5...2560 ms depending on measurement rate and averaging
• Supply: 12...30 V DC, < 675 mW; protected against reverse polarity and transient overvoltage
• Housing: M18x1 threaded barrel, 316L stainless steel, PMMA lens cover, polysulfone display window; nose mounting torque up to 20 N·m
• Environment: IP67, IP68, IP69K, -10...+50 °C
• Connection: integral M12 male connector, 5-pin; remote input for TEACH

The housing materials are ECOLAB certified for acidic and caustic cleaning and disinfecting agents and are compatible with cutting and lubricating fluids, so the sensor can stay in place on washdown lines in food processing and inside machining centres. Allow 10 minutes of warm-up for full performance.

CE, UKCA and UL listed (Industrial Control Equipment). Vibration per MIL-STD-202G method 201A, shock per MIL-STD-202G method 213B (100 G).

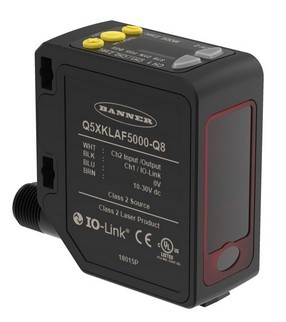

Q5XKLAF5000-Q8 is a Banner Q5X series Class 2 laser measurement sensor with a 50...5000 mm range and two independent switching outputs. It detects black targets below 6 % reflectance, also against a black or shiny metal background, and shows the measured distance on its display; settings are made with the buttons or over IO-Link.

• Sensing range: 50...5000 mm; laser alignment tolerance ±86 mm at 5000 mm
• Output 1: IO-Link, push/pull or PNP/NPN switching, 50 mA
• Output 2: PNP/NPN switching, pulse frequency output or remote input, 50 mA; response time 2, 5, 15, 50 or 250 ms
• IO-Link: v1.1, 38.4 kbit/s, Smart Sensor Profile, min. cycle time 3.6 ms
• Supply: 10...30 V DC, < 1.4 W; protected against reverse polarity and transient overvoltage
• Housing: ABS, PMMA lens cover; side mounting
• Environment: IP67, -10...+50 °C
• Connection: integral M12 male connector, 4-pin, rotatable through 270°

Black gain mode raises excess gain about three times for low-reflectivity targets, and shiny gain mode lowers it to about one third for highly reflective ones. The sensor reaches full performance after 20 minutes of warm-up.

CE, UKCA and UL listed (Industrial Control Equipment). Vibration per MIL-STD-202G method 201A, shock per MIL-STD-202G method 213B (100 G).

OT500.GL-PLPVB.72F is a background suppression photo sensor from the Baumer OT500 series, measuring by time of flight over a 150...2500 mm switching range. A red laser diode (680 nm, laser class 1) forms a point beam focused at 1500 mm, and switching follows the measured distance rather than the amount of reflected light.

• Switching range: 150...2500 mm (Tw), set by qTeach or an external teach wire
• Output: PNP, complementary (Light operate), output current 50 mA
• Repeat accuracy: ≤ 1200...4300 µm, linearity error ± 10 mm
• Supply: 12...30 V DC, consumption max. 60 mA
• Housing: plastic (ASA, PMMA), 18 x 45 x 32 mm, PMMA optics window
• Environment: IP 67, -20...+50 °C
• Connection: M12 connector, 5 pin

The complementary output gives an NO and an NC signal at the same time, so the operating mode need not be chosen before installation. Teaching is done either with qTeach on the housing or through an external wire, which allows the switching distance to be re-taught from the control cabinet. Suppression of reciprocal influence allows several sensors to be mounted side by side.

Vibration and shock resistance tested to IEC 60068-2-6:2008 (10 g, 10...2000 Hz) and IEC 60068-2-27:2009 (50 g / 11 ms).

PRO-KIT is a Banner kit for configuring Pro series lights and selected sensors from a PC with the Pro Editor software. It is needed for initial configuration only, not for the device's operation in the machine.

• Included: converter cable, splitter and power supply
• Software: Banner Pro Editor
• Fits: Banner Pro series lights and selected sensors

CE and UKCA compliant.

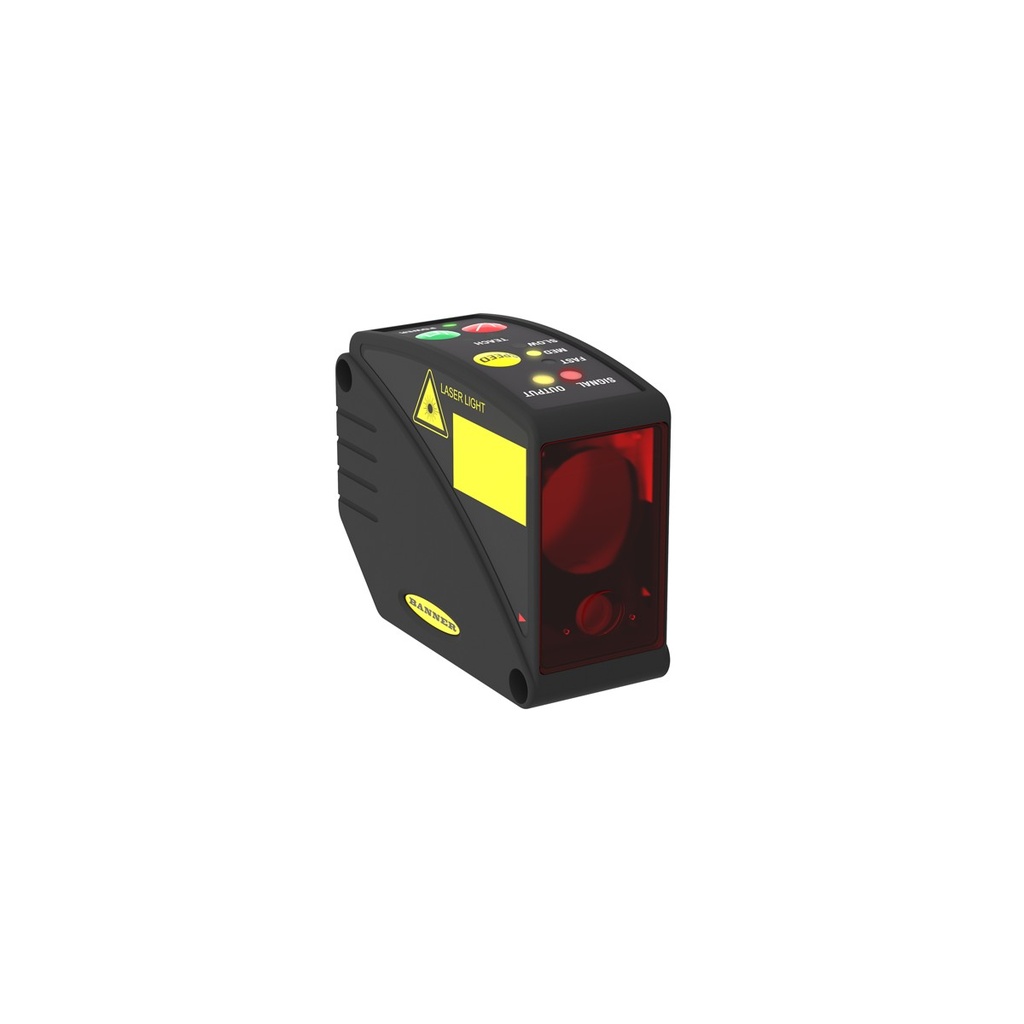

LT3PUQ-79783 is a Banner L-GAGE LT3 time-of-flight laser sensor with a 0-10 V analog output and a PNP discrete output, each with its own taught window. The analog signal is scaled across the programmed window, so a short window still uses the full 0-10 V.

• Accuracy: linearity ±30 mm (0.3...1.5 m), ±20 mm (1.5...5 m) at 24 V DC, 22 °C, white card; temperature effect < 2 mm/°C
• Measuring range: 0.3...5 m (90 % white), 0.3...3 m (18 % grey), 0.3...2 m (6 % black); minimum window 20 mm
• Outputs: analog 0-10 V; discrete PNP, 100 mA; response 1, 10 or 100 ms
• Supply: 12...24 V DC, max. 108 mA at 24 V DC; protected against reverse polarity
• Housing: ABS, acrylic window; Class 2 red laser 658 nm, beam Ø 6 mm
• Environment: IP67, NEMA 6, 0...+50 °C
• Connection: M12 8-pin swivel connector

Window limits are taught with the push buttons or the remote wire, and the red wire enables or disables the laser. Allow 30 minutes of warm-up before programming.

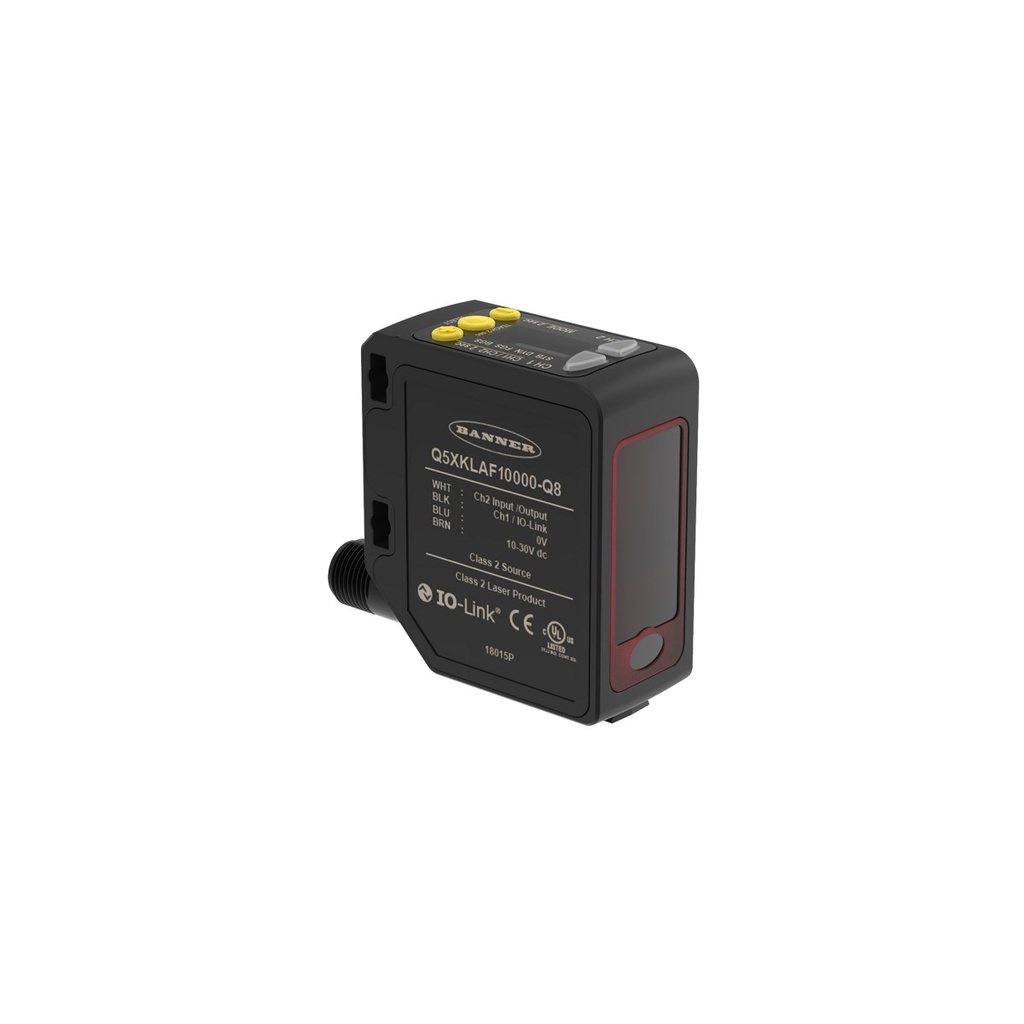

Q5XKLAF10000-Q8 is a Banner Q5X series Class 2 laser measurement sensor with a 50...10000 mm range and two independent switching outputs. It detects black targets below 6 % reflectance, also against a black or shiny metal background, and shows the measured distance on its display; settings are made with the buttons or over IO-Link.

• Sensing range: 50...10000 mm; laser alignment tolerance ±172 mm at 10000 mm
• Output 1: IO-Link, push/pull or PNP/NPN switching, 50 mA
• Output 2: PNP/NPN switching, pulse frequency output or remote input, 50 mA; response time 2, 5, 15, 50 or 250 ms
• IO-Link: v1.1, 38.4 kbit/s, Smart Sensor Profile, min. cycle time 3.6 ms
• Supply: 10...30 V DC, < 1.4 W; protected against reverse polarity and transient overvoltage
• Housing: ABS, PMMA lens cover; side mounting
• Environment: IP67, -10...+50 °C
• Connection: integral M12 male connector, 4-pin, rotatable through 270°

Black gain mode raises excess gain about three times for low-reflectivity targets, and shiny gain mode lowers it to about one third for highly reflective ones. The sensor reaches full performance after 20 minutes of warm-up.

CE, UKCA and UL listed (Industrial Control Equipment). Vibration per MIL-STD-202G method 201A, shock per MIL-STD-202G method 213B (100 G).

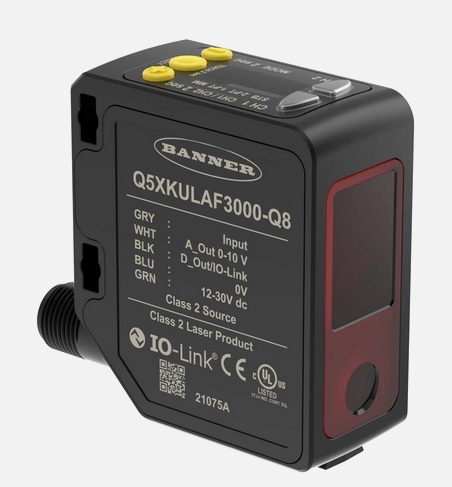

Q5XKULAF3000-Q8 is a Banner Q5X series Class 2 laser triangulation sensor that outputs distance over 95...3000 mm as a 0...10 V signal and has a second channel for switching or IO-Link. It detects black targets below 6 % reflectance and shows the distance on its display.

• Repeatability (switching output): ±0.5 mm at 95...300 mm, ±0.25 % at 300...1000 mm, ±0.5 % at 1000...2000 mm, ±1 % at 2000...3000 mm
• Measuring range: 95...3000 mm
• Output 1: analog 0...10 V, min. load 1 kΩ; response time 0.5...2270 ms depending on measurement rate and averaging
• Output 2: PNP/NPN switching or IO-Link push/pull, 50 mA; IO-Link v1.1, 38.4 kbit/s, Smart Sensor Profile
• Supply: 12...30 V DC, < 1 W; protected against reverse polarity and transient overvoltage
• Housing: ABS, PMMA lens cover, polycarbonate display window; side mounting
• Environment: IP67, -10...+50 °C
• Connection: integral M12 male connector, 5-pin, rotatable through 270°

The analog span and the switch point are taught separately, so one sensor can feed a continuous distance value to the controller and signal a limit at the same time. The sensor reaches full performance after 10 minutes of warm-up.

CE, UKCA and UL listed (Industrial Control Equipment). Vibration per MIL-STD-202G method 201A, shock per MIL-STD-202G method 213B (100 G).

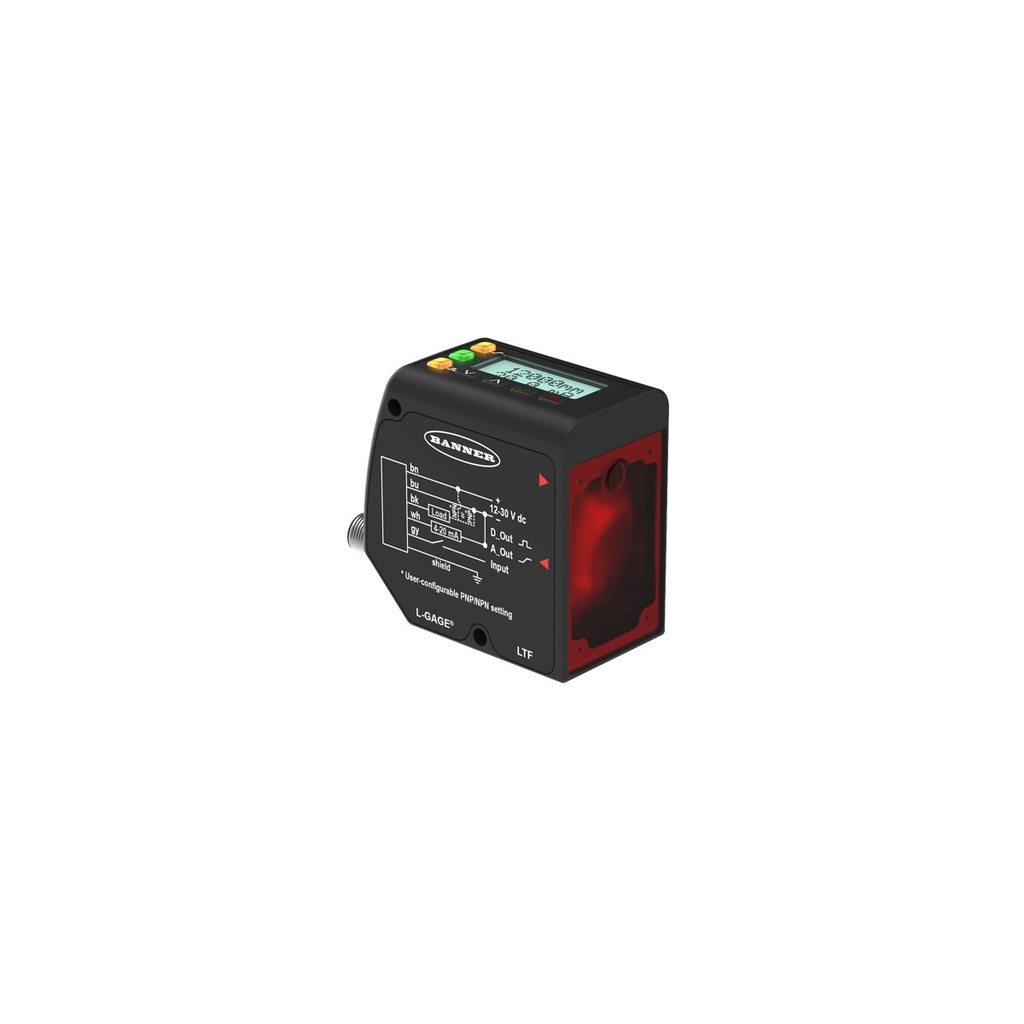

LTF12KC2LDQ is a Banner LTF time-of-flight laser distance sensor with two discrete outputs and IO-Link, rated to 12 m on a white target. A two-line display shows the live distance in Run mode.

• Accuracy: ±10 mm to 12 m (90 % white), to 7 m (18 % grey), to 4 m (6 % black); temperature effect ±0.25 mm/°C
• Measuring range: 50...12000 mm (white), 50...11000 mm (grey), 50...7000 mm (black); resolution < 0.3...3 mm
• Outputs: 2 discrete, both NPN or both PNP, 100 mA; IO-Link (Smart Sensor Profile, 38.4 kbaud); response 1.5...256 ms
• Supply: 12...30 V DC, < 85 mA at 24 V DC
• Housing: die-cast zinc, acrylic window; Class 2 red laser 660 nm, ambient light immunity > 40000 lux
• Environment: IP67, -20...+55 °C
• Connection: rotatable M12 5-pin connector

Window limits are taught with the buttons or the remote wire, and the laser can be switched off through the remote input. Allow 15 minutes of warm-up for best performance.

Vibration per MIL-STD-202G method 201A, shock per method 213B (100 g). UL and CE; laser per IEC 60825-1:2014.

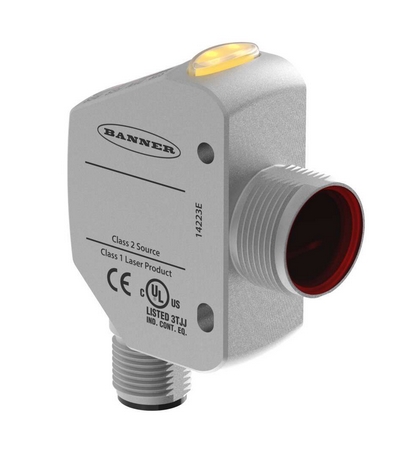

Q4XTILAF600-Q8 is a Banner Q4X series Class 1 laser distance sensor in an M18 stainless steel housing that outputs the measured distance over 25...600 mm as a 4...20 mA signal. The analog span is taught with two points or one point, and the 4-digit display shows either the output value or the distance in millimetres.

• Resolution: < 0.3 mm at 25...100 mm, < 1 mm at 100...300 mm, < 2 mm at 300...600 mm; linearity the lesser of the accuracy curve or 2.5 % of full scale
• Measuring range: 25...600 mm
• Output: analog 4...20 mA, max. load 1 kΩ at 24 V; response time 0.5...2560 ms depending on measurement rate and averaging
• Supply: 12...30 V DC, < 675 mW; protected against reverse polarity and transient overvoltage
• Housing: M18x1 threaded barrel, 316L stainless steel, PMMA lens cover, polysulfone display window; nose mounting torque up to 20 N·m
• Environment: IP67, IP68, IP69K; -10...+45 °C at 24 V supply (+50 °C at 12 V, +40 °C at 30 V)
• Connection: integral M12 male connector, 5-pin; remote input for TEACH

The housing materials are ECOLAB certified for acidic and caustic cleaning and disinfecting agents and are compatible with cutting and lubricating fluids, so the sensor can stay in place on washdown lines in food processing and inside machining centres. Allow 10 minutes of warm-up for full performance.

CE, UKCA and UL listed (Industrial Control Equipment). Vibration per MIL-STD-202G method 201A, shock per MIL-STD-202G method 213B (100 G).

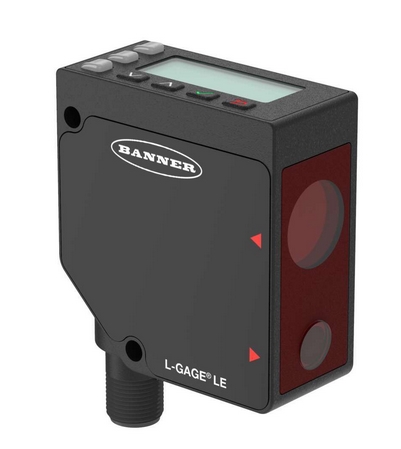

LE550IQ is a Banner L-GAGE LE550 triangulation laser displacement sensor with a 4-20 mA analog output and one configurable NPN/PNP discrete output. A two-line display shows the live distance and the analog value in Run mode.

• Accuracy: analog linearity ±4.5 mm (0.5 % of full scale); resolution < 0.5 mm (100...600 mm), < 1 mm (600...1000 mm)
• Measuring range: 100...1000 mm, minimum window 10 mm
• Outputs: analog 4-20 mA; discrete NPN/PNP configurable, 100 mA; response 2...50 ms
• Supply: 12...30 V DC, < 70 mA at 24 V DC
• Housing: die-cast zinc, acrylic window; Class 2 red laser 650 nm
• Environment: IP67, -20...+55 °C
• Connection: rotatable M12 5-pin connector

Repeatability holds on targets from shiny metal to black rubber. Allow 10 minutes of warm-up for best performance.

Vibration per MIL-STD-202G method 201A and IEC 60947-5-2. UL and CE.

OM60-PR0135.HH.YUFV is a Baumer OM60 laser distance sensor with a 70 mm measuring range at 65...135 mm and a spot beam. The distance is output as an analogue 0...10 V or 0...5 V signal, and at the same time the 32-bit measured value and the sensor settings are available over IO-Link 1.1.3.

• Measuring range: 65...135 mm (70 mm); repeatability 0.7 µm, linearity ±30 µm
• Output: 0...10 V / 0...5 V analogue, IO-Link V1.1.3 (Class A, COM3)
• Supply: 18...30 V DC, max. 100 mA
• Housing: 27.2 x 66 x 57 mm, PBT-ASA plastic, PMMA front; red laser 660 nm, laser class 1
• Environment: IP67; -10...+50 °C; ambient light up to 15 klx
• Connection: M12 5-pin connector on a 300 mm cable

A measuring frequency of 2000 Hz and a response time of 1 ms allow measurement on moving parts. Exposure time adjusts automatically, so the reading stays stable when the material colour or surface changes. The IO-Link process data follow the Smart Sensor Profile and carry, besides the measured value, two switching channels and quality and alarm bits.

Vibration resistance tested to IEC 60068-2-6, shock resistance to IEC 60068-2-27.

OM60-LR0060.HH.TXFV is a Baumer OM60 laser distance sensor with a 20 mm measuring range at 40...60 mm and a line-shaped beam. The line beam is intended for structured surfaces, where a spot beam would follow individual grooves or fibres. The measured value is read over RS485 with the Modbus RTU protocol.

• Measuring range: 40...60 mm (20 mm); repeatability 0.27 µm, linearity ±6 µm
• Output: RS485, Modbus RTU, 115200 Bd (adjustable)
• Supply: 18...30 V DC, max. 100 mA
• Housing: 27.2 x 66 x 57 mm, PBT-ASA plastic, PMMA front; red laser 660 nm, laser class 1
• Environment: IP67; -10...+50 °C; ambient light up to 15 klx
• Connection: M12 5-pin connector on a 300 mm cable

A measuring frequency of 3300 Hz and a response time of 0.65 ms allow measurement on moving parts. Exposure time adjusts automatically, so the reading stays stable when the material colour or surface changes. Settings are made on the display, over RS485 or through the external input.

Vibration resistance tested to IEC 60068-2-6, shock resistance to IEC 60068-2-27.

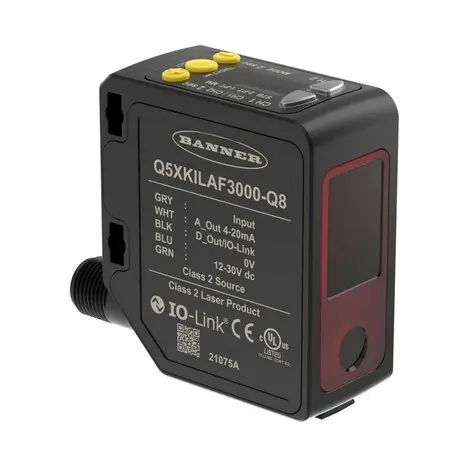

Q5XKILAF3000-Q8 is a Banner Q5X series Class 2 laser triangulation sensor that outputs distance over 95...3000 mm as a 4...20 mA signal and has a second channel for switching or IO-Link. It detects black targets below 6 % reflectance and shows the distance on its display.

• Repeatability (switching output): ±0.5 mm at 95...300 mm, ±0.25 % at 300...1000 mm, ±0.5 % at 1000...2000 mm, ±1 % at 2000...3000 mm
• Measuring range: 95...3000 mm
• Output 1: analog 4...20 mA, max. load 300 Ω; response time 0.5...2270 ms depending on measurement rate and averaging
• Output 2: PNP/NPN switching or IO-Link push/pull, 50 mA; IO-Link v1.1, 38.4 kbit/s, Smart Sensor Profile
• Supply: 12...30 V DC, < 1 W; protected against reverse polarity and transient overvoltage
• Housing: ABS, PMMA lens cover, polycarbonate display window; side mounting
• Environment: IP67, -10...+50 °C
• Connection: integral M12 male connector, 5-pin, rotatable through 270°

The analog span and the switch point are taught separately, so one sensor can feed a continuous distance value to the controller and signal a limit at the same time. The sensor reaches full performance after 10 minutes of warm-up.

Vibration per MIL-STD-202G method 201A, shock per method 213B condition I (100 g).

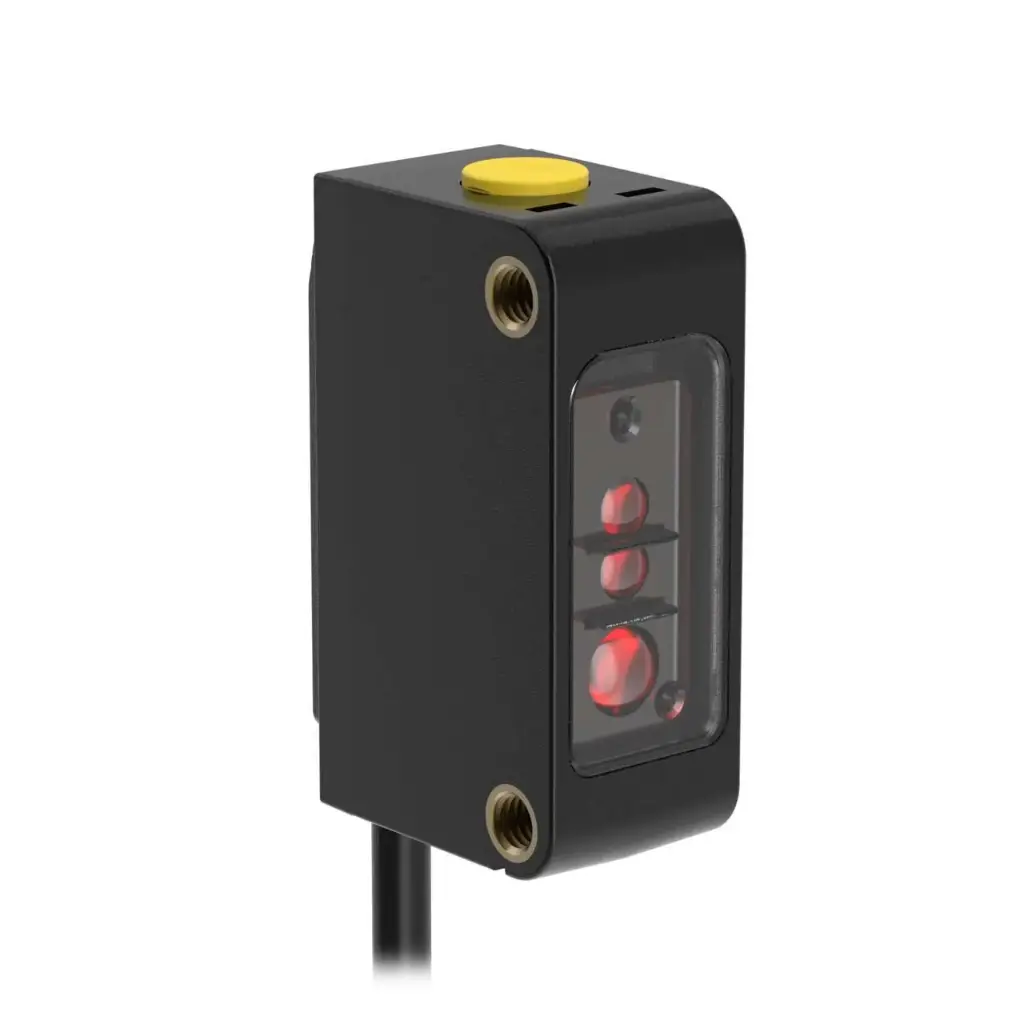

Q20-2KLAF3-Q is a Banner Q20-2 time-of-flight laser sensor with an adjustable cut-off up to 3 m. It ignores objects beyond the taught distance regardless of their colour, and IO-Link gives access to the measured distance, delay timers and diagnostics.

• Accuracy: 35 mm typical (mean of 256 samples); minimum object separation 50 mm
• Sensing range: 20...3000 mm on 90 % white card
• Outputs: channel 1 PNP and IO-Link V1.1 (Smart Sensor Profile, 38.4 kbaud); channel 2 PNP, PFM Pulse Pro or remote input; 50 mA total
• Supply: 10...30 V DC, < 35 mA; protected against reverse polarity
• Housing: compact ABS, 25.4 mm mounting hole spacing; Class 1 infrared laser 940 nm
• Environment: IP67, -20...+50 °C
• Connection: 150 mm PVC cable with M8 4-pin male connector

Four teach modes are selected with the button or remote wire: two-point background suppression (default), one-point object, one-point window (foreground suppression) and dual mode (intensity + distance). The visible red alignment LED can be switched off.

UL, CE and UKCA; FCC Part 15 Class B, ICES-003(B). Laser per IEC 60825-1:2014.

Q20-2KLAF2-Q is a Banner Q20-2 time-of-flight laser sensor with an adjustable cut-off up to 2 m. It ignores objects beyond the taught distance regardless of their colour, and IO-Link gives access to the measured distance, delay timers and diagnostics.

• Accuracy: 35 mm typical (mean of 256 samples); minimum object separation 50 mm
• Sensing range: 20...2000 mm on 90 % white card
• Outputs: channel 1 PNP and IO-Link V1.1 (Smart Sensor Profile, 38.4 kbaud); channel 2 PNP, PFM Pulse Pro or remote input; 50 mA total
• Supply: 10...30 V DC, < 35 mA; protected against reverse polarity
• Housing: compact ABS, 25.4 mm mounting hole spacing; Class 1 infrared laser 940 nm
• Environment: IP67, -20...+50 °C
• Connection: 150 mm PVC cable with M8 4-pin male connector

Four teach modes are selected with the button or remote wire: two-point background suppression (default), one-point object, one-point window (foreground suppression) and dual mode (intensity + distance). The visible red alignment LED can be switched off.

UL, CE and UKCA; FCC Part 15 Class B, ICES-003(B). Laser per IEC 60825-1:2014.

Q20-2KLAF2-Q5 is a Banner Q20-2 time-of-flight laser sensor with an adjustable cut-off up to 2 m. It ignores objects beyond the taught distance regardless of their colour, and IO-Link gives access to the measured distance, delay timers and diagnostics.

• Accuracy: 35 mm typical (mean of 256 samples); minimum object separation 50 mm
• Sensing range: 20...2000 mm on 90 % white card
• Outputs: channel 1 PNP and IO-Link V1.1 (Smart Sensor Profile, 38.4 kbaud); channel 2 PNP, PFM Pulse Pro or remote input; 50 mA total
• Supply: 10...30 V DC, < 35 mA; protected against reverse polarity
• Housing: compact ABS, 25.4 mm mounting hole spacing; Class 1 infrared laser 940 nm
• Environment: IP67, -20...+50 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

Four teach modes are selected with the button or remote wire: two-point background suppression (default), one-point object, one-point window (foreground suppression) and dual mode (intensity + distance). The visible red alignment LED can be switched off.

UL, CE and UKCA; FCC Part 15 Class B, ICES-003(B). Laser per IEC 60825-1:2014.

Q20-2KLAF3-Q5 is a Banner Q20-2 time-of-flight laser sensor with an adjustable cut-off up to 3 m. It ignores objects beyond the taught distance regardless of their colour, and IO-Link gives access to the measured distance, delay timers and diagnostics.

• Accuracy: 35 mm typical (mean of 256 samples); minimum object separation 50 mm
• Sensing range: 20...3000 mm on 90 % white card
• Outputs: channel 1 PNP and IO-Link V1.1 (Smart Sensor Profile, 38.4 kbaud); channel 2 PNP, PFM Pulse Pro or remote input; 50 mA total
• Supply: 10...30 V DC, < 35 mA; protected against reverse polarity
• Housing: compact ABS, 25.4 mm mounting hole spacing; Class 1 infrared laser 940 nm
• Environment: IP67, -20...+50 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

Four teach modes are selected with the button or remote wire: two-point background suppression (default), one-point object, one-point window (foreground suppression) and dual mode (intensity + distance). The visible red alignment LED can be switched off.

UL, CE and UKCA; FCC Part 15 Class B, ICES-003(B). Laser per IEC 60825-1:2014.

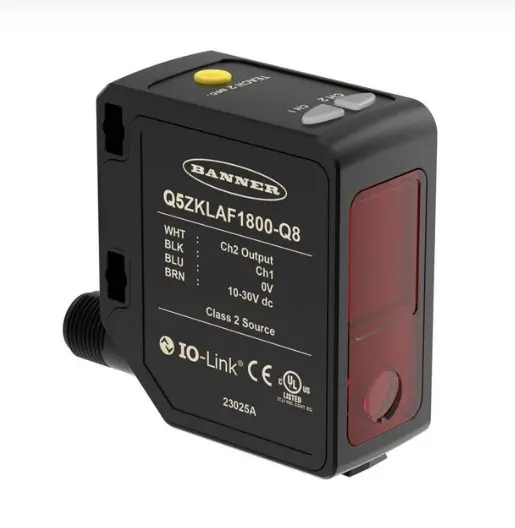

Q5ZKLAF1800-Q8 is a Banner Q5Z Global series Class 2 laser measurement sensor with a 95...1800 mm range and two switching outputs. It has no display and a single TEACH button: it ships pre-configured from the factory, and any other setting is made over IO-Link.

• Repeatability: ±0.5 mm at 95...300 mm, ±0.25 % at 300...1000 mm, ±0.52 % at 1000...1800 mm
• Sensing range: 95...1800 mm
• Output 1: IO-Link push/pull (default), configurable PNP or NPN, 50 mA
• Output 2: PNP (default), configurable PNP/NPN, pulse frequency output or remote input, 50 mA; response time 3, 5, 15, 25 or 50 ms
• Supply: 10...30 V DC, < 1 W; protected against reverse polarity and transient overvoltage
• Housing: ABS, PMMA lens cover; side mounting
• Environment: IP67, -10...+50 °C
• Connection: integral M12 male connector, 4-pin, rotatable through 270°

It detects black targets below 6 % reflectance, also against a black or shiny metal background. Configuration and process data run over IO-Link v1.1 with Smart Sensor Profile.

CE, UKCA and UL listed (Industrial Control Equipment). Vibration per MIL-STD-202G method 201A, shock per MIL-STD-202G method 213B (100 G).

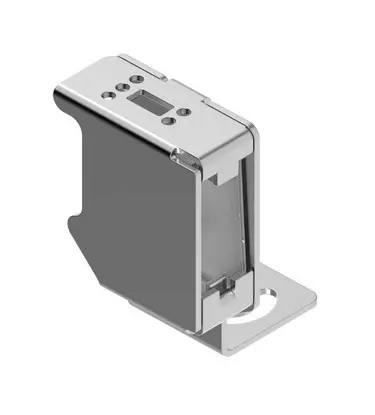

SMBAMSQ5XIPRA is a Banner enclosed bracket that houses the sensor behind a borosilicate glass window and protects it from side impact. The right-angle mount plate mounts it at 90° to the mounting surface.

• Type: enclosed bracket, right-angle mount plate
• Material: 13-gauge stainless steel
• Window: borosilicate glass, replaceable
• Mounting: AMS slot pattern, Ø 6.7 mm holes
• Included: 1 bracket with hardware pack

Q4XFULAF310-Q8 is a Banner Q4X series laser sensor with a 0-10 V analog output proportional to target distance over 35-310 mm, in a flush-mount 316L stainless steel housing. The measuring window is set with the push buttons or by remote teach.

• Resolution: < 0.3 mm at 35-110 mm, < 1 mm at 110-310 mm; linearity follows the accuracy curve
• Measuring range: 35-310 mm
• Output: analog 0-10 V, 2.5 kΩ min. load; response 0.5...2560 ms depending on measurement rate and averaging
• Supply: 12-30 V DC, < 675 mW
• Housing: flush mount, 316L stainless steel, PMMA lens cover; visible red Class 1 laser 655 nm
• Environment: IP67, IP68, IP69K, -10...+50 °C
• Connection: integral M12 male connector, 5-pin

The housing resists the acidic and caustic cleaning agents used in sanitation and is ECOLAB certified. Allow 10 minutes of warm-up for best accuracy.

Shock tested to MIL-STD-202G, method 213B (100 g); vibration to method 201A. UL and CE approved.
