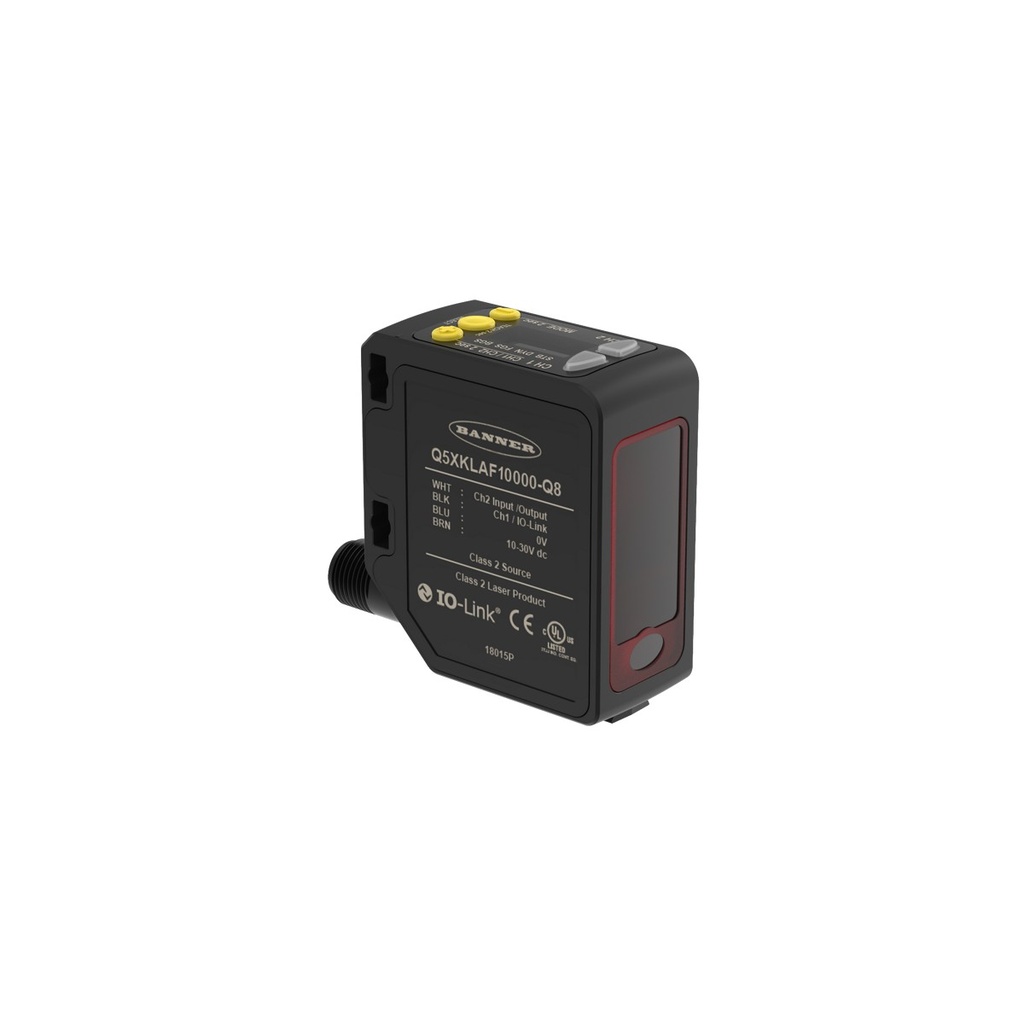

Laser sensor Q5XKLAF10000-Q8, 50-10000mm, 2x PNP/NPN, IO-Link, 10-30VDC, IP67, M12 4-pin

Q5XKLAF10000-Q8 is a Banner Q5X series Class 2 laser measurement sensor with a 50...10000 mm range and two independent switching outputs. It detects black targets below 6 % reflectance, also against a black or shiny metal background, and shows the measured distance on its display; settings are made with the buttons or over IO-Link.

• Sensing range: 50...10000 mm; laser alignment tolerance ±172 mm at 10000 mm
• Output 1: IO-Link, push/pull or PNP/NPN switching, 50 mA
• Output 2: PNP/NPN switching, pulse frequency output or remote input, 50 mA; response time 2, 5, 15, 50 or 250 ms
• IO-Link: v1.1, 38.4 kbit/s, Smart Sensor Profile, min. cycle time 3.6 ms
• Supply: 10...30 V DC, < 1.4 W; protected against reverse polarity and transient overvoltage
• Housing: ABS, PMMA lens cover; side mounting
• Environment: IP67, -10...+50 °C
• Connection: integral M12 male connector, 4-pin, rotatable through 270°

Black gain mode raises excess gain about three times for low-reflectivity targets, and shiny gain mode lowers it to about one third for highly reflective ones. The sensor reaches full performance after 20 minutes of warm-up.

CE, UKCA and UL listed (Industrial Control Equipment). Vibration per MIL-STD-202G method 201A, shock per MIL-STD-202G method 213B (100 G).
