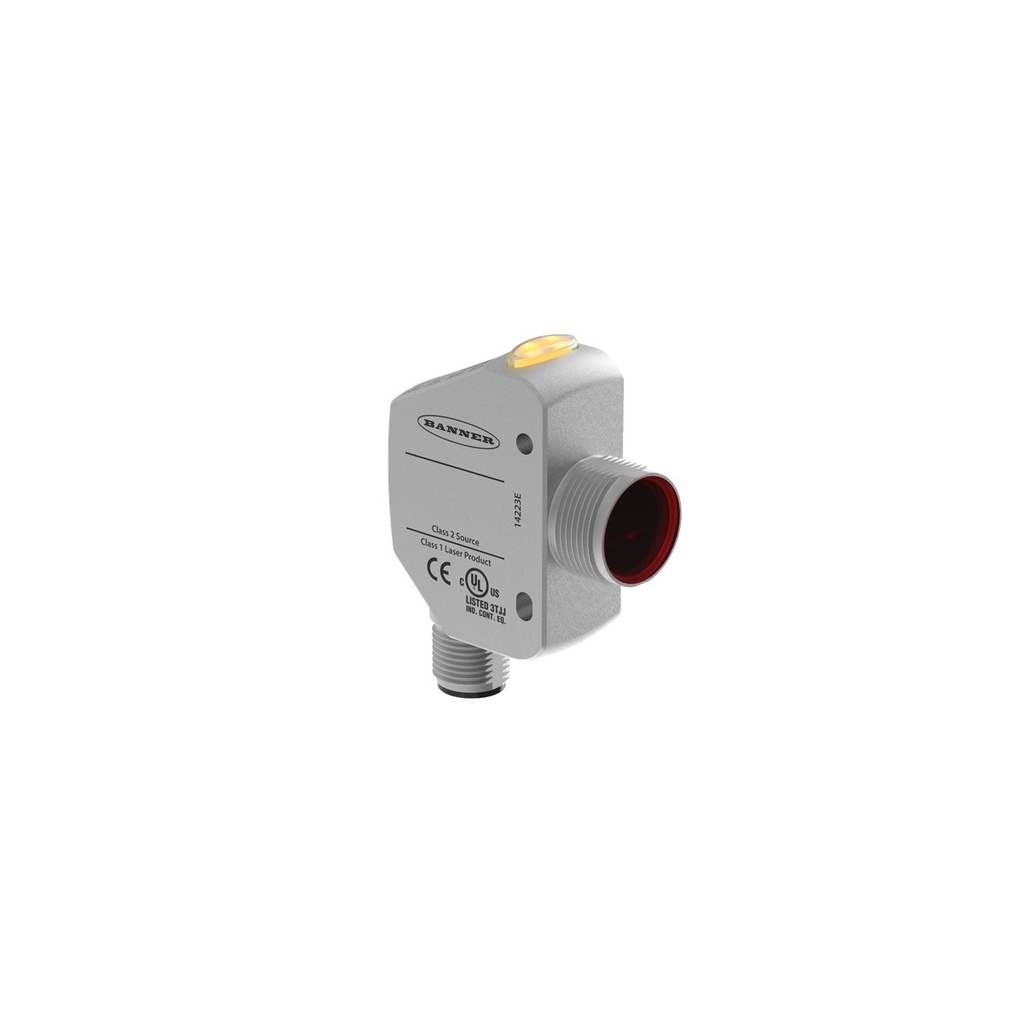

Laser distance sensor Q4XTULAF500-Q8, 25-500 mm, 0-10 V, stainless steel, 12-30VDC, M12 5-pin

Q4XTULAF500-Q8 is a Banner Q4X series laser distance sensor with a Class 1 visible red 655 nm laser and a 0-10 V analog output over 25-500 mm. It measures dark and shiny targets alike and shows the reading in volts or millimetres on its four-digit display.

• Resolution: < 0.3 mm at 25-100 mm, < 1 mm at 100-300 mm, < 1.75 mm at 300-500 mm; linearity follows the accuracy curve in the manual
• Measuring range: 25-500 mm
• Output: analog 0-10 V, min. load 2.5 kOhm; response 0.5...2560 ms depending on averaging
• Supply: 12-30 V DC, < 675 mW
• Housing: 316L stainless steel, M18 threaded barrel, PMMA lens cover
• Environment: IP67, IP68, IP69K, -10...+50 °C, ECOLAB certified
• Connection: integral M12 5-pin male connector

The analog span is taught with the push buttons or the remote input, with one-point and two-point teach. The housing withstands aggressive cleaning and typical cutting and lubricating fluids, so it fits washdown food lines and machining centres. Allow 10 minutes of warm-up for best accuracy.

Shock to MIL-STD-202G, method 213B; vibration to MIL-STD-202G, method 201A. Class 1 laser product.
