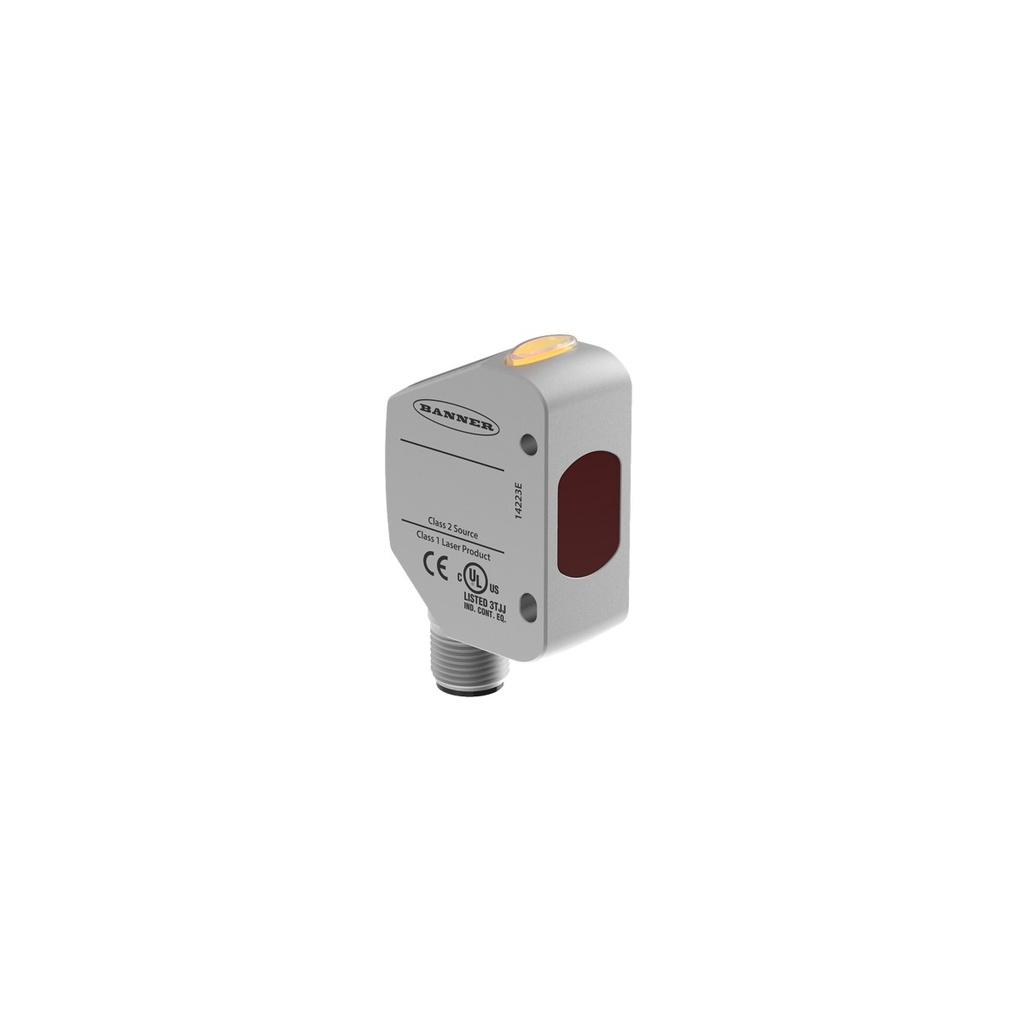

Laser distance sensor Q4XFULAF310-Q8, 35-310 mm, 0-10V, 12-30VDC, stainless steel, M12 5-pin, IP69K

Q4XFULAF310-Q8 is a Banner Q4X series laser sensor with a 0-10 V analog output proportional to target distance over 35-310 mm, in a flush-mount 316L stainless steel housing. The measuring window is set with the push buttons or by remote teach.

• Resolution: < 0.3 mm at 35-110 mm, < 1 mm at 110-310 mm; linearity follows the accuracy curve
• Measuring range: 35-310 mm
• Output: analog 0-10 V, 2.5 kΩ min. load; response 0.5...2560 ms depending on measurement rate and averaging
• Supply: 12-30 V DC, < 675 mW
• Housing: flush mount, 316L stainless steel, PMMA lens cover; visible red Class 1 laser 655 nm
• Environment: IP67, IP68, IP69K, -10...+50 °C
• Connection: integral M12 male connector, 5-pin

The housing resists the acidic and caustic cleaning agents used in sanitation and is ECOLAB certified. Allow 10 minutes of warm-up for best accuracy.

Shock tested to MIL-STD-202G, method 213B (100 g); vibration to method 201A. UL and CE approved.
