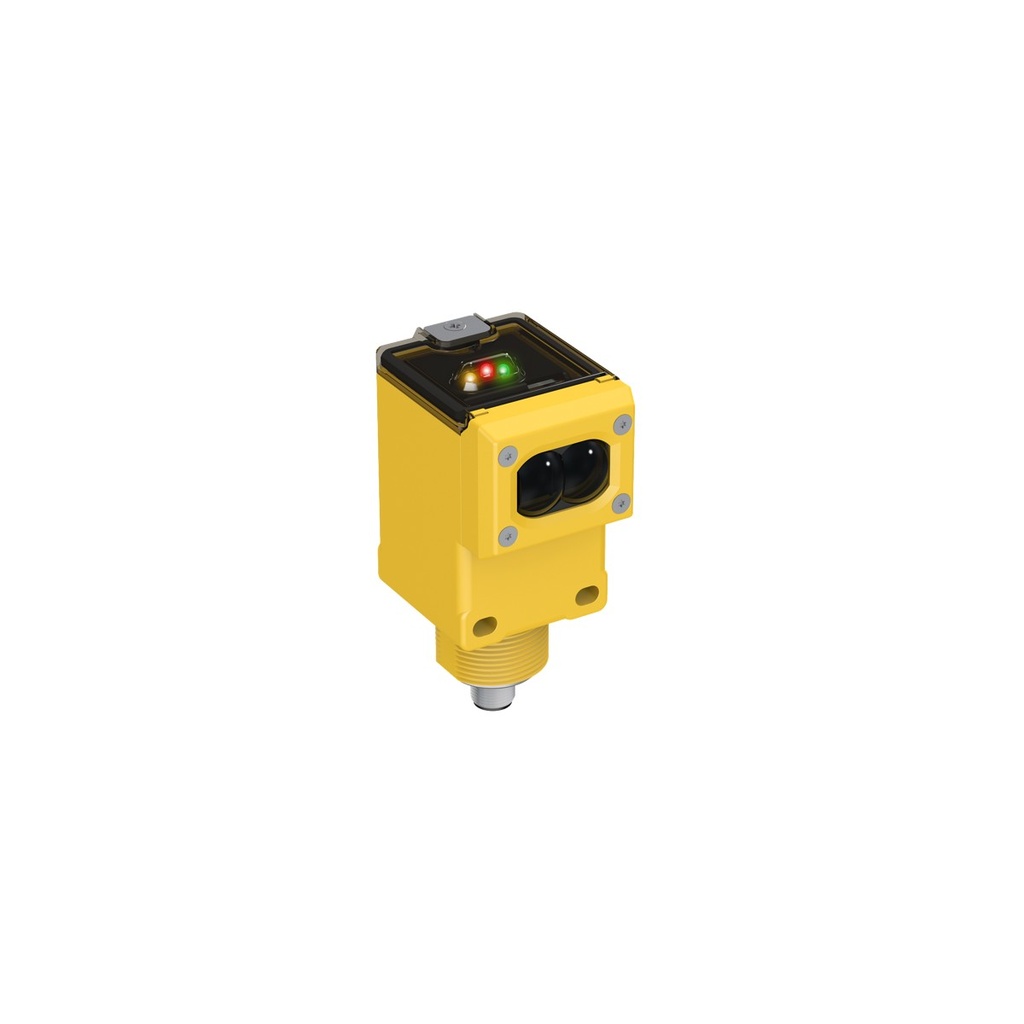

Photo sensor - receiver Q45BB6RQ5, opposed 60 m, PNP+NPN, 10-30VDC, M12 4-pin

Q45BB6RQ5 is the receiver of a Banner Q45 series opposed-mode photo sensor pair. It switches when an object breaks the infrared beam from a Q45 emitter up to 60 m away, with one PNP and one NPN output.

• Sensing range: 60 m with a Q45 emitter
• Output: bipolar, 1 PNP and 1 NPN, Light or Dark Operate by switch
• Response: 2 ms ON, 1 ms OFF; repeatability 250 µs
• Supply: 10-30 V DC
• Housing: rugged rectangular, thermoplastic, acrylic lens, 30 mm threaded mounting hub
• Environment: IP67, NEMA 4X, -40...+70 °C
• Connection: integral M12 male connector, 4-pin

Needs a Q45 emitter, ordered separately. Sensitivity is set with a multi-turn control, and the signal strength indicator helps with alignment. CE approved.
