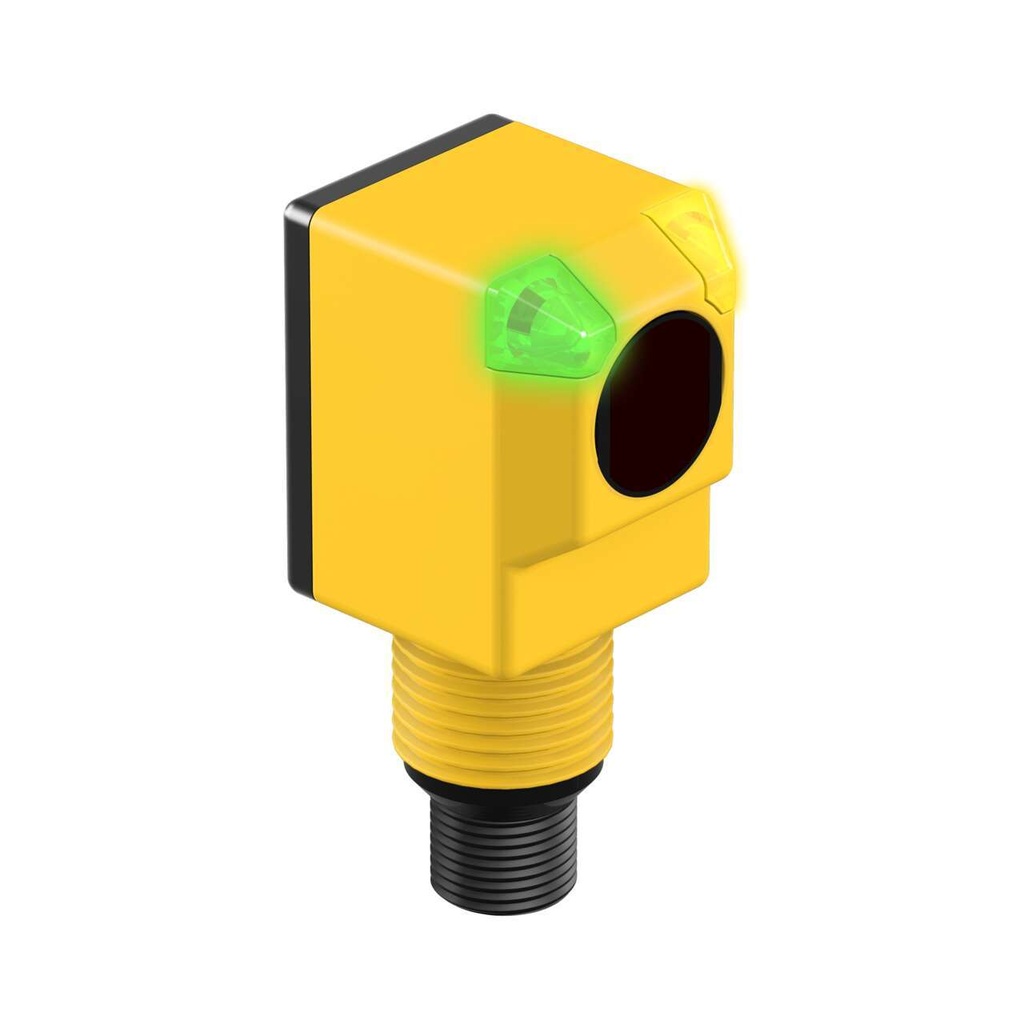

Photo sensor - receiver Q40SP6R, 60 m, PNP, NO/NC, 10-30VDC, 2 m cable

Q40SP6R is the receiver of a Banner EZ-BEAM Q40 series opposed-mode photo sensor pair. It switches when an object breaks the infrared beam from a separate Q40 emitter up to 60 m away.

• Sensing range: 60 m with a Q406E emitter
• Output: PNP, complementary Light Operate and Dark Operate outputs, 150 mA
• Response: 3 ms ON, 1.5 ms OFF
• Supply: 10-30 V DC, reverse-polarity and short-circuit protected
• Housing: thermoplastic, polycarbonate lens, M30 mounting nut included
• Environment: IP67, -40...+70 °C
• Connection: 2 m cable, 4 wires

Works with a Q406E emitter, ordered separately. A green LED indicator shows power and a yellow one the output state.
