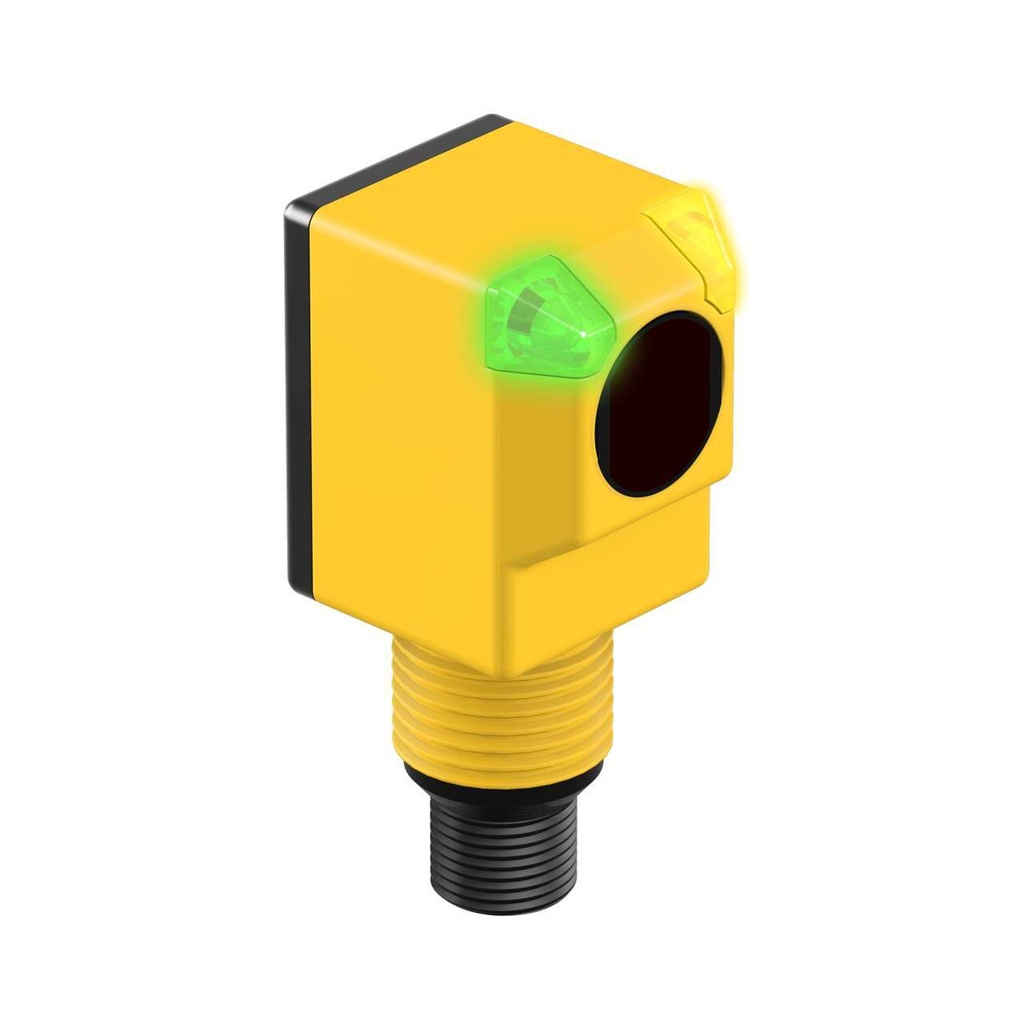

Photo sensor - emitter Q406E, 60 m, 10-30VDC, 2 m cable

Q406E is the emitter of a Banner EZ-BEAM Q40 series opposed-mode photo sensor pair. It sends an infrared beam to a separate Q40 receiver up to 60 m away; an object is detected when it breaks the beam.

• Sensing range: 60 m with a Q40 receiver
• Output: none (emitter)
• Supply: 10-30 V DC, reverse-polarity protected
• Housing: thermoplastic, polycarbonate lens, M30 mounting nut included
• Environment: IP67, -40...+70 °C
• Connection: 2 m cable, 2 wires

The emitter has no output and needs a Q40 receiver such as the Q40SP6R, ordered separately.
