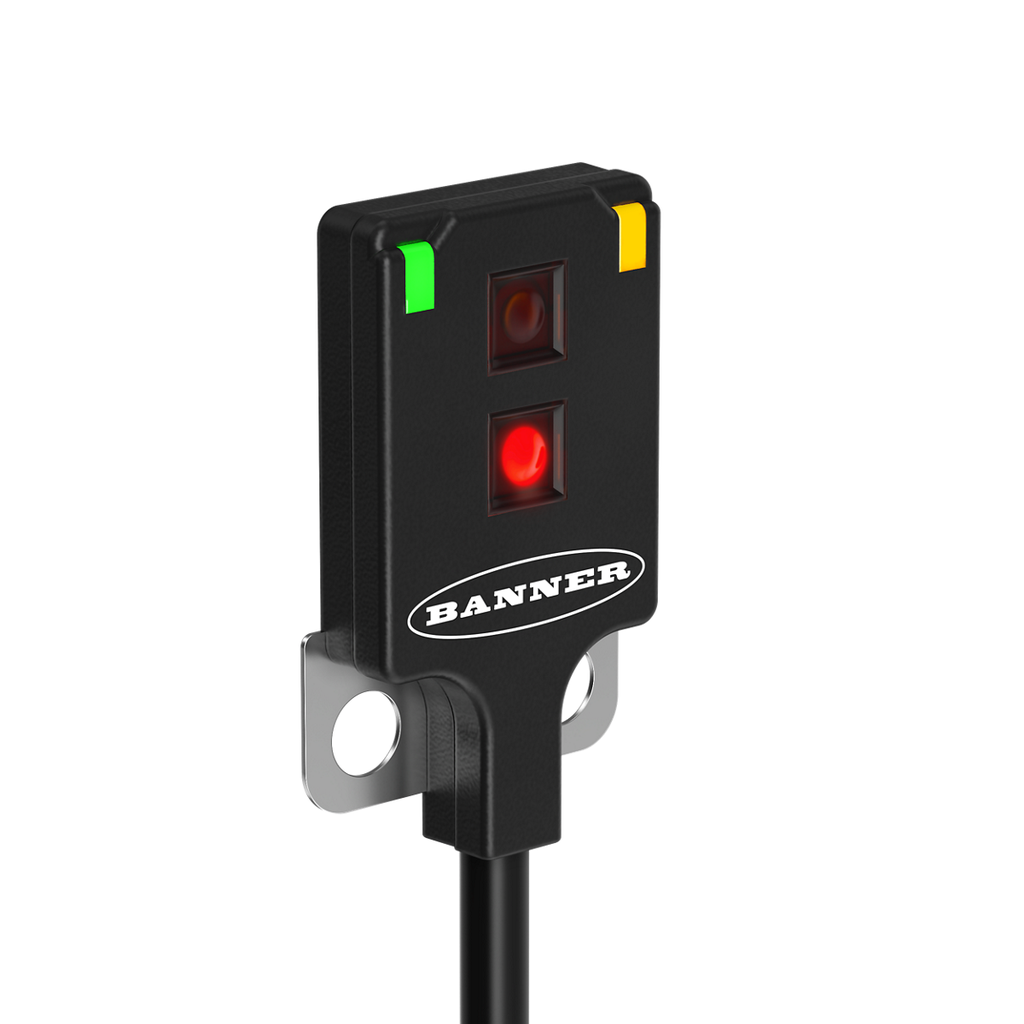

Photo sensor Q2FAP3FF30-Q, fixed field 30 mm, PNP NO, 10-30VDC, 150 mm pigtail M8 4-pin, IP65

Q2FAP3FF30-Q is a Banner Q2F series fixed-field photo sensor with a 30 mm cutoff and a visible red beam, in a flat low-profile housing. It detects objects closer than the cutoff and ignores everything beyond it, and the flat housing fits installations where a standard sensor housing does not.

• Sensing range: 30 mm cutoff, fixed; spot size 2.6 mm at 30 mm
• Output: PNP, Light Operate, 50 mA; protected against short circuit and overload
• Response: 850 µs; repeatability 125 µs
• Supply: 10-30 V DC, < 20 mA; reverse polarity protected
• Housing: flat, PC housing and lens cover, mounting with M3 screws
• Environment: IP65, -25...+55 °C
• Connection: 150 mm PVC cable with M8 male connector, 4-pin

Target colour has little effect on the cutoff: between 90 % and 6 % reflectance it shifts by no more than 1.7 mm. There is no sensitivity adjustment. With a shiny background, tilt the sensor so the reflection is directed away from it. A green LED shows power; the amber LED shows that light is sensed and flashes at a marginal signal.

CE and cULus Listed.
