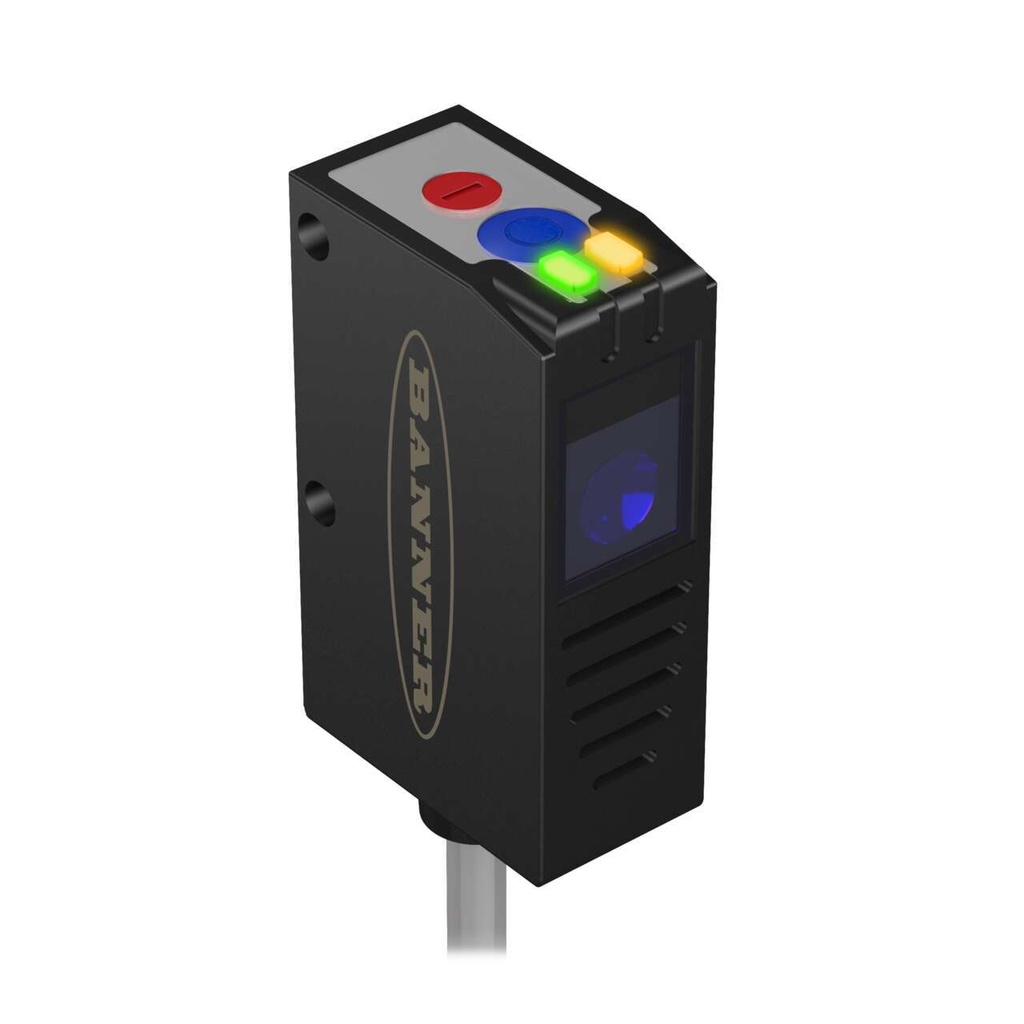

Luminescence sensor Q26PLUMQ5, UV, 10...30 mm, PNP, 12-30VDC, M12 4-pin pigtail

Q26PLUMQ5 is a Banner Q26 luminescence sensor: a 375 nm UV LED makes the target glow and the sensor detects that glow, so luminescent plastics, coatings, lubricants and marks are found on even or uneven surfaces regardless of their colour under normal light.

• Sensing range: 10...30 mm, beam Ø2 mm at 15 mm, UV 375 nm
• Output: PNP, 100 mA; response 250 µs or 1 ms, 2 kHz or 500 Hz, depending on sensitivity
• Supply: 12-30VDC, 30 mA
• Housing: ABS, 14 x 25 x 42 mm, glass window, max 0.8 Nm mounting torque
• Environment: IP67, -10...+55 °C
• Connection: 150 mm PVC pigtail with M12 4-pin connector

Light Operate or Dark Operate is selected with a rotary switch. The threshold is taught with the button or the remote wire by Light SET, Two-Point TEACH or Dark SET.

Vibration per EN 60068-2-6, shock per EN 60068-2-27.
