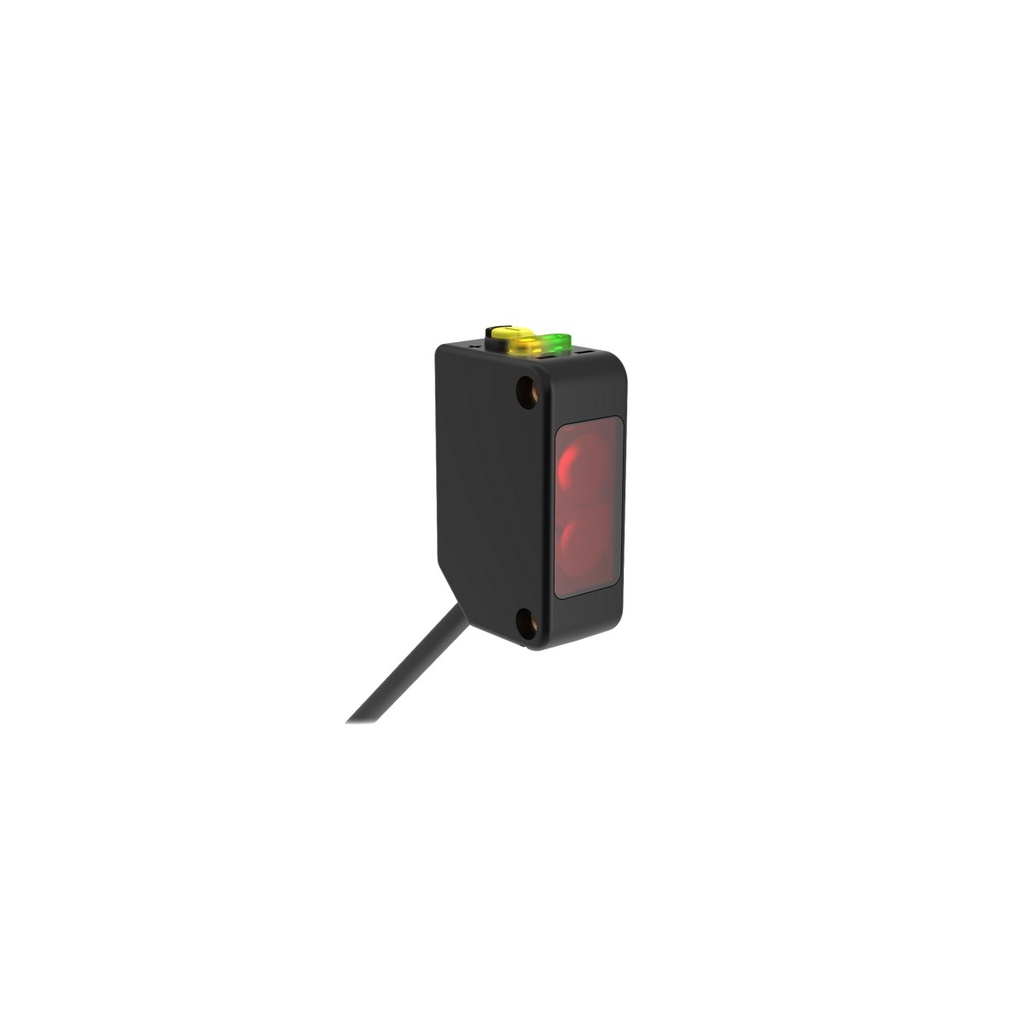

Photo sensor Q20PLV, retroreflective 6 m, PNP NO/NC, 10-30VDC, 2 m cable

Q20PLV is a Banner Q20 series non-polarised retroreflective photo sensor with a visible red 645 nm beam and a range of 6 m to a reflector. It switches when an object breaks the beam between the sensor and the reflector.

• Sensing range: 6 m with a reflector
• Output: complementary PNP, Light Operate and Dark Operate
• Response: 0.8 ms; repeatability 155 µs
• Supply: 10-30 V DC
• Housing: compact rectangular, thermoplastic, acrylic lens
• Environment: IP67, NEMA 6, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

Needs a reflector, ordered separately. Being non-polarised, it can be fooled by shiny targets; sensitivity is set with a potentiometer.

UL and CE approved.
