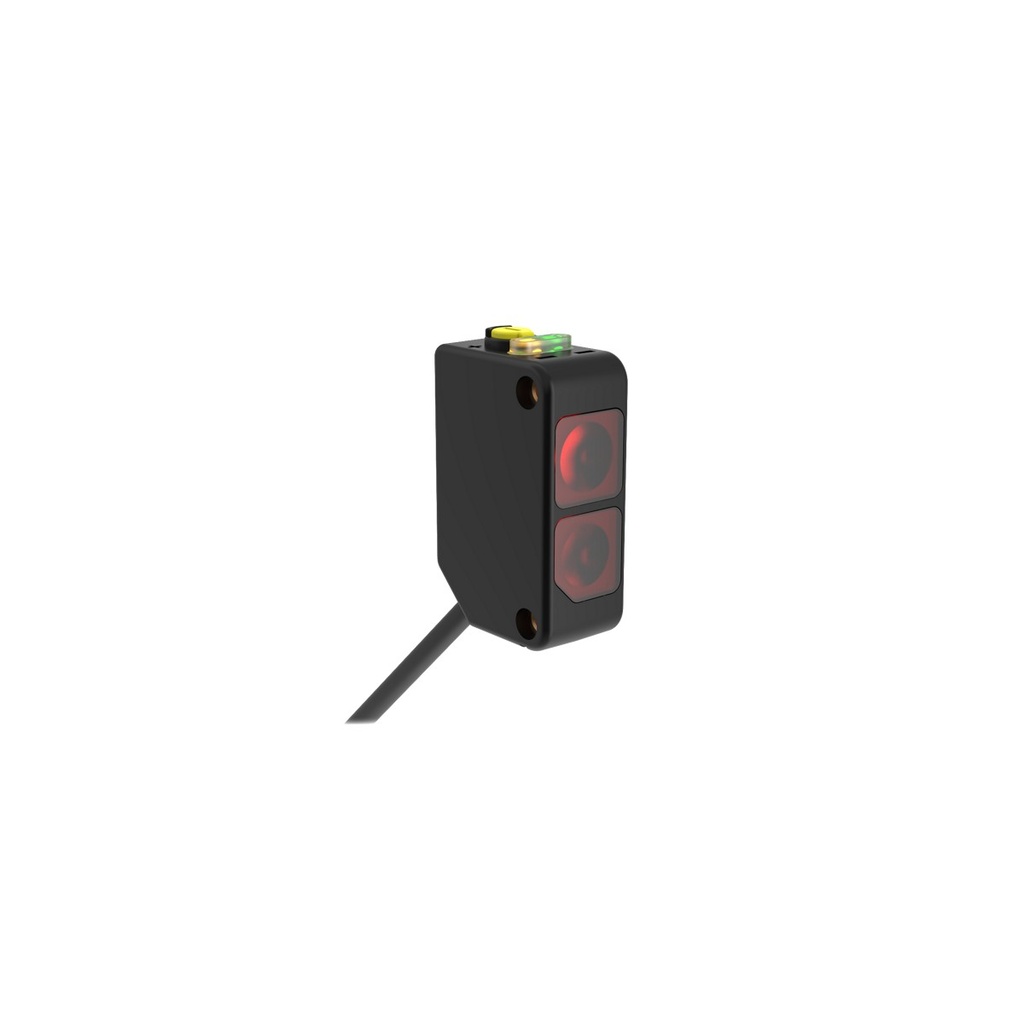

Photo sensor Q20NDXL, diffuse 1.5 m, infrared, NPN NO/NC, 10-30VDC, 2 m cable

Q20NDXL is a Banner Q20 series long-range diffuse photo sensor with an infrared beam. It detects objects by the light they reflect back, up to 1.5 m from the sensor, and has both a Light Operate and a Dark Operate NPN output.

• Sensing range: 1500 mm, adjustable
• Output: complementary NPN, Light Operate and Dark Operate
• Response: 0.8 ms; repeatability 155 µs
• Supply: 10-30 V DC
• Housing: compact rectangular, thermoplastic, acrylic lens
• Environment: IP67, NEMA 4X, -20...+60 °C
• Connection: 2 m PVC cable, 4 wires

Sensitivity is set with a potentiometer.

UL and CE approved.
