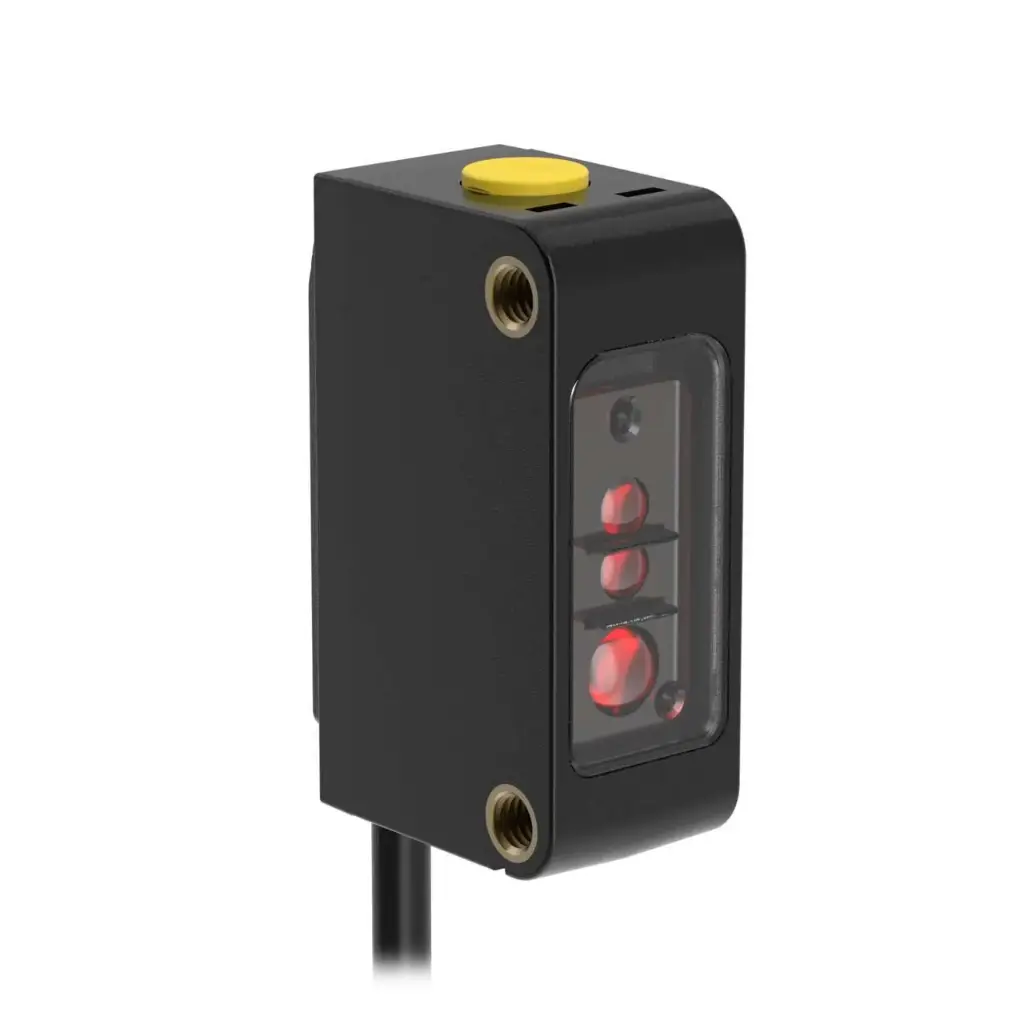

Laser distance sensor Q20-2KLAF2-Q5, 20...2000mm, IO-Link, PNP, 0.15 m cable with M12 4-pin

Q20-2KLAF2-Q5 is a Banner Q20-2 time-of-flight laser sensor with an adjustable cut-off up to 2 m. It ignores objects beyond the taught distance regardless of their colour, and IO-Link gives access to the measured distance, delay timers and diagnostics.

• Accuracy: 35 mm typical (mean of 256 samples); minimum object separation 50 mm
• Sensing range: 20...2000 mm on 90 % white card
• Outputs: channel 1 PNP and IO-Link V1.1 (Smart Sensor Profile, 38.4 kbaud); channel 2 PNP, PFM Pulse Pro or remote input; 50 mA total
• Supply: 10...30 V DC, < 35 mA; protected against reverse polarity
• Housing: compact ABS, 25.4 mm mounting hole spacing; Class 1 infrared laser 940 nm
• Environment: IP67, -20...+50 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

Four teach modes are selected with the button or remote wire: two-point background suppression (default), one-point object, one-point window (foreground suppression) and dual mode (intensity + distance). The visible red alignment LED can be switched off.

UL, CE and UKCA; FCC Part 15 Class B, ICES-003(B). Laser per IEC 60825-1:2014.
