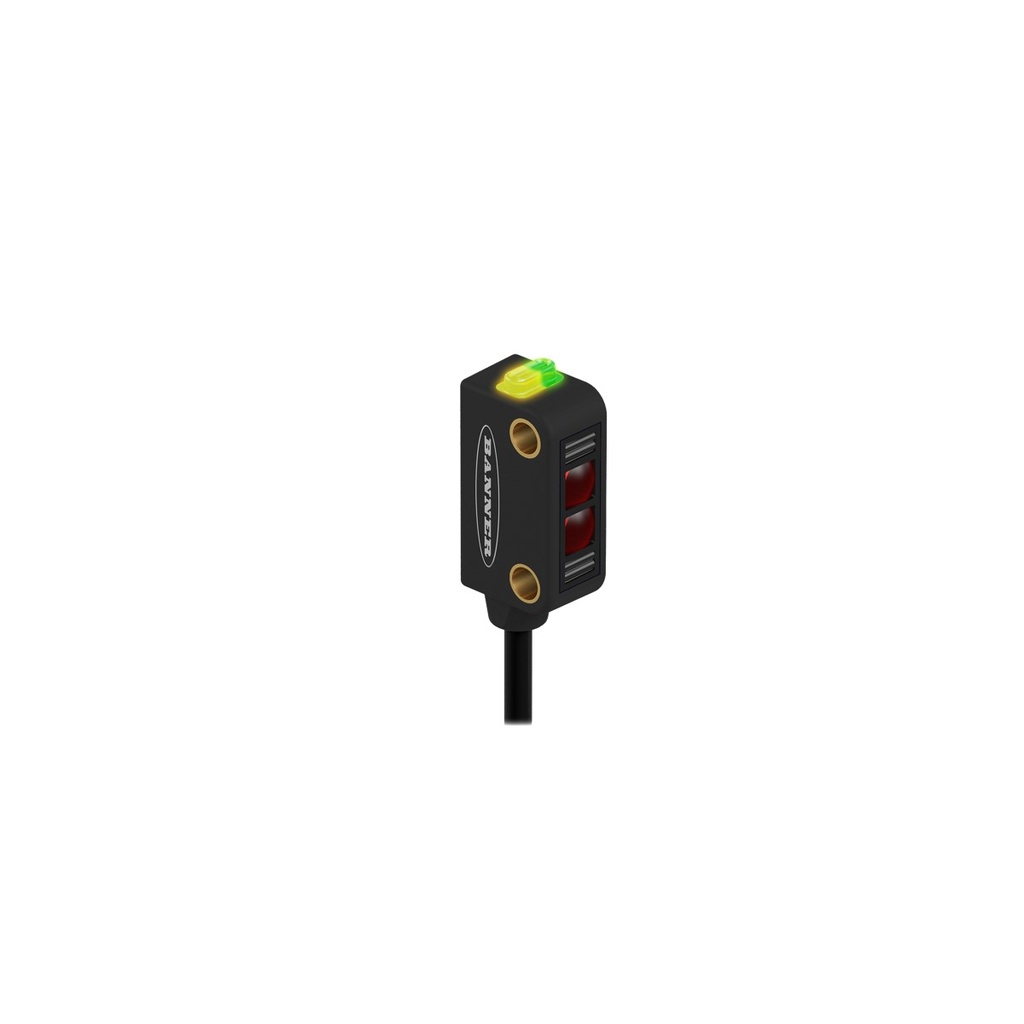

Photo sensor - receiver Q12RP6RQ3, opposed 2 m, PNP DO, 10-30VDC, 150 mm cable with M8 3-pin

Q12RP6RQ3 is the receiver of a Banner Q12 series miniature opposed-mode photo sensor pair. Its PNP output switches on when an object breaks the beam from a Q12 emitter up to 2 m away.

• Sensing range: 2 m with a Q12 emitter
• Output: 1 PNP, Dark Operate
• Response: 1.3 ms ON, 0.9 ms OFF; repeatability 175 µs
• Supply: 10-30 V DC
• Housing: miniature rectangular, thermoplastic, polycarbonate lens
• Environment: IP67, -20...+55 °C
• Connection: 150 mm cable with M8 male connector, 3-pin

Needs a Q12 emitter, ordered separately. UL, CE and UKCA approved.
