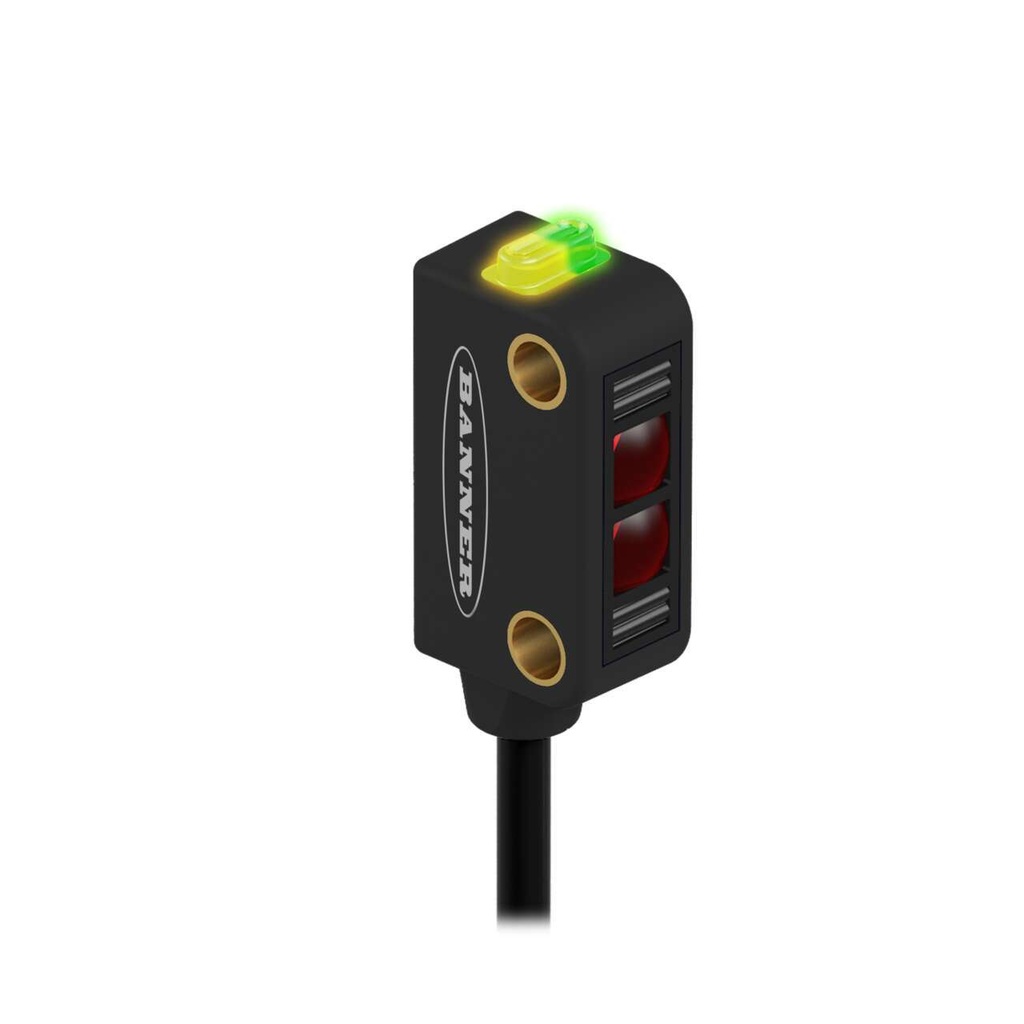

Photo sensor - receiver Q12AB6R, opposed 2 m, PNP/NPN, 10-30VDC, 2 m cable

Q12AB6R is the receiver of a Banner Q12 series opposed-mode pair and works with a Q12 emitter with a visible red 640 nm beam.

• Sensing range: 2 m with a Q12 emitter, effective beam 5.7 mm
• Output: bipolar, one PNP and one NPN, Light Operate, 50 mA
• Response: 1.3 ms ON, 900 µs OFF; repeatability 125 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: polyamide, polycarbonate lens, 8 mm thick
• Environment: IP67, -20...+55 °C
• Connection: 2 m PVC cable, 4 wires

A green LED indicator shows power; the amber one shows the received signal and flashes when the signal is marginal.
