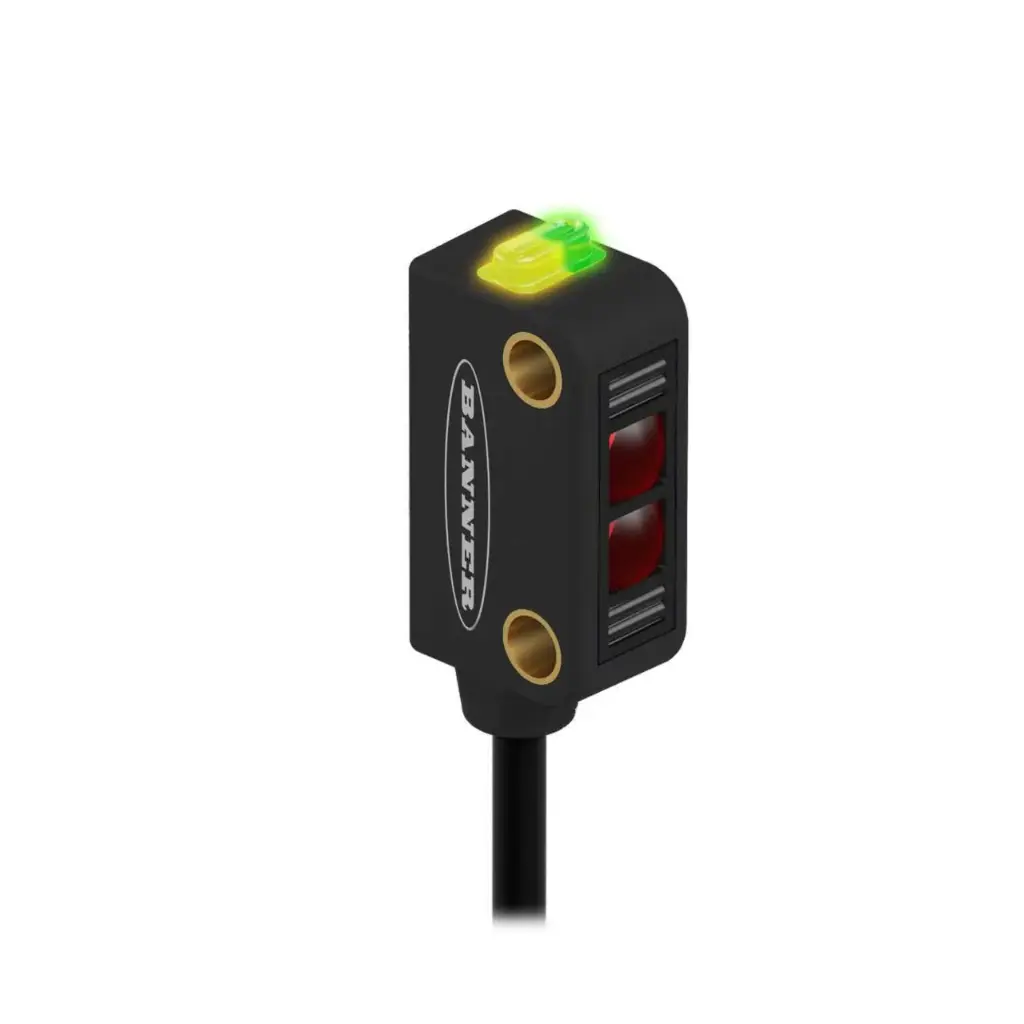

Photo sensor Q12AB6FF50, fixed-field 50 mm, PNP/NPN, 10-30VDC, 2 m cable

Q12AB6FF50 is a Banner Q12 series fixed-field photo sensor with a visible red 640 nm beam and a 50 mm cutoff. Objects closer than the cutoff are detected regardless of colour; the background beyond it is ignored.

• Sensing range: 50 mm cutoff, focus at 16 mm
• Output: bipolar, one PNP and one NPN, Light Operate, 50 mA
• Response: 850 µs ON/OFF; repeatability 125 µs
• Supply: 10-30 V DC, < 20 mA
• Housing: polyamide, polycarbonate lens, 8 mm thick
• Environment: IP67, -20...+55 °C
• Connection: 2 m PVC cable, 4 wires

A green LED indicator shows power; the amber one shows the received signal and flashes when the signal is marginal.
