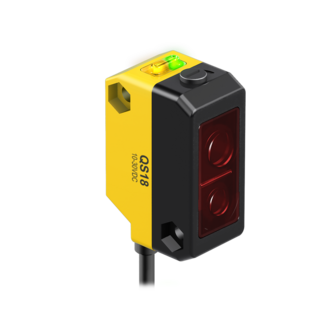

Photo sensor QS18VP6AFF200Q5, foreground suppression 30-200 mm, PNP, NO/NC, 10-30VDC, M12 4-pin 150 mm cable

QS18VP6AFF200Q5 is a Banner QS18 series photo sensor with adjustable foreground suppression and a visible red 640 nm LED beam. It is aimed at a fixed background up to 200 mm away and switches when an object blocks the light coming back from that background, whatever the object's colour or shape.

• Sensing range: cutoff adjustable 30-200 mm, objects detected up to the sensor face
• Output: complementary PNP, Light Operate and Dark Operate, 100 mA total
• Response: 2.8 ms ON/OFF; repeatability 250 µs
• Supply: 10-30 V DC, < 16 mA
• Housing: ABS, acrylic lens
• Environment: IP67, NEMA 6, -20...+55 °C
• Connection: 150 mm PVC cable with M12 4-pin male connector

Typical use is a sensor above a conveyor belt: the belt is the background, and boxes of any colour are detected once they are taller than the minimum separation, more than 10 mm on a black belt at 200 mm. The cutoff is set with a five-turn adjustment screw.
