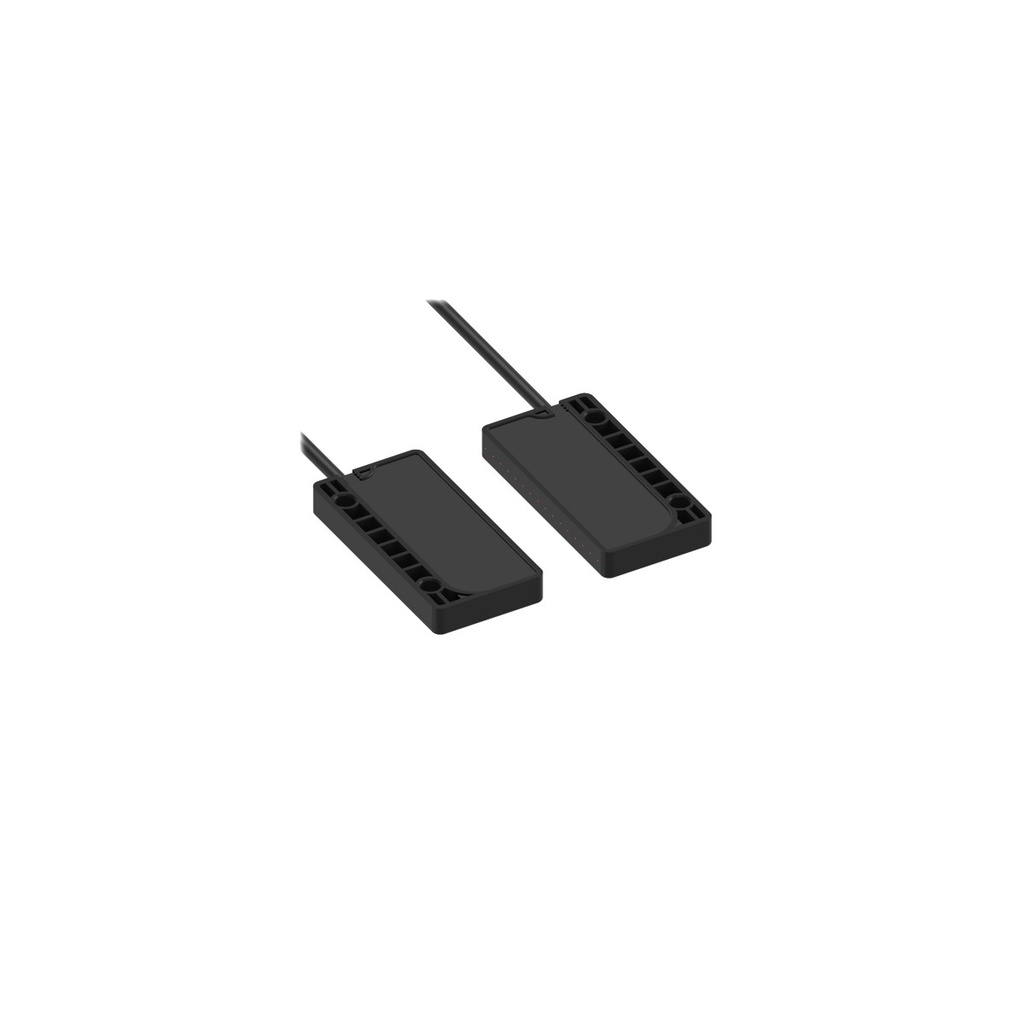

Optical fibre PIRS1X166UMPMAL, plastic, opposed array 33.5 mm, 16 cores, side view, 2 m

PIRS1X166UMPMAL is a Banner plastic fibre-optic array for opposed mode: the rectangular sensing head carries 16 fibre cores of Ø0.25 mm side by side along 33.5 mm, so a small object anywhere along the array interrupts the light. The beam exits from the side of the head.

• Range: DF-G1 680 mm, D10D 1000 mm, D10B 300 mm, D10A 260 mm
• Array: 33.5 mm, 16 x Ø0.25 mm cores, side view, rectangular head
• Fibre: length 2 m, unterminated; supplied as a pair
• Material: acrylic (PMMA) core, polyethylene jacket and head
• Temperature: -30...+70 °C

The control ends are unterminated and are cut to length with the PFC-4 cutter supplied with the fibre. The acrylic core is damaged by acids, strong alkalis and solvents; Banner recommends plastic fibres for visible-light sensors only.
