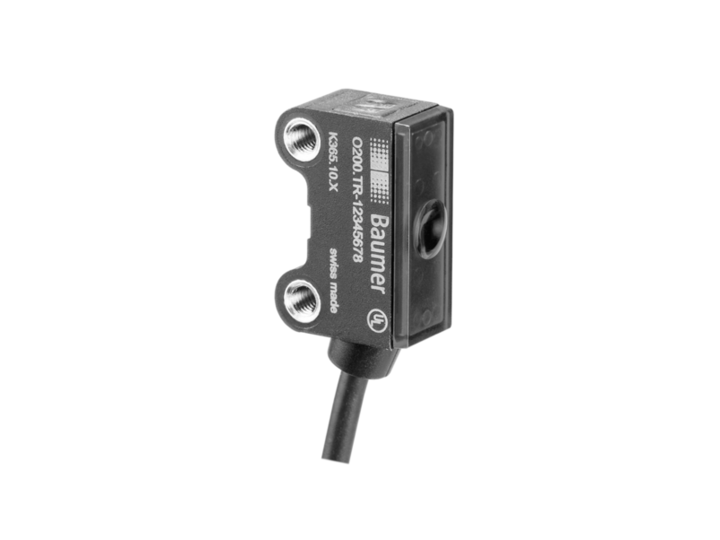

Photo sensor - emitter O200.TR-ZZZX.72CV/H006, through-beam 5m, 10-30VDC, test input, 2m cable, IP67

O200.TR-ZZZX.72CV/H006 is the emitter half of a Baumer O200 miniature through-beam pair, with a pulsed red LED at 644 nm and a 6 m nominal range. A test input switches the transmitter diode off, so the receiver channel can be verified from the controller without anyone reaching into the machine.

• Range: actual 5 m, nominal 6 m
• Light source: pulsed red LED, 644 nm
• Alignment: optical axis deviation < 1.5°, green power-on indicator
• Supply: 10...30 VDC, typ. 16 mA at 24 VDC
• Housing: rectangular 8 x 25.1 x 14.1 mm, ASA plastic, PMMA optics, M3 stainless steel threaded sleeves
• Environment: IP 67, -25...+50 °C
• Connection: 2 m PVC cable, 4-wire

A visible red beam is aligned by eye, which is the practical difference from the laser emitters in the same series over long spans. The emitter is used with an O200 through-beam receiver, which carries the switching output - the emitter has none of its own.
