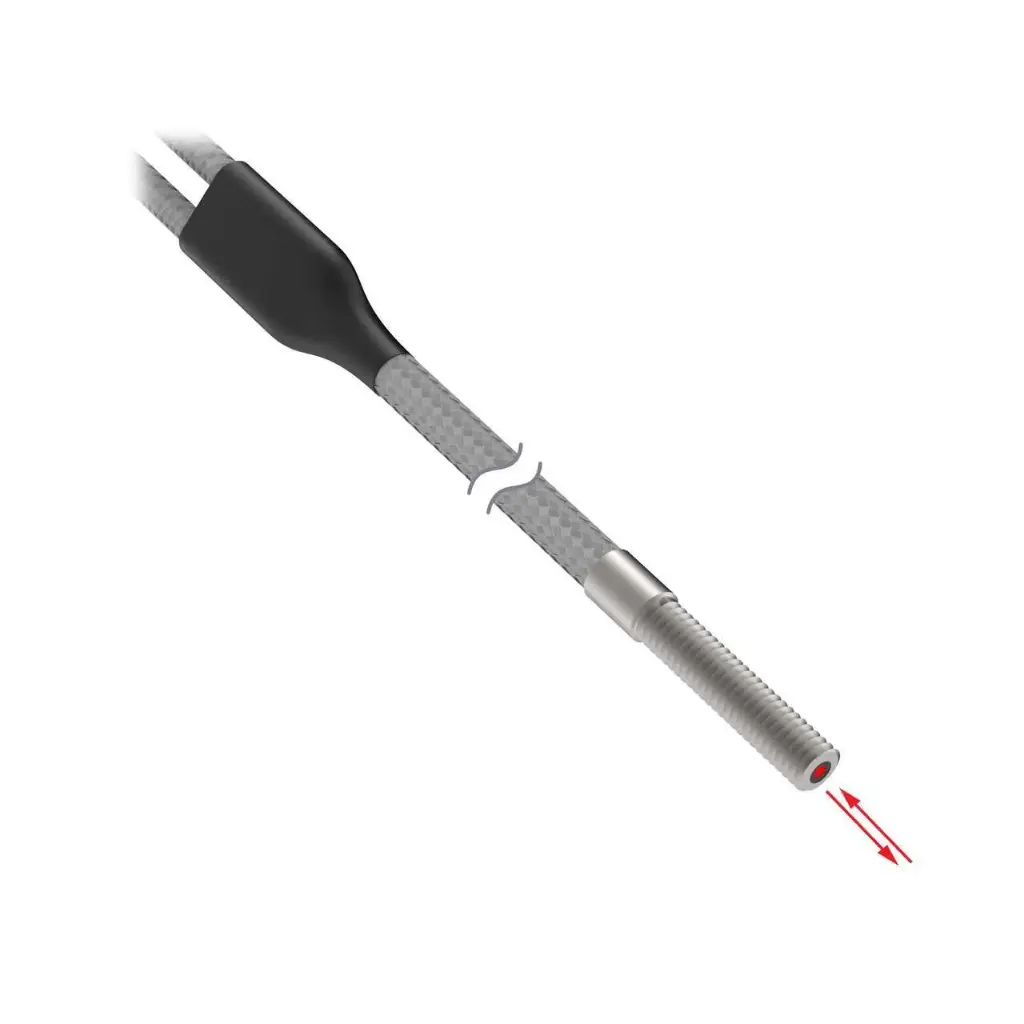

Optical fibre PBCT23TMB5M4, plastic, diffuse, coaxial, M4 tip, SteelSkin, 1 m

PBCT23TMB5M4 is a Banner coaxial plastic fibre for diffuse mode: a 0.5 mm central core is surrounded by 9 cores of 0.25 mm in an M4 threaded stainless steel tip. The fibre is sheathed in SteelSkin, a stainless steel braid over a monocoil.

• Range: DF-G1 80 mm
• Fibre: 0.5 mm + 9 x 0.25 mm cores, length 1 m, TMB5 terminated sensor ends
• Tip: M4 x 0.7 stainless steel, 2 jam nuts and 1 lock washer included
• Sheath: SteelSkin stainless steel braid, Ø3.6 mm; branches Ø2.9 mm
• Bend radius: at least 12 mm; max +70 °C
