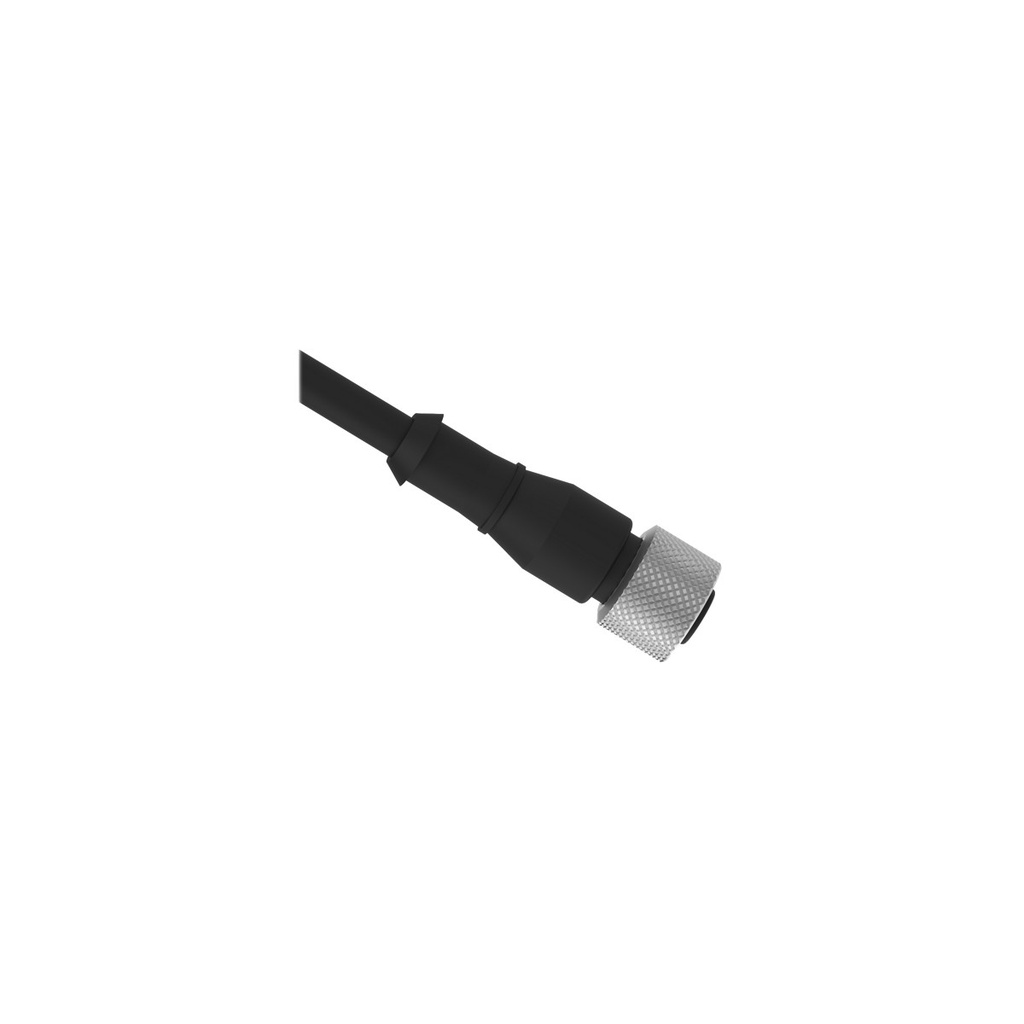

Connection cable MQDEC2-530, M12 A-coded 5-pin, female, straight, 9 m, PVC, shielded

MQDEC2-530 is a Banner single-ended cordset with a straight 5-pin M12 female connector and flying leads. The foil shield is not connected to the coupling nut and ends in an unterminated drain wire, so it is grounded at the cabinet end only.

• Connector: M12x1, female, straight, A-coded, 5 pins; nickel-plated brass coupling nut, black PUR body
• Cable: 9 m, black PVC, Ø 5.7 mm, 5 x 22 AWG, foil shield 100 % with 22 AWG drain wire
• Ratings: 4 A, 30 V; bend radius static 10x, dynamic 15x the outer diameter
• Environment: IP66, IP67, IP68, operating -40...+50 °C

UL and cUL listed (CYJV.E230439). Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
