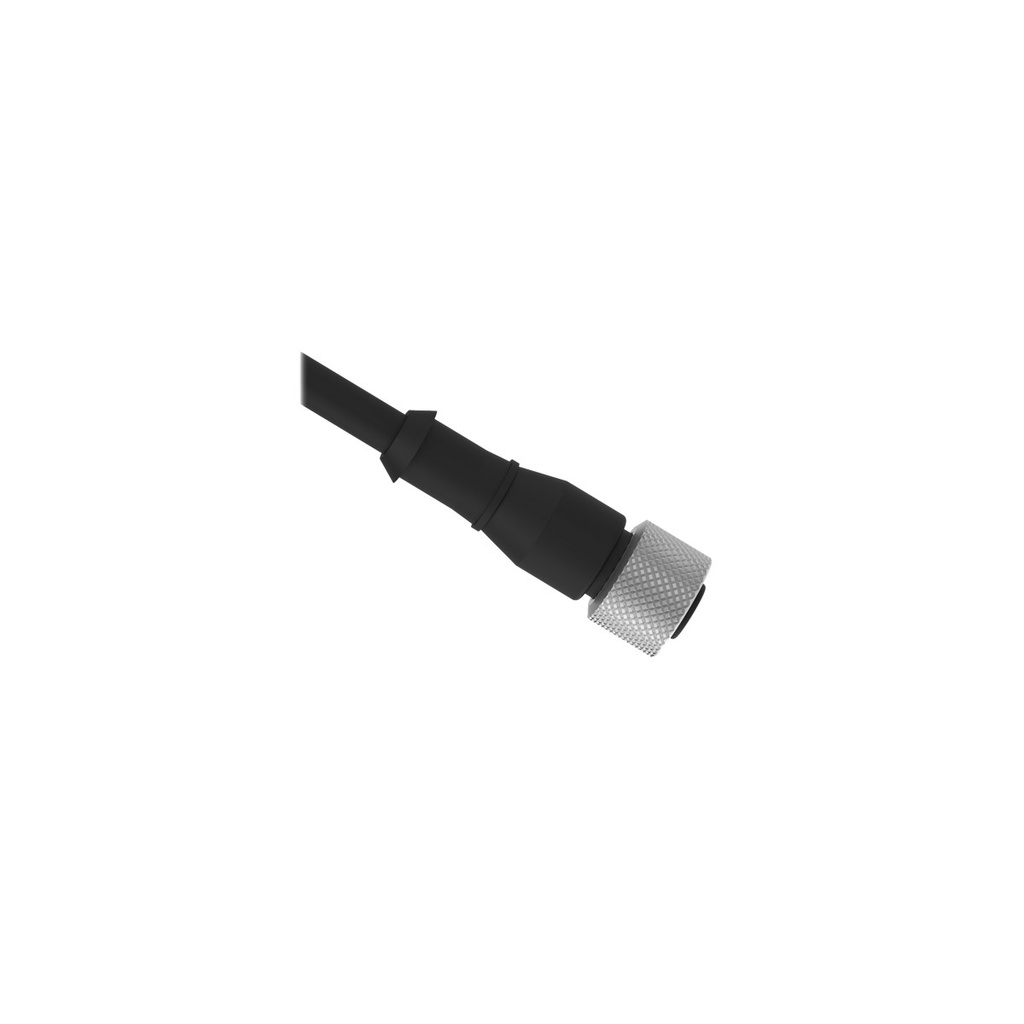

Connection cable MQDC2S-830, M12 A-coded 8-pin, female, straight, 10 m, PVC, shielded

MQDC2S-830 is a Banner single-ended cordset with a straight 8-pin M12 female connector and flying leads. The cable shield floats to a drain wire and is not connected to the coupling nut.

• Connector: M12x1, female, straight, A-coded, 8 pins; nickel-plated brass coupling nut, black PUR overmold
• Cable: 10.04 m, black PVC, Ø 5.59 mm, 8 x 24 AWG, shielded with drain wire
• Ratings: 2 A, 30 V DC
• Environment: IP67, -40...+70 °C

UL (CYJV/CYJV7) and CE marked.
