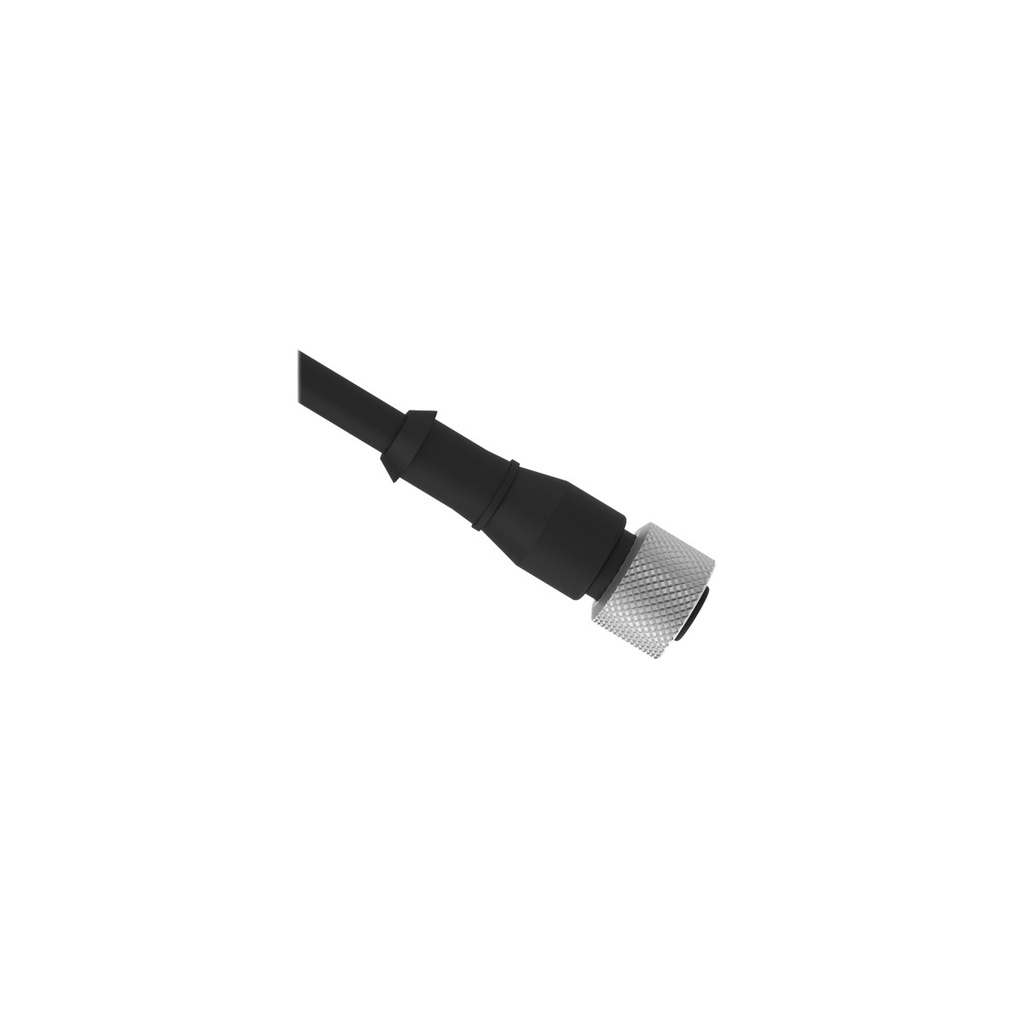

Connection cable MQDC1-506, M12 A-coded 5-pin, female, straight, 2 m, PVC

MQDC1-506 is a Banner single-ended M12 cordset with a straight 5-pin female connector and open wire ends for terminal blocks or a controller.

• Connector: M12x1, female, straight, A-coded, 5-pin; length 2 m
• Cable: black PVC, 22 AWG, Ø 5.59 mm, unshielded
• Ratings: 4 A, 30 V
• Coupling nut: nickel-plated brass
• Environment: IP66, IP67, IP68, -40...+70 °C

Wire colours: brown 1, white 2, blue 3, black 4, grey 5. Bend radius more than 10x the cable diameter.
