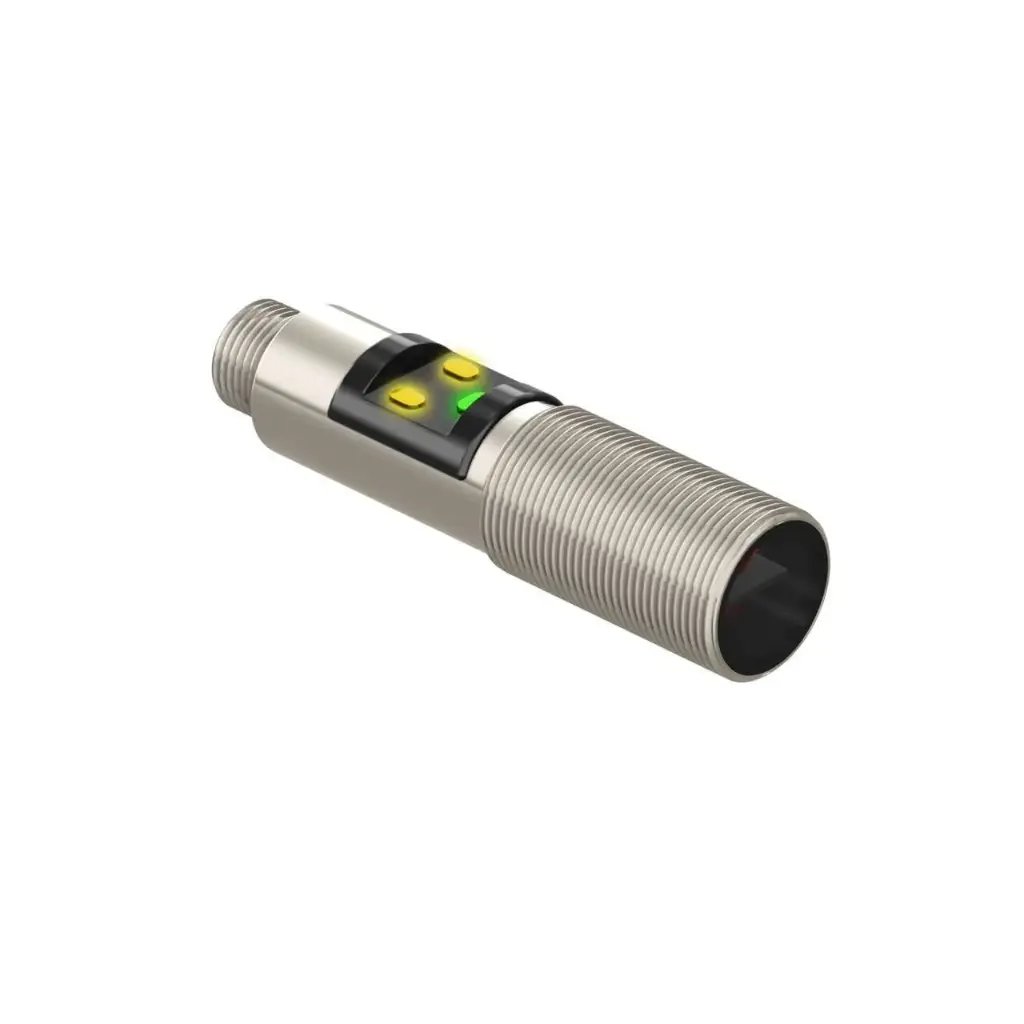

Photo sensor - emitter M18-4NAES-Q8, opposed 25 m, 10-30VDC, stainless steel, M12 4-pin

M18-4NAES-Q8 is the emitter of a Banner M18-4 series opposed-mode pair in an M18 stainless steel barrel, with a visible red beam and a 25 m range with an M18-4 receiver. Emitter power is set with a 250° potentiometer.

• Range: 25 m with an M18-4 receiver, effective beam 15.2 mm
• Supply: 10-30 V DC up to +55 °C, 10-24 V DC above; 17 mA
• Housing: M18 316L stainless steel barrel, PMMA window
• Environment: IP67, IP68, IP69K, -40...+70 °C
• Connection: integral M12 4-pin male connector

A green LED indicator shows power.

Vibration and shock per MIL-STD-202F, methods 201A and 213B. ECOLAB chemical compatibility certified.
