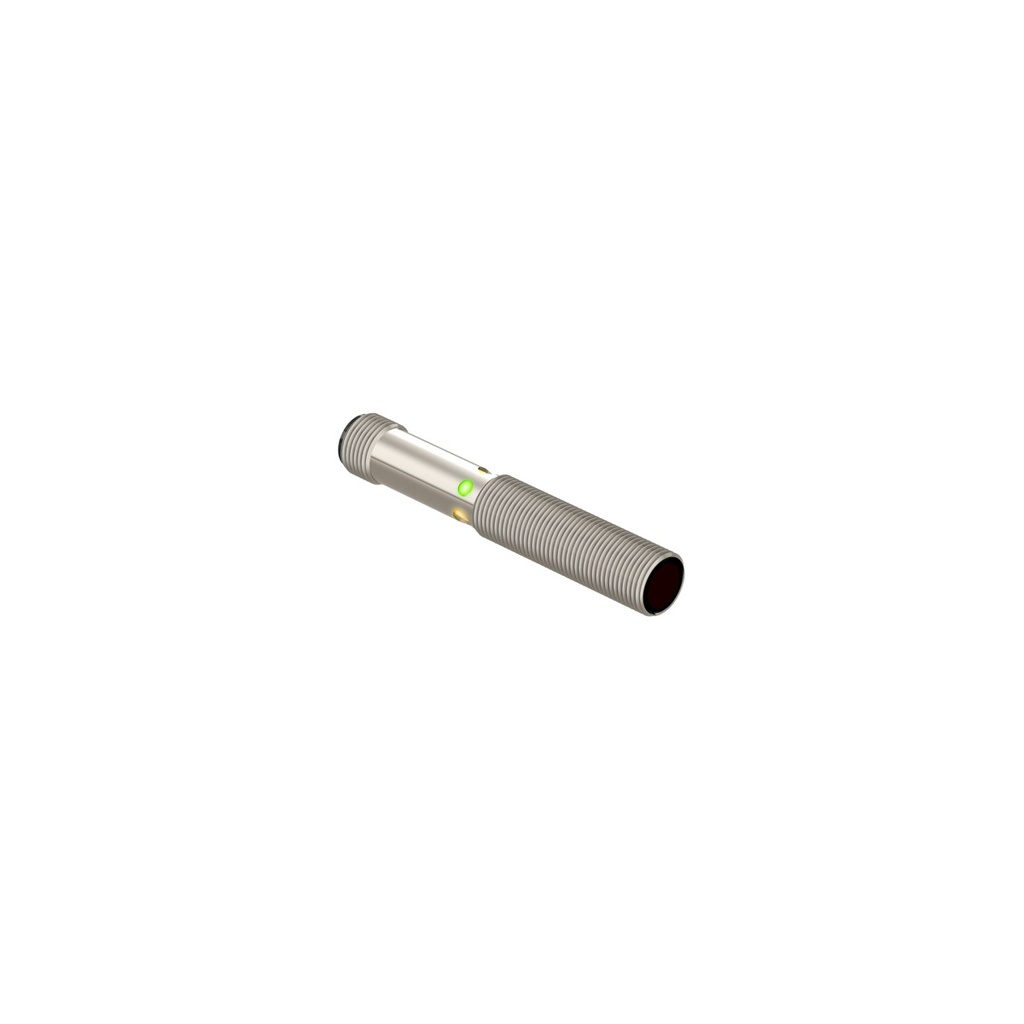

Photo sensor - emitter M12EQ8, opposed 5 m, visible red, 10-30VDC, M12 4-pin, IP68

M12EQ8 is the emitter of a Banner M12 series opposed-mode photo sensor pair, in a 12 mm nickel-plated brass barrel. Its visible red 660 nm beam reaches an M12 series receiver up to 5 m away; the emitter itself has no output.

• Sensing range: 5 m with an M12 series receiver
• Output: none (emitter)
• Supply: 10-30 V DC
• Housing: M12 threaded barrel, nickel-plated brass, PMMA lens, encapsulated
• Environment: IP67, IP68, NEMA 4X, -20...+60 °C
• Connection: integral M12 male connector, 4-pin

Needs an M12 series receiver, ordered separately. CE approved.
