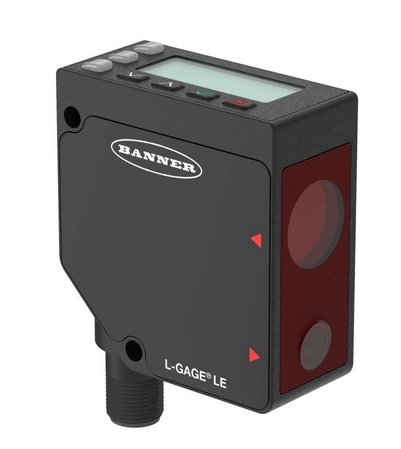

Laser distance sensor LE550IQ, 100...1000mm, 4-20mA, PNP/NPN, M12 5-pin

LE550IQ is a Banner L-GAGE LE550 triangulation laser displacement sensor with a 4-20 mA analog output and one configurable NPN/PNP discrete output. A two-line display shows the live distance and the analog value in Run mode.

• Accuracy: analog linearity ±4.5 mm (0.5 % of full scale); resolution < 0.5 mm (100...600 mm), < 1 mm (600...1000 mm)
• Measuring range: 100...1000 mm, minimum window 10 mm
• Outputs: analog 4-20 mA; discrete NPN/PNP configurable, 100 mA; response 2...50 ms
• Supply: 12...30 V DC, < 70 mA at 24 V DC
• Housing: die-cast zinc, acrylic window; Class 2 red laser 650 nm
• Environment: IP67, -20...+55 °C
• Connection: rotatable M12 5-pin connector

Repeatability holds on targets from shiny metal to black rubber. Allow 10 minutes of warm-up for best performance.

Vibration per MIL-STD-202G method 201A and IEC 60947-5-2. UL and CE.
