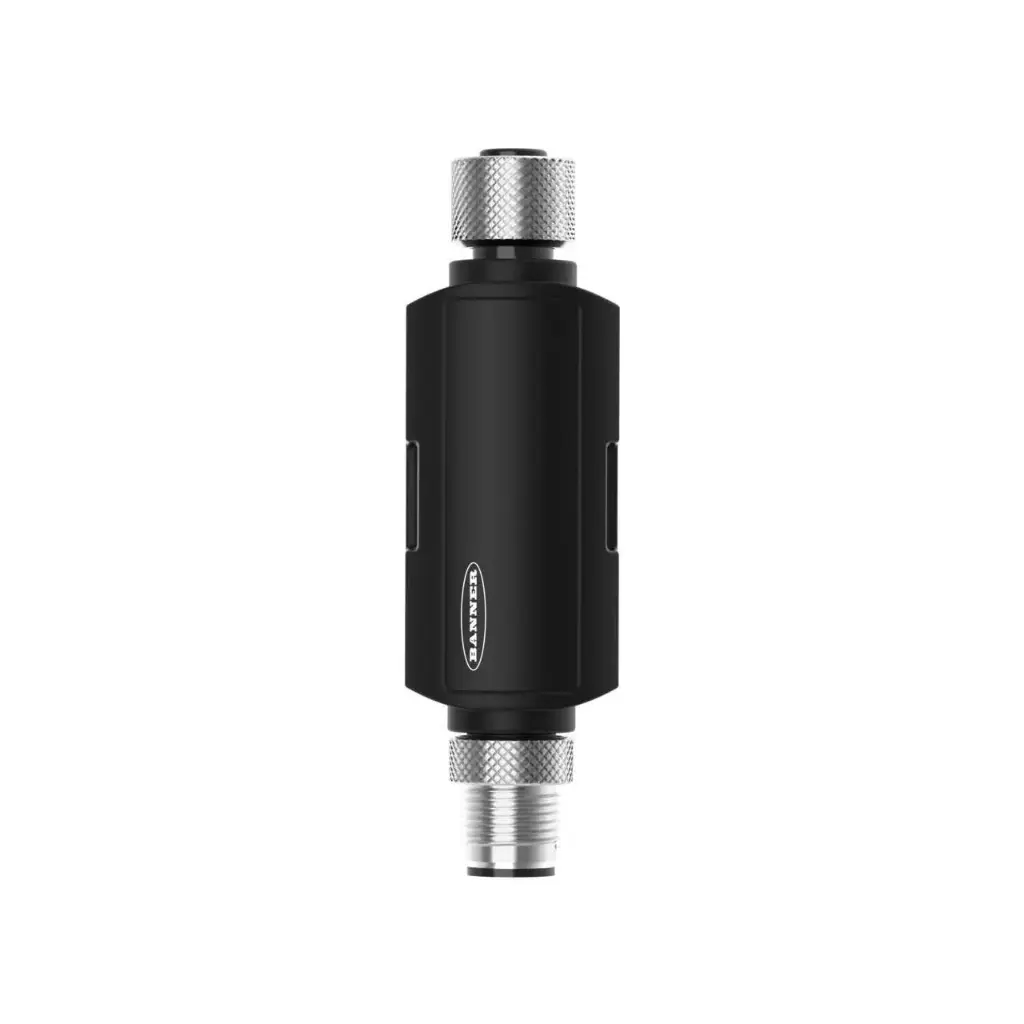

LED controller LC25C-WLF12-RGB7Q, for WLF12 Pro, 3 inputs, PWM/PFM, 12-30VDC, IP68, M12 male/female

LC25C-WLF12-RGB7Q is a Banner LC25 in-line controller that sits between a PLC and a WLF12 Pro flexible multicolor strip light. It converts discrete, PWM or PFM signals into colors, animations, levels or counters on the strip.

• Inputs: 3 discrete inputs, 12...30 V DC; PWM 0...100 % or PFM 100...10 000 Hz
• Modes: machine status, tower light, timer, counter, distance, gauge - set in Pro Editor
• Supply: 12...30 V DC, max. 30 mA (strip supplied separately)
• Housing: translucent black PVC, nickel-plated brass coupling, 25 x 85 mm
• Environment: IP65, IP67, IP68, -40...+50 °C
• Connection: integral 4-pin M12 male and female connectors

Required for WLF12 Pro: the strip must be no more than 3.05 m from the controller, and 24 V applied directly to the strip destroys it. The strip length is taught once by remote input or in Pro Editor.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
