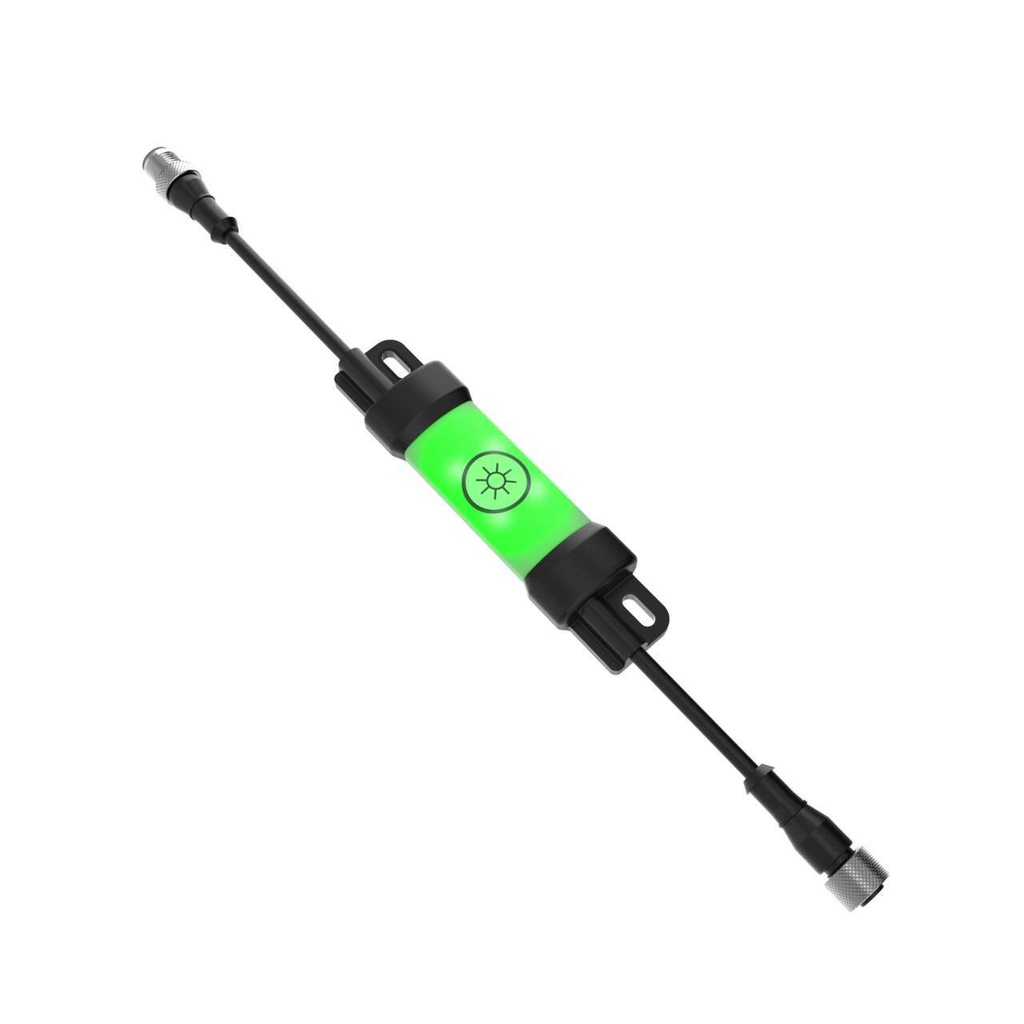

Touch switch LC15T-127AL2RGQP, in-line, on/off, red/green, 4 A, 12-30VDC, IP67, M12 male/female

LC15T-127AL2RGQP is a Banner LC15T series capacitive touch switch that sits in an M12 line between the supply and a DC device. A single touch switches the output on (green) or off (red).

• Function: on/off, red = off, green = on
• Pass-through current: max. 4 A
• Supply: 12...30 V DC, 11 mA typical at 24 V
• Housing: polycarbonate, polyamide end caps, Ø15 x 126.9 mm, slots for M4 screws
• Environment: IP66, IP67, IK06, -40...+60 °C
• Connection: 150 mm PVC cables with 4-pin M12 male (input) and female (output)

Switches any DC device that takes constant power on pins 1 and 3, such as a Banner LED work light, without a separate switch box.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (15 G, 11 ms).
