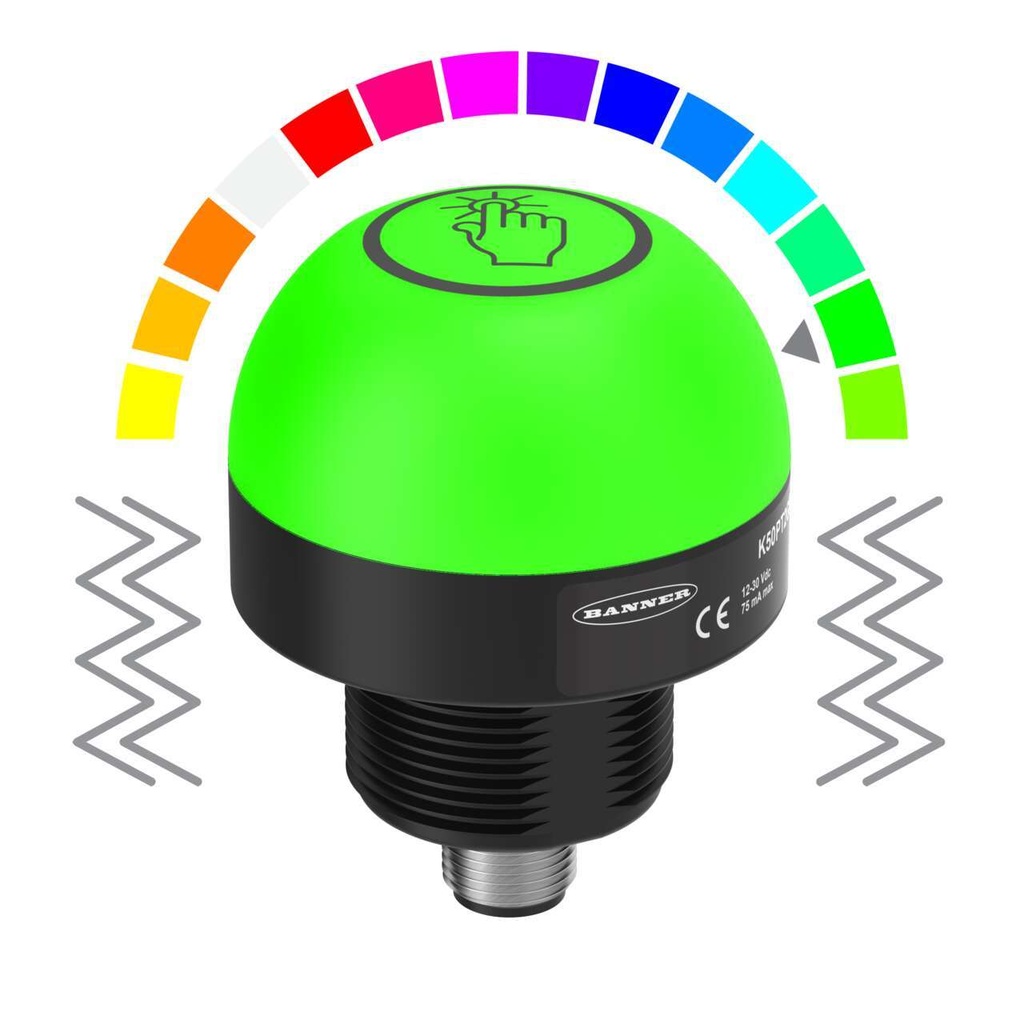

Touch button K50PTVKQ, RGB, vibration feedback, IO-Link, 18-30VDC, IP69K, M30, M12 4-pin

K50PTVKQ is a Banner K50 Pro series 50 mm touch button with an RGB indicator, vibration feedback on touch and IO-Link control. The touch state is reported to the controller, which also sets color, animation and output logic.

• Indicator: 14 default colors plus custom colors
• Vibration feedback: steady or pattern, max. 3 s per touch, 500 000 cycles
• Communication: IO-Link COM2 (38.4 kbps), process data 2 bytes in, 10 bytes out
• Function: NO or NC, momentary or latching, on/off delay 0...60 000 ms
• Supply: 18...30 V DC, 93 mA typical at 24 V
• Housing: polycarbonate, M30x1.5 thread, Ø50 x 66 mm; IP67, IP69K, -40...+50 °C
• Connection: integral 4-pin M12 male connector

Needs an IO-Link master port. The vibration gives the operator a confirmation that can be felt through gloves.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
