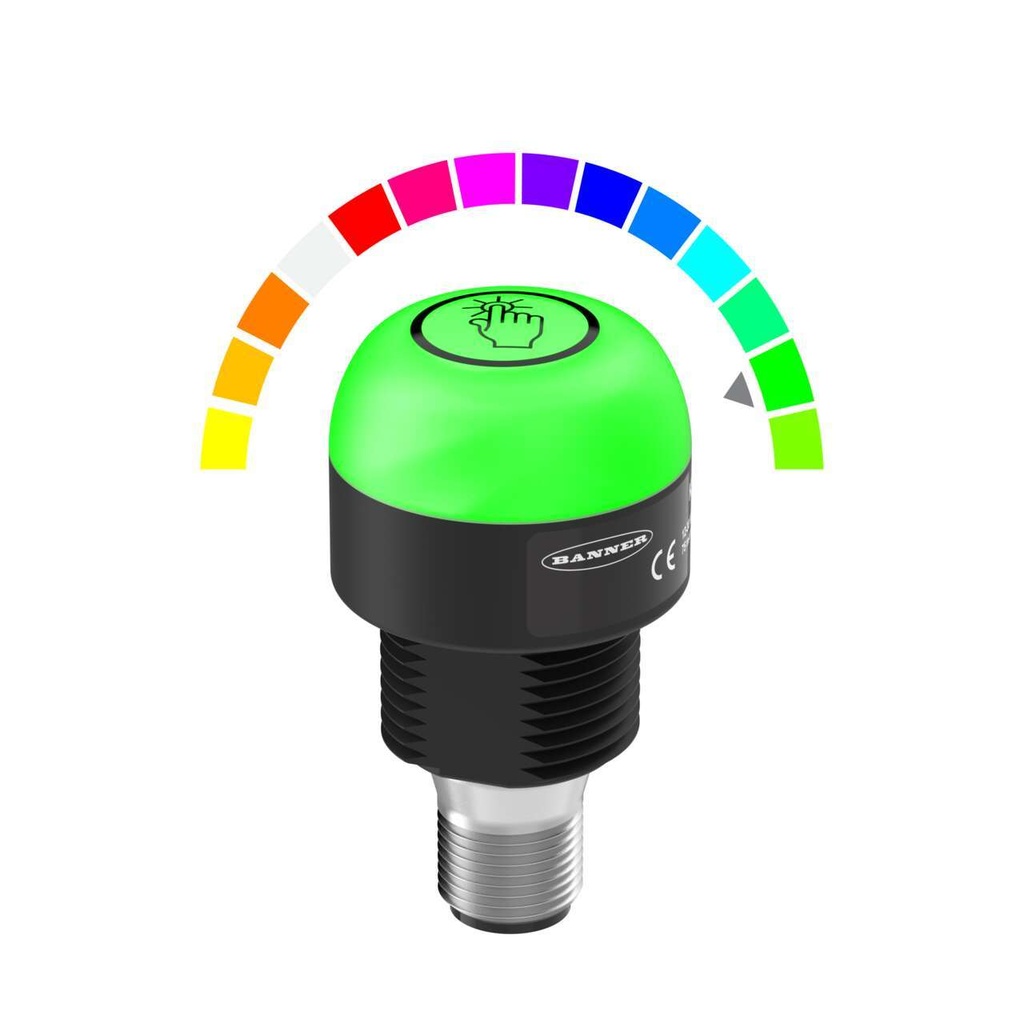

Touch button K30PTALGRY3Q, programmable RGB green/yellow/red, latching, bipolar NO, 12-30VDC, IP69K, M22, M12 5-pin

K30PTALGRY3Q is a Banner K30 Pro series 30 mm touch button with an RGB indicator and a latching output. Two inputs select green, yellow or red; colors, animation, output logic and touch sensitivity are changed with Pro Editor software.

• Colors (default): green 522 nm (7.7 lm), yellow 576 nm (7.8 lm), red 620 nm (3.1 lm); up to 14 colors via Pro Editor
• Output: bipolar, normally open, latching, max. 100 mA; input response 40 ms, output 300 ms
• Supply: 12...30 V DC, 80 mA at 12 V, 40 mA at 24 V
• Housing: polycarbonate base, dome and nut, M22x1.5 thread, Ø30 x 54.5 mm
• Environment: IP67, IP69K, -40...+50 °C
• Connection: integral 5-pin M12 male connector

Programming needs the Pro Converter Cable and Pro Editor. The M22 base fits a standard 22 mm push-button hole.

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (30 G, 11 ms).
