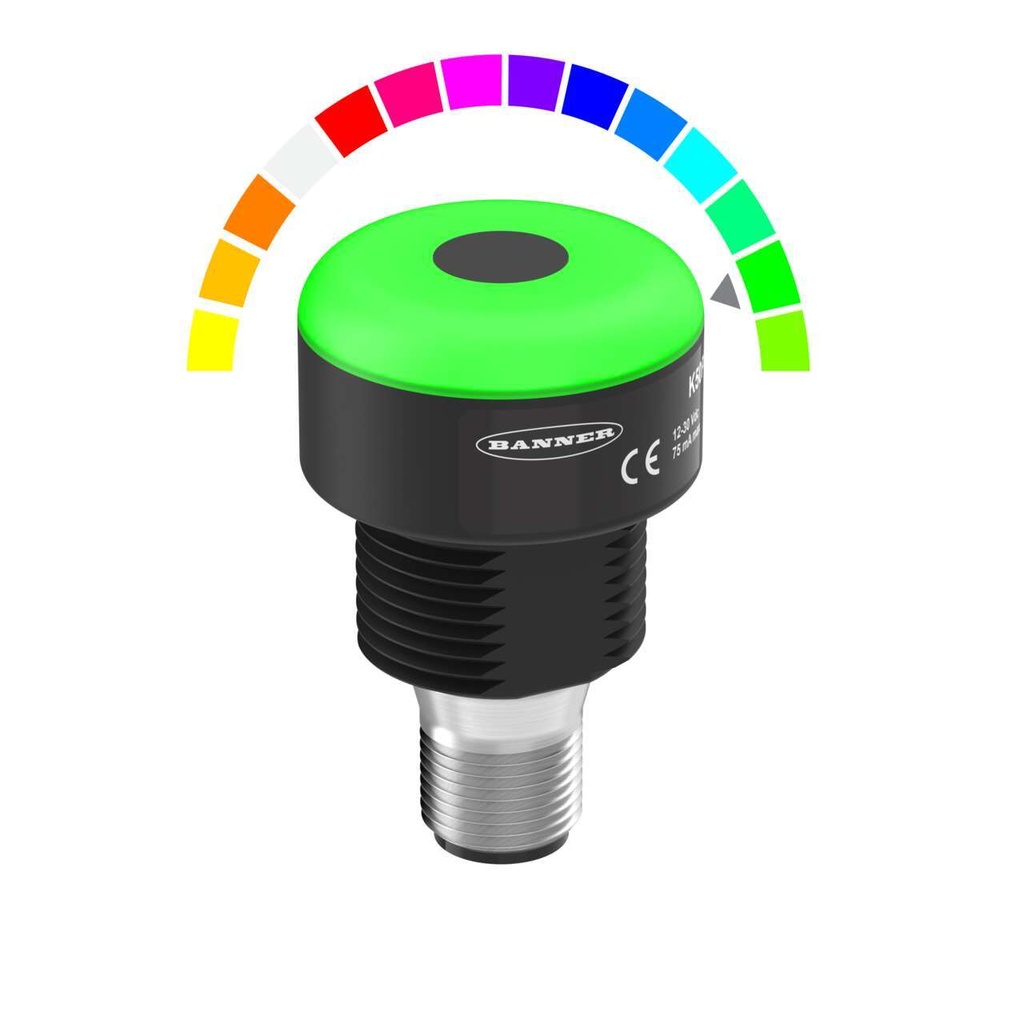

Optical button K30PAF100AMGRY3Q, adjustable field 100 mm, RGB, momentary, bipolar NO, 10-30VDC, IP65, M12 5-pin

K30PAF100AMGRY3Q is a Banner K30 Pro series 30 mm touchless button: an infrared adjustable-field sensor behind an RGB dome that switches when a hand or object comes within the taught distance, up to 100 mm, and ignores what lies beyond it.

• Sensing: adjustable field up to 100 mm, infrared 940 nm; object, background or window teach
• Output: bipolar, normally open, momentary, max. 150 mA, response 120 ms
• Indicator: green (5.8 lm), yellow (7.9 lm), red (3.2 lm) by default; 14 colors via Pro Editor
• Supply: 10...30 V DC, 30 mA typical at 24 V
• Housing: polycarbonate base, dome and nut, M22x1.5 thread
• Environment: IP65, -20...+50 °C
• Connection: integral 5-pin M12 male connector

The switch point is taught over the remote input wire or the Pro Converter Cable button; the dome shows signal strength in green, yellow or red during teach. Allow 5 minutes warm-up for best repeatability.

Vibration per MIL-STD-202F method 201A, shock per method 213B (75 G operating).
