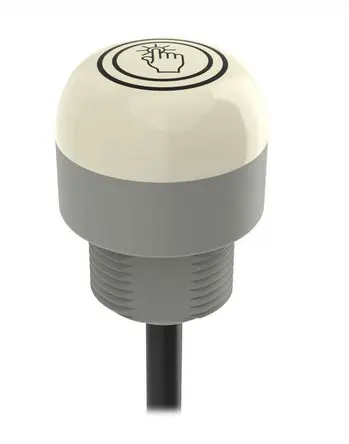

Touch button K30APT2FXRF2, red, PNP NO, 12-30VDC, 2 m cable, IP69K

K30APT2FXRF2 is a Banner K30 FDA series 30 mm capacitive touch button in FDA-grade materials for food and washdown areas. It switches when touched with a bare or gloved hand, without mechanical force; the button stays dark with power applied and lights red when its input is active.

• Colour: red when the input is active, off with power only
• Input: PNP, response 300 ms
• Output: PNP, normally open, momentary, 150 mA max, response 150 ms
• Supply: 12-30 V DC, 55 mA max
• Housing: Ø30 x 41 mm, FDA-grade copolyester, grey, M22x1.5 base mount
• Environment: IP67, IP69K, -40...+50 °C
• Connection: 2 m PVC cable, 4 wires

The button is immune to false triggering by water spray, detergents and oils.

Vibration tested to IEC 60068-2-6, shock to IEC 60068-2-27 (30 g, 11 ms). UL, CE and UKCA approved.
