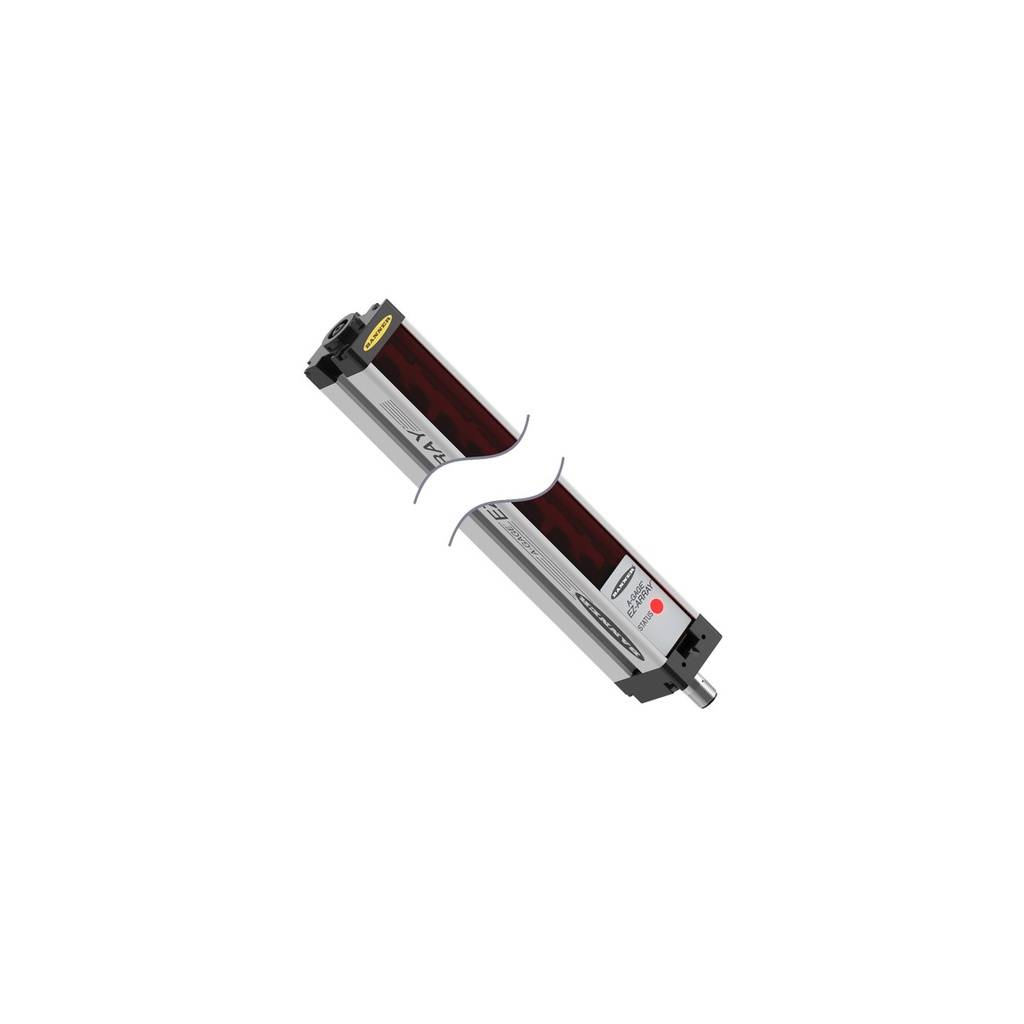

Measuring light curtain - emitter EA5E1200Q, 1200 mm, 5 mm beam pitch, 12-30VDC, M12 8-pin

EA5E1200Q is the emitter of a Banner EZ-ARRAY measuring light curtain, with a 1200 mm array of 240 infrared beams at 5 mm spacing. It is synchronised with the receiver over the cable, and all evaluation and outputs are in the receiver.

• Array: 1200 mm, 240 beams, 5 mm spacing, infrared LED
• Range: 400 mm...4 m between emitter and receiver
• Supply: 12-30 V DC, 80 mA at 24 V
• Housing: clear-anodised aluminium, acrylic lens cover; end-cap brackets and centre bracket included
• Environment: IP65, -40...+70 °C
• Connection: M12, 8-pin; cordset ordered separately

It works with an EZ-ARRAY receiver of the same length, which sets the outputs and the Modbus interface.
