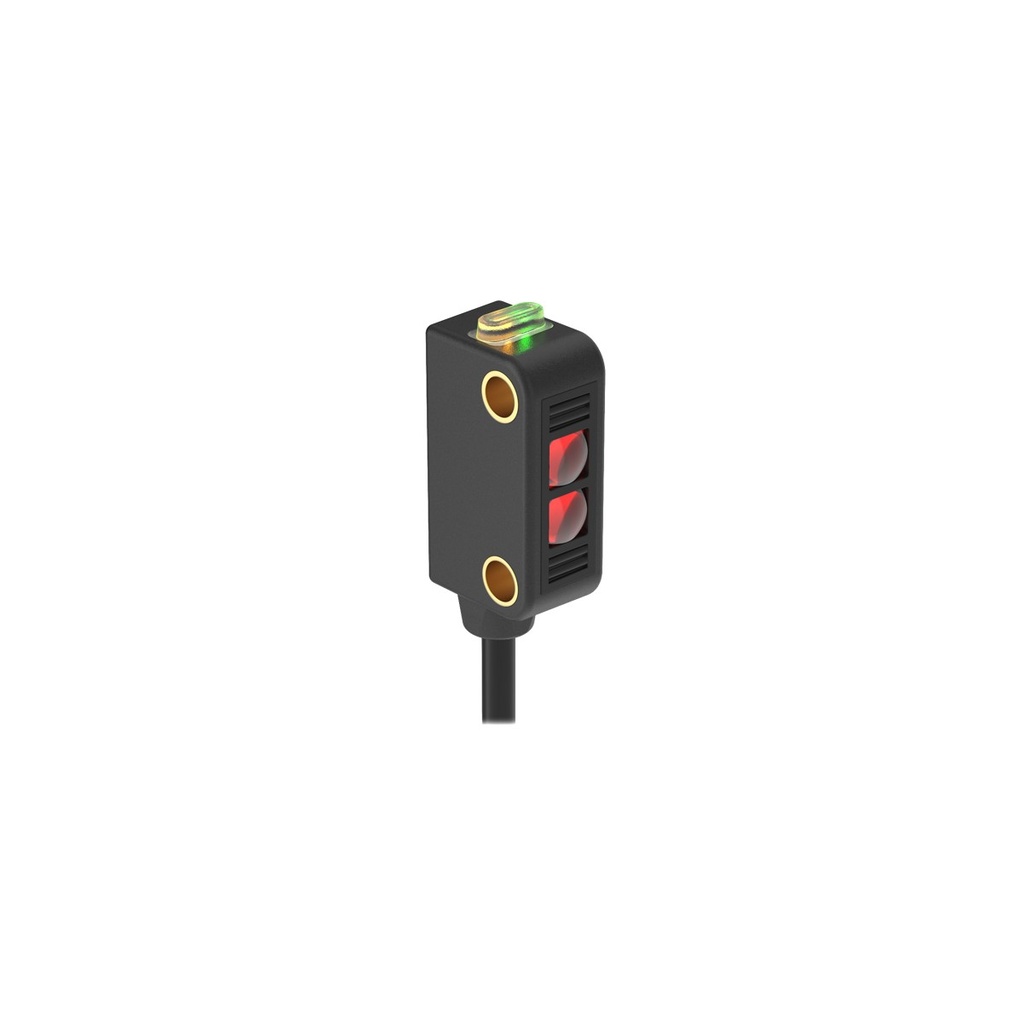

Photo sensor - receiver DQ12RB6R, opposed 3 m, PNP+NPN DO, 10-30VDC, 2 m cable

DQ12RB6R is the receiver of a Banner DQ12 series miniature opposed-mode photo sensor pair. It switches when an object breaks the beam from a DQ12 emitter up to 3 m away, with one PNP and one NPN output.

• Sensing range: 3 m with a DQ12 emitter
• Output: bipolar, 1 PNP and 1 NPN, Dark Operate
• Response: 1.3 ms ON, 0.7 ms OFF; repeatability 125 µs
• Supply: 10-30 V DC
• Housing: miniature rectangular, polyamide, polycarbonate lens
• Environment: IP67, -20...+55 °C
• Connection: 2 m PVC cable, 4 wires

Needs a DQ12 emitter, ordered separately. Dark Operate means the outputs switch on when the beam is blocked.

UL, CE and UKCA approved.
