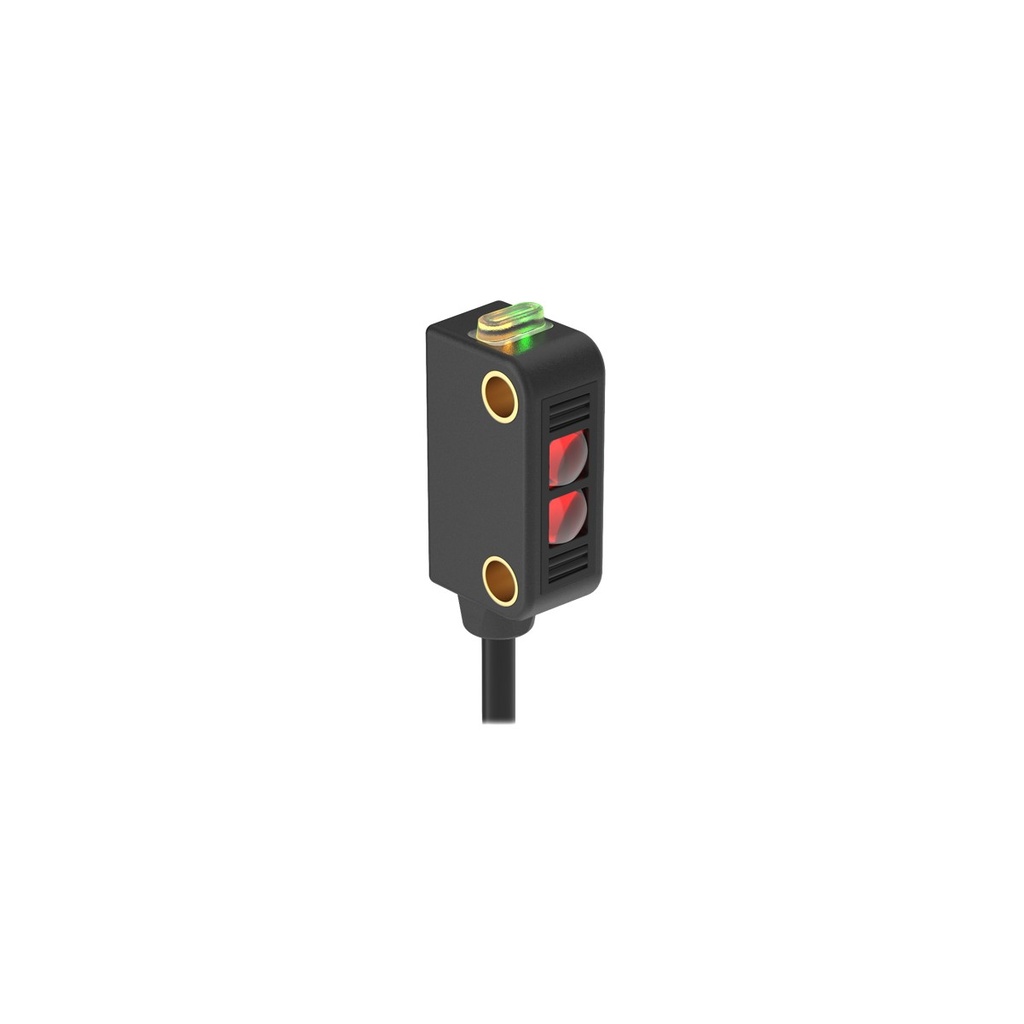

Photo sensor - emitter DQ126E, opposed 3 m, visible red, 10-30VDC, 2 m cable

DQ126E is the emitter of a Banner DQ12 series miniature opposed-mode photo sensor pair. Its visible red 645 nm beam reaches a DQ12 receiver up to 3 m away; the emitter itself has no output.

• Sensing range: 3 m with a DQ12 receiver
• Output: none (emitter)
• Supply: 10-30 V DC
• Housing: miniature rectangular, polyamide, polycarbonate lens
• Environment: IP67, -20...+55 °C
• Connection: 2 m PVC cable, 2 wires

Needs a DQ12 receiver, ordered separately. The visible red beam makes the pair easy to align by eye.

UL, CE and UKCA approved.
