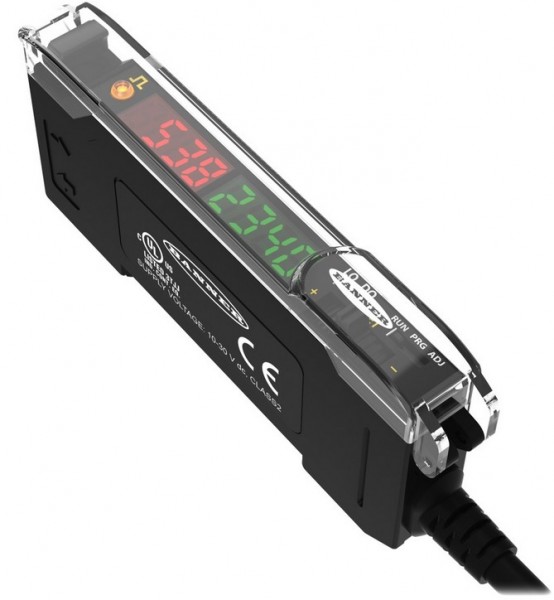

Fibre optic amplifier DF-G1-PS-Q5, dual display, PNP, 10-30VDC, DIN rail, 150 mm cable with M12 4-pin

DF-G1-PS-Q5 is a Banner DF-G1 Expert amplifier for plastic and glass fibre optic assemblies, with a single PNP output. Two 4-digit displays show the signal level in red and the threshold in green at the same time, so the margin is visible without a menu.

• Output: 1x PNP, 100 mA; response 200 µs, 500 µs, 2 ms or 5 ms by mode
• Light source: visible red, 660 nm
• Supply: 10-30 V DC, < 40 mA at 24 V (< 30 mA in ECO display mode)
• Housing: 10 mm wide, ABS/polycarbonate, for 35 mm DIN rail
• Environment: IP50, -10...+55 °C
• Connection: 150 mm PVC cable with M12 male connector, 4-pin

Teach methods are two-point, dynamic, and Light, Dark, Window or Calibration SET; Light Operate or Dark Operate is chosen with a switch on the front, and ON/OFF delays and one-shot timers are set from the menu or the remote teach wire. A 4-pin M12 cordset is needed.
