SMB30A is a Banner right-angle bracket for sensors with a 30 mm housing. The curved slot lets the sensor be turned before the screws are tightened.

• Sensor hole: Ø30.5 mm
• Mounting: M6 (¼") hardware, 40 mm hole centre spacing
• Material: 12-gauge stainless steel

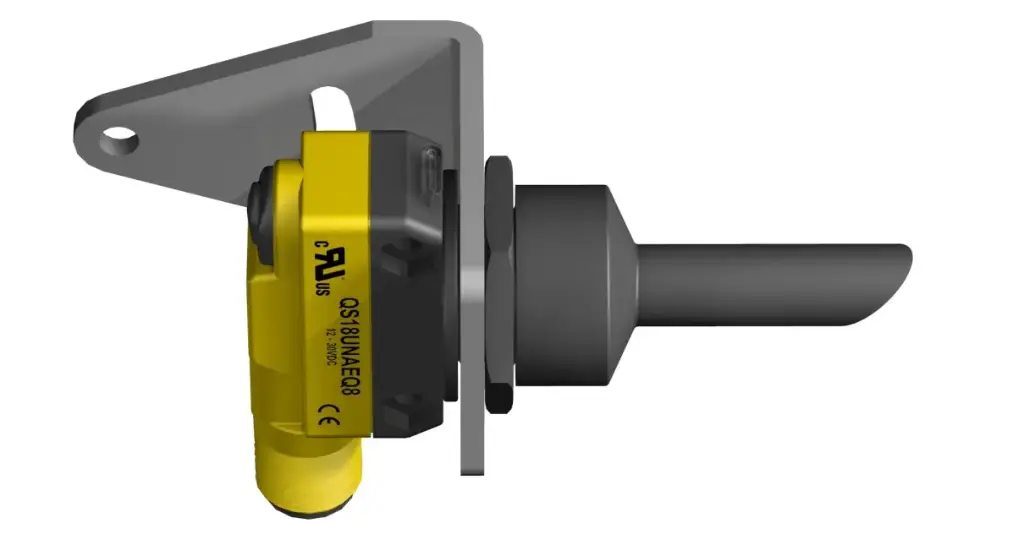

UWG18-5.0 is a Banner wave guide that threads onto the 18 mm barrel of an S18U or QS18U ultrasonic sensor and focuses the beam through a 5.0 mm bore. It lets the sensor reach into small openings and detect sheet metal edges.

• Fits: Banner S18U and QS18U ultrasonic sensors
• Bore: inside Ø 5.0 mm, outside Ø 7.0 mm
• Material: acetal
• Included: slim threaded plastic nut and gasket

Tighten the wave guide until the sensor face sits on the gasket and the bevel faces down, so debris does not collect in the opening. In high-vibration positions a little thread-locker is recommended.

PRO-KIT is a Banner kit for configuring Pro series lights and selected sensors from a PC with the Pro Editor software. It is needed for initial configuration only, not for the device's operation in the machine.

• Included: converter cable, splitter and power supply
• Software: Banner Pro Editor
• Fits: Banner Pro series lights and selected sensors

CE and UKCA compliant.
