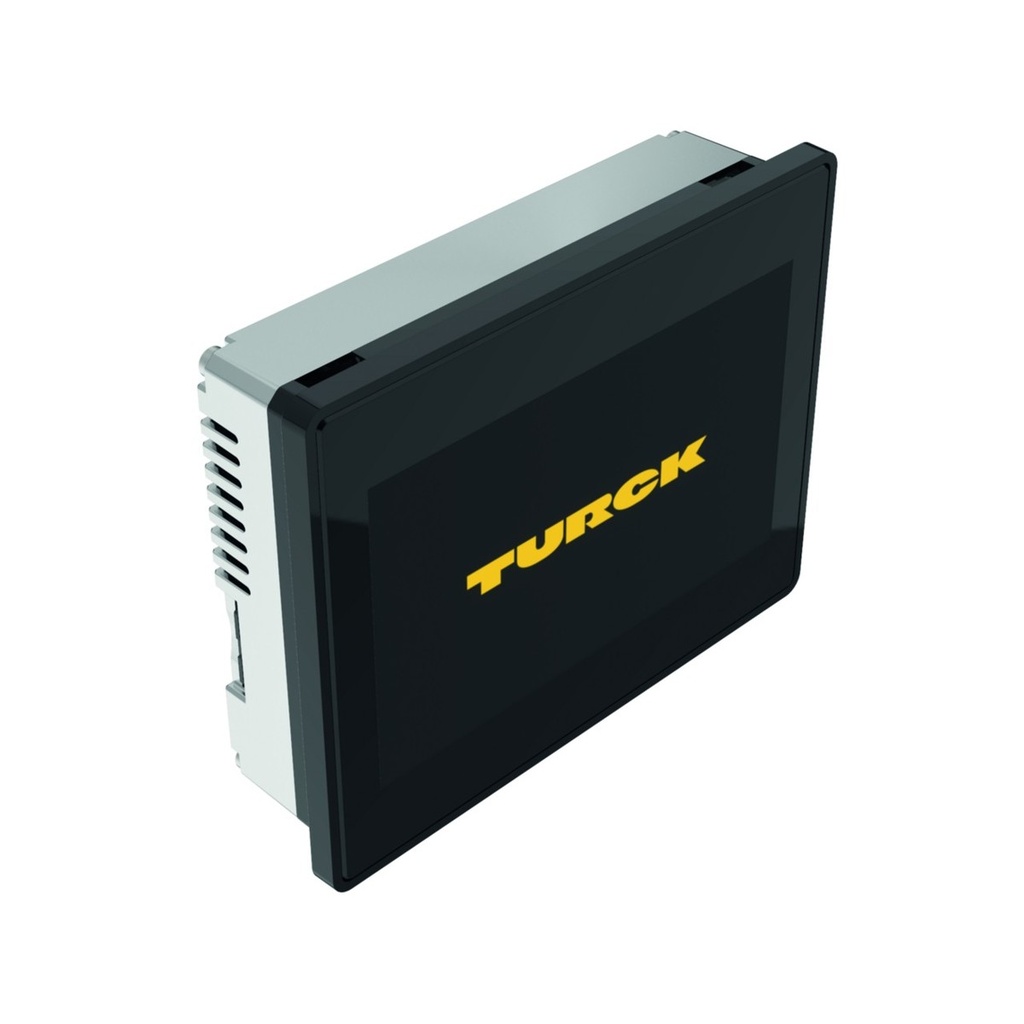

Touch display TX707HB-P3CV01, 7", CODESYS V3 PLC, IP66 front, sunlight readable

TX707HB-P3CV01 is a 7" touch display from the TURCK TX700 series with a built-in CODESYS V3 PLC, TARGET and WEB VISU visualisation. The HB version has a brighter 600 cd/m² screen, bonded with LOCA to reduce reflection, for readability in sunlight, and an all-metal housing with a protective coating on the PCB.

• Display: 7" TFT, 800 x 480 (WVGA), 16:9, 16M colours, 600 cd/m², capacitive glass front, dimmable to 0 %
• Communication: 3 x RJ45 Ethernet 10/100 Mbit, 1 x RS232/RS485/RS422, 2 x USB host (v2.0, max. 500 mA), SD card slot
• Expansion: 2 slots for up to 4 plug-in modules (I/O, CANopen, PROFIBUS DP, RS485, RS232, LTE/Wi-Fi)
• PLC: CODESYS V3.5.12.10, IEC 61131-3 (IL, LD, FBD, SFC, ST), 20000 kB program memory, 63 kB retain memory; ARM Cortex A9, Dual core 800 MHz, 1024 MB RAM, 4 GB Flash, battery-backed clock
• Supply: 24 VDC (10...32 VDC), max. 0.7 A
• Housing: metal, front 187 x 147 x 47 mm, cut-out 176 x 136 mm, mounting depth 47+8 mm
• Environment: IP66 front, IP20 rear, NEMA 12/4X; -20...+60 °C, 5...85 % RH non-condensing

Built into a cabinet door or control desk. Mounting brackets and the power connector come in the 7" TX700 mounting kit, available as an accessory; I/O and fieldbus modules plug into the expansion slots and are ordered separately.
