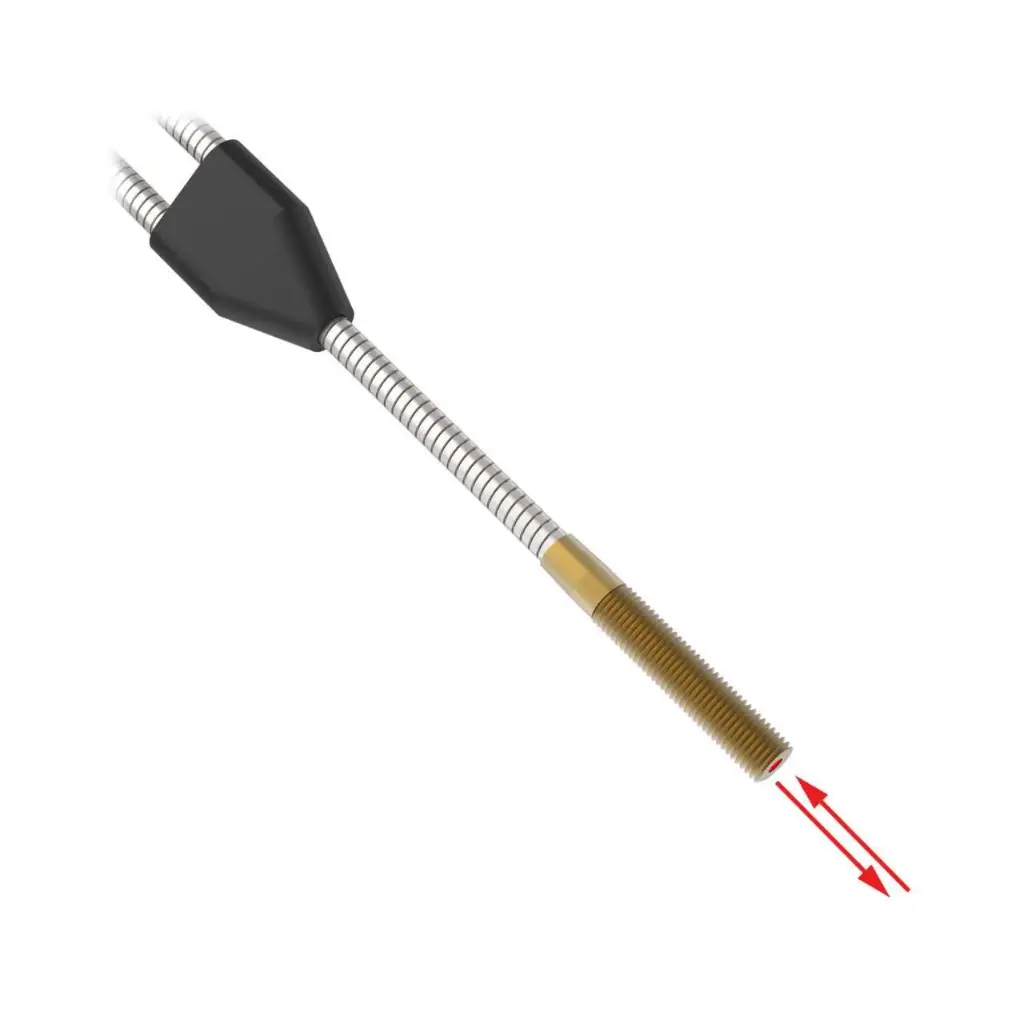

Optical fibre BT23S, glass, diffuse, bifurcated, 5/16-24 UNF tip, 914 mm

BT23S is a Banner bifurcated glass fibre for diffuse mode: one sensing end both emits and receives light, while the two control ends go to the emitter and receiver of the sensor.

• Type: diffuse, bifurcated
• Length: 914 mm, bundle Ø3.2 mm
• Tip: 5/16-24 UNF threaded
• Sheath: stainless steel monocoil
• Bend radius: at least 25 mm
• Temperature: -140...+249 °C

The fibre ends are ground and polished, so the assembly cannot be shortened or spliced. Glass fibres carry infrared as well as visible light; Banner recommends them for IR sensors.
