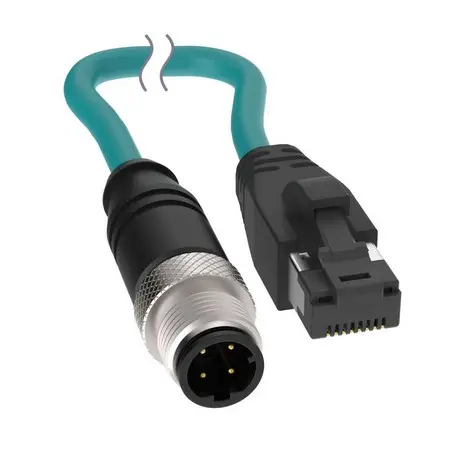

Connection cable BCD-M12DM-RJ45-2, M12 D-coded 4-pin male / RJ45 male, Ethernet Cat5e, 2 m

BCD-M12DM-RJ45-2 is a Banner Ethernet cordset that connects a device with a D-coded M12 socket to an RJ45 port on a switch, PC or controller. The RJ45 plug has a metal shell connected to the cable braid.

• Connectors: M12 male, D-coded, 4-pin / RJ45 male; length 2 m
• Cable: Ethernet Cat5e, 22 AWG, Ø 7 mm, black TPU overmould, braided shield
• Ratings: 1.5 A, 60 V DC
• Bend radius: more than 10x the cable diameter
• Temperature: -40...+80 °C fixed, -20...+80 °C flexible installation

Wiring: M12 pin 1 to RJ45 pin 1 (white/orange), 3 to 2 (orange), 2 to 3 (white/green), 4 to 6 (green), braid to shell.
