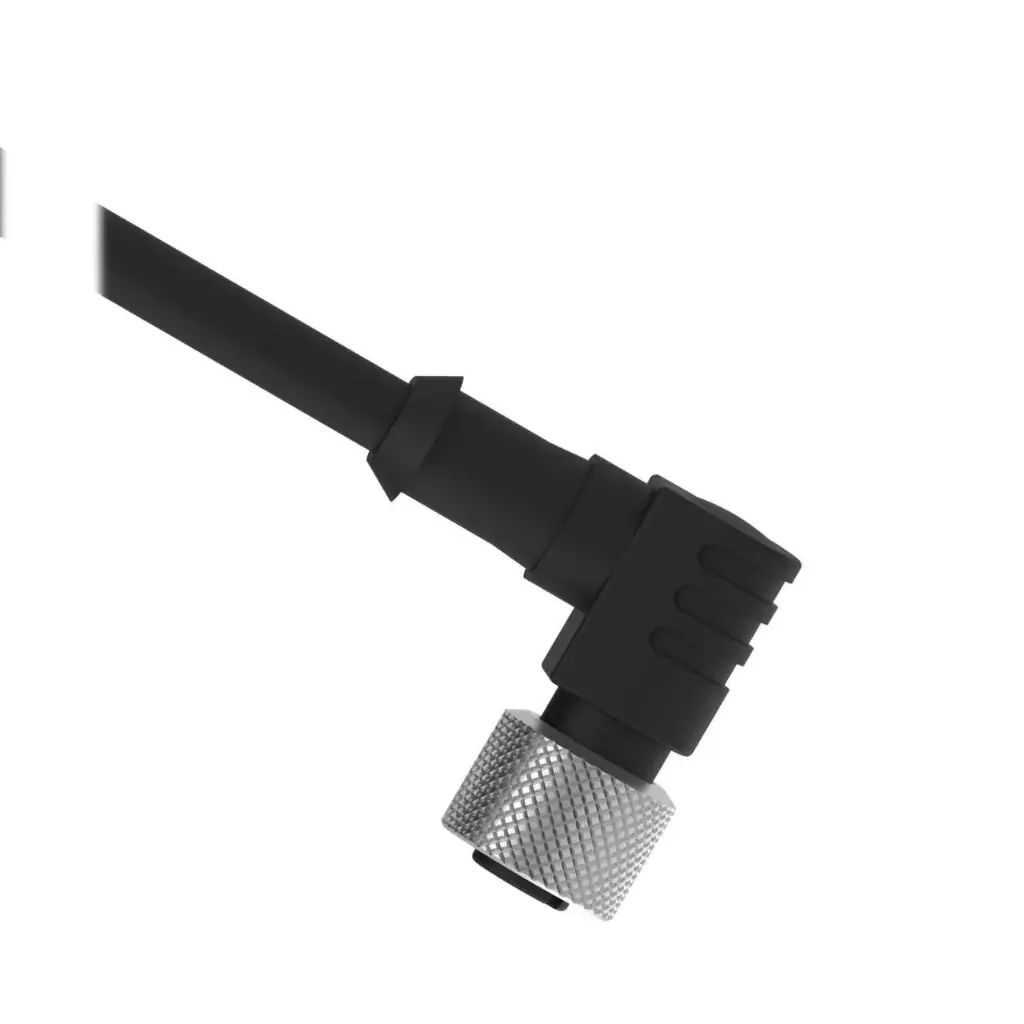

Connection cable BC-M12F8A-24-2-SF, M12 A-coded 8-pin, female, angled, 2 m, PVC, shielded

BC-M12F8A-24-2-SF is a Banner single-ended cordset with a right-angle 8-pin M12 female connector and flying leads. The cable has an aluminium foil shield with full coverage and an unterminated drain wire, so the shield is grounded at the cabinet end only.

• Connector: M12x1, female, right-angle, A-coded, 8 pins; nickel-plated brass coupling nut, black TPU body
• Cable: 2 m, black PVC, Ø 5.6 mm, 8 x 24 AWG, foil shield 100 % with drain wire
• Ratings: 2 A, 30 V; bend radius static 10x, dynamic 15x the outer diameter
• Environment: IP66, IP67, IP68, operating -40...+50 °C

Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (50 G, 11 ms).
