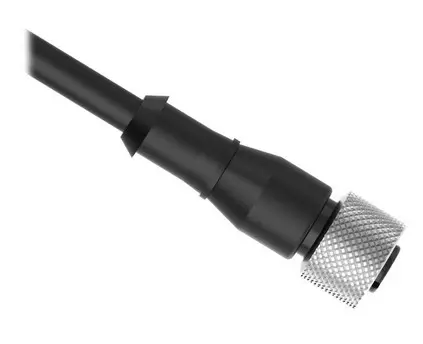

Connection cable BC-M12F8-24-1, M12 A-coded 8-pin, female, straight, 1 m, PVC

BC-M12F8-24-1 is a Banner single-ended cordset with a straight 8-pin M12 female connector and flying leads, unshielded.

• Connector: M12x1, female, straight, A-coded, 8 pins; nickel-plated brass coupling nut, black TPU body
• Cable: 1 m, black PVC, Ø 5.92 mm, 8 x 24 AWG; wire colours white, brown, green, yellow, gray, pink, blue, red
• Ratings: 2 A, 30 V; bend radius > 10x the outer diameter
• Environment: IP66, IP67, IP68, -40...+70 °C

UL and CE marked.
