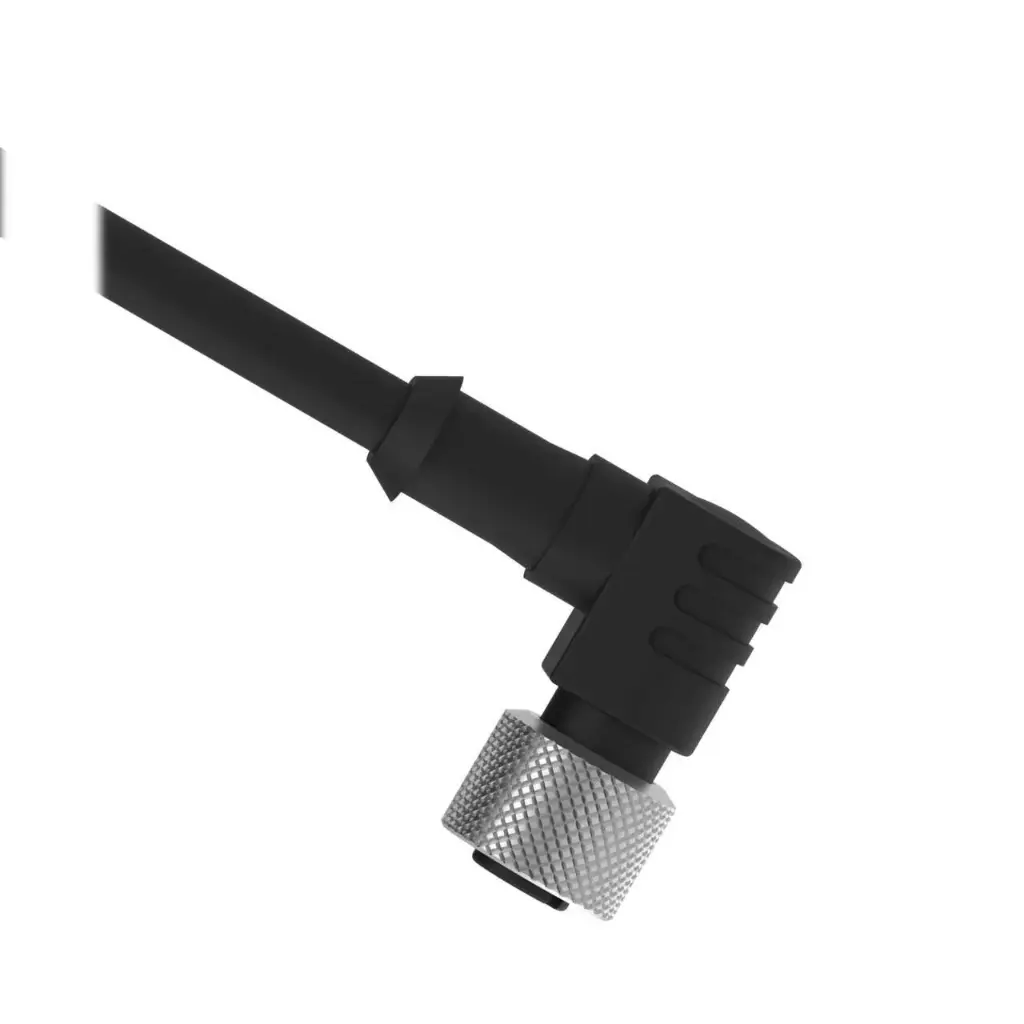

Connection cable BC-M12F5A-22-2, M12 A-coded 5-pin, female, angled, 2 m, PVC

BC-M12F5A-22-2 is a Banner single-ended cordset with a right-angle 5-pin M12 female connector and flying leads. The cable is UL listed as ITC and PLTC tray cable, sunlight resistant and rated Oil Res I and II.

• Connector: M12x1, female, right-angle, A-coded, 5 pins; nickel-plated brass coupling nut, black TPU body
• Cable: 2 m, black PVC, Ø 5.59 mm, 5 x 22 AWG; wire colours brown, white, blue, black, gray
• Ratings: 4 A, 30 V
• Bend radius: static ≥ 4x, dynamic ≥ 15x the outer diameter
• Environment: IP66, IP67, IP68, -40...+105 °C

UL 2250 ITC, UL 13 PLTC, UL 758 AWM 2517, CSA FT4 flame rating. Vibration per IEC 60068-2-6, shock per IEC 60068-2-27 (50 G, 11 ms).
