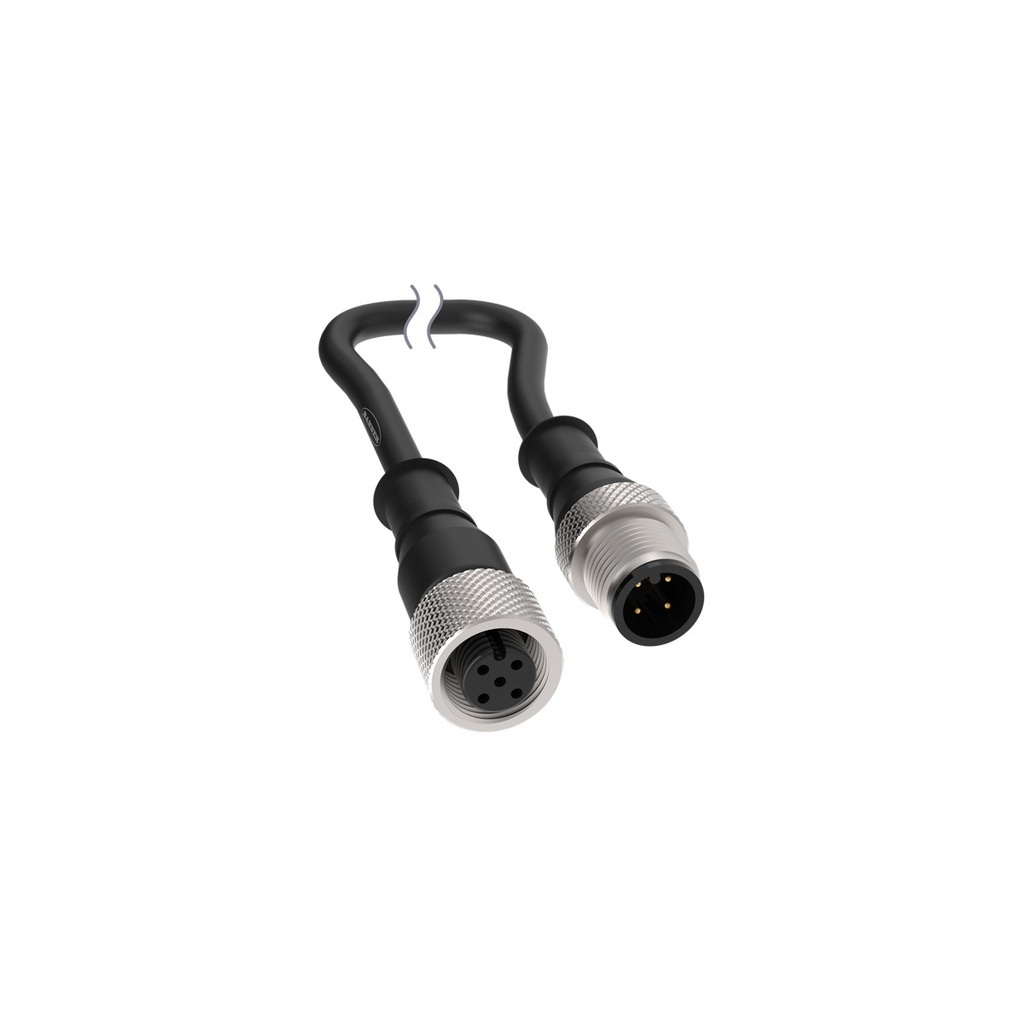

Connection cable BC-M12F4-M12M4-22-1, M12 A-coded 4-pin female / male, straight, 1 m, PVC

BC-M12F4-M12M4-22-1 is a Banner double-ended M12 extension cordset with a straight 4-pin female connector at one end and a straight 4-pin male connector at the other. The cable is rated as UL ITC/PLTC tray cable, so it can be laid in cable trays without conduit where those approvals apply.

• Connectors: M12x1, female / male, straight, A-coded, 4-pin; length 1 m
• Cable: black PVC, 22 AWG, 4 conductors, Ø 5.33 mm, unshielded
• Ratings: 4 A, 30 V
• Body: TPU connector body, nickel-plated brass coupling nut
• Environment: IP66, IP67, IP68, -40...+105 °C

Wire colours: brown 1, white 2, blue 3, black 4; pin 5 not used. Bend radius at least 4x the cable diameter fixed and 15x in motion; vibration per IEC 60068-2-6, shock per IEC 60068-2-27.
