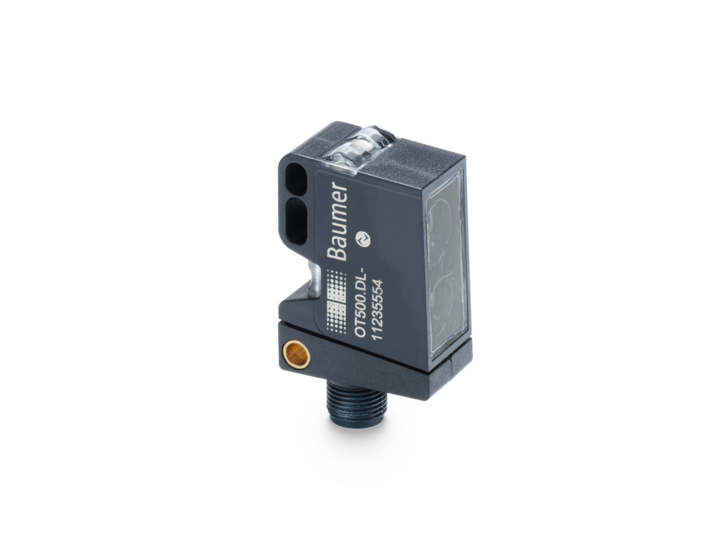

Photo sensor OT500.GL-PLPVB.72F, background suppression, 150...2500 mm, PNP, NO/NC, 12-30VDC, M12

OT500.GL-PLPVB.72F is a Baumer OT500 diffuse laser sensor with background suppression that determines distance from the time of flight of the laser pulse. This lets it detect very dark and shiny objects up to 2500 mm away and ignore anything behind the set switching point.

• Switching distance: 150...2500 mm, set with qTeach or the external teach input
• Output: PNP, complementary (NO/NC), light operate, 50 mA total
• Supply: 12...30 V DC, max. 60 mA
• Housing: 18 x 45 x 32 mm, ASA/PMMA plastic; red laser 680 nm, laser class 1
• Environment: IP67; -20...+50 °C
• Connection: M12 5-pin connector

Response time is under 8 ms. The switching distance is taught with qTeach or through the teach line, and the setting is protected against accidental change. Several sensors can be mounted side by side, as their mutual interference is suppressed.

Vibration resistance tested to IEC 60068-2-6, shock resistance to IEC 60068-2-27.
