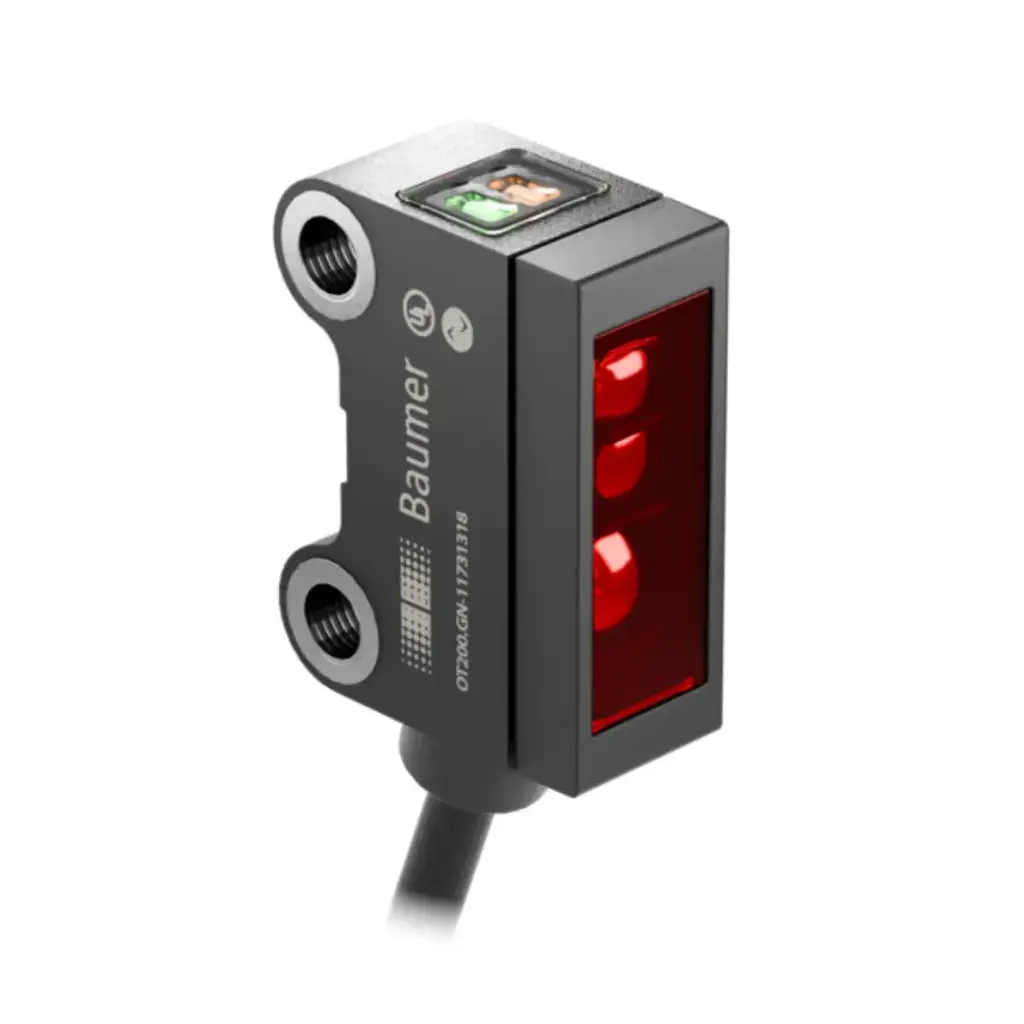

Photo sensor OT200.SN-GDZZJ.72CV, SmartReflect, 300...2000mm, push-pull, IO-Link, NO/NC, 2m cable

OT200.SN-GDZZJ.72CV is a SmartReflect light barrier from the Baumer OT200 series - it forms the beam between the sensor and a fixed background instead of a separate reflector. The background position Sde is set anywhere between 300 and 2000 mm, and an object is detected as soon as it enters the beam ahead of the background. The measured distance value is additionally available over IO-Link.

• Background position: 300...2000 mm (Sde), scanning range 90...94 % Sde
• Output: push-pull (PNP/NPN) and IO-Link V1.1.4, Class A, Light operate, switchable
• Output current: 100 mA
• Supply: 10...30 V DC, consumption typically 25 mA (24 V DC)
• Housing: plastic (ASA, PMMA), 8 x 25.1 x 15.8 mm, smooth stainless steel mounting sleeve
• Environment: IP 67, -25...+50 °C
• Connection: 2 m PVC cable, 4 x 0.08 mm²

The reflector-free barrier principle suits positions where a reflector has nowhere to mount or soils quickly - the conveyor belt, machine frame or wall serves as the background. The infrared laser diode (940 nm, laser class 1) also works in dusty and smoky environments, while a visible red Alignment Guide beam is used for alignment.

Vibration and shock resistance tested to IEC 60068-2-6:2008 (10 g, 10...2000 Hz) and IEC 60068-2-27:2009 (50 g / 11 ms).
