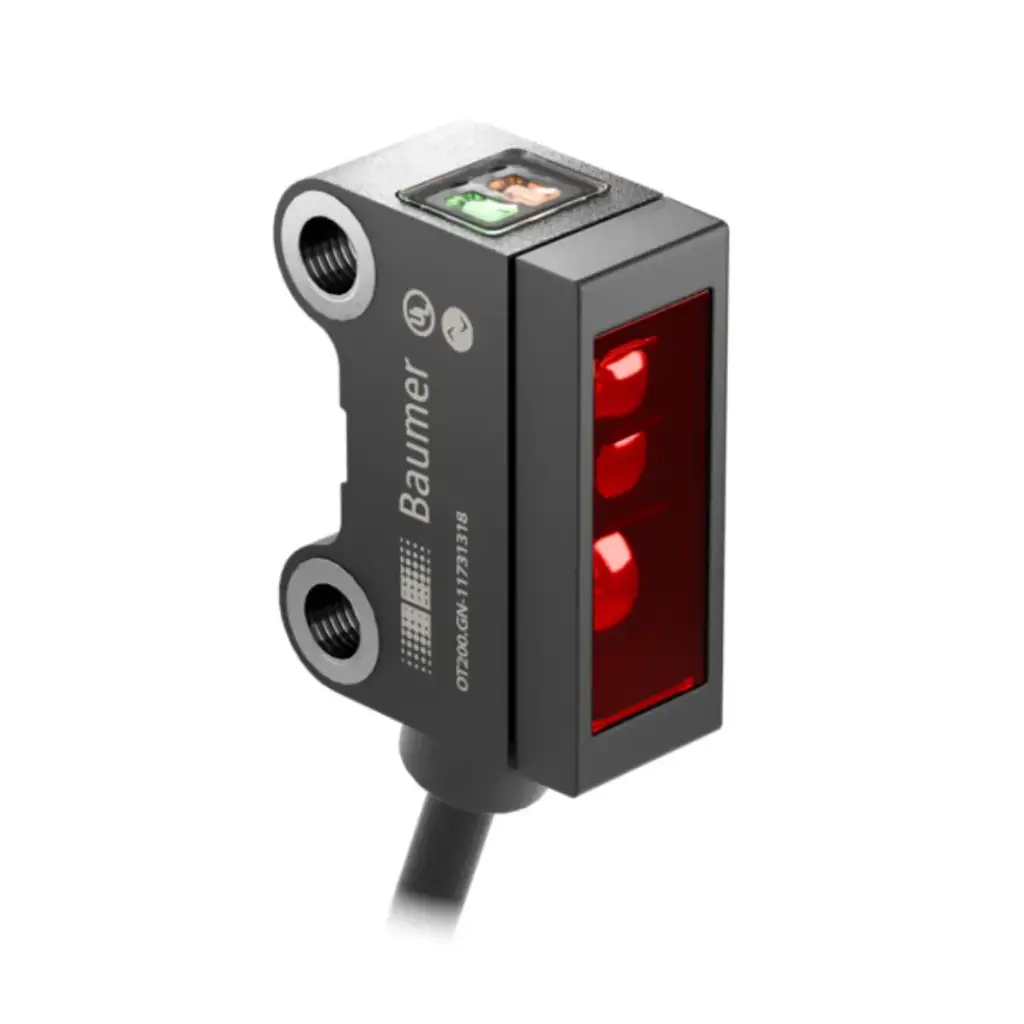

Photo sensor OT200.GN-GLZZJ.72CV, background suppression, 0...2000mm, push-pull, IO-Link, NO/NC, 2m cable

OT200.GN-GLZZJ.72CV is a background suppression photo sensor from the Baumer OT200 series, measuring by time of flight over a 0...2000 mm switching range. It measures distance directly instead of judging the amount of reflected light, so dark and shiny objects are detected at the same point. The measured distance value is additionally available over IO-Link.

• Switching range: 0...2000 mm (Tw), set by qTeach or IO-Link
• Output: push-pull (PNP/NPN) and IO-Link V1.1.4, Class A, Light operate, switchable
• Repeat accuracy: ≤ 1.25...1.5 mm
• Supply: 10...30 V DC, consumption typically 25 mA (24 V DC)
• Housing: plastic (ASA, PMMA), 8 x 25.1 x 15.8 mm, smooth stainless steel mounting sleeve
• Environment: IP 67, -25...+50 °C
• Connection: 2 m PVC cable, 4 x 0.08 mm²

The infrared laser diode (940 nm, laser class 1) also works in dusty and smoky environments, while a visible red Alignment Guide beam is used for alignment. qTeach setup needs no button, so the switching point cannot be changed by accident during production. Suppression of reciprocal influence allows several sensors to be mounted side by side.

Vibration and shock resistance tested to IEC 60068-2-6:2008 (10 g, 10...2000 Hz) and IEC 60068-2-27:2009 (50 g / 11 ms).
