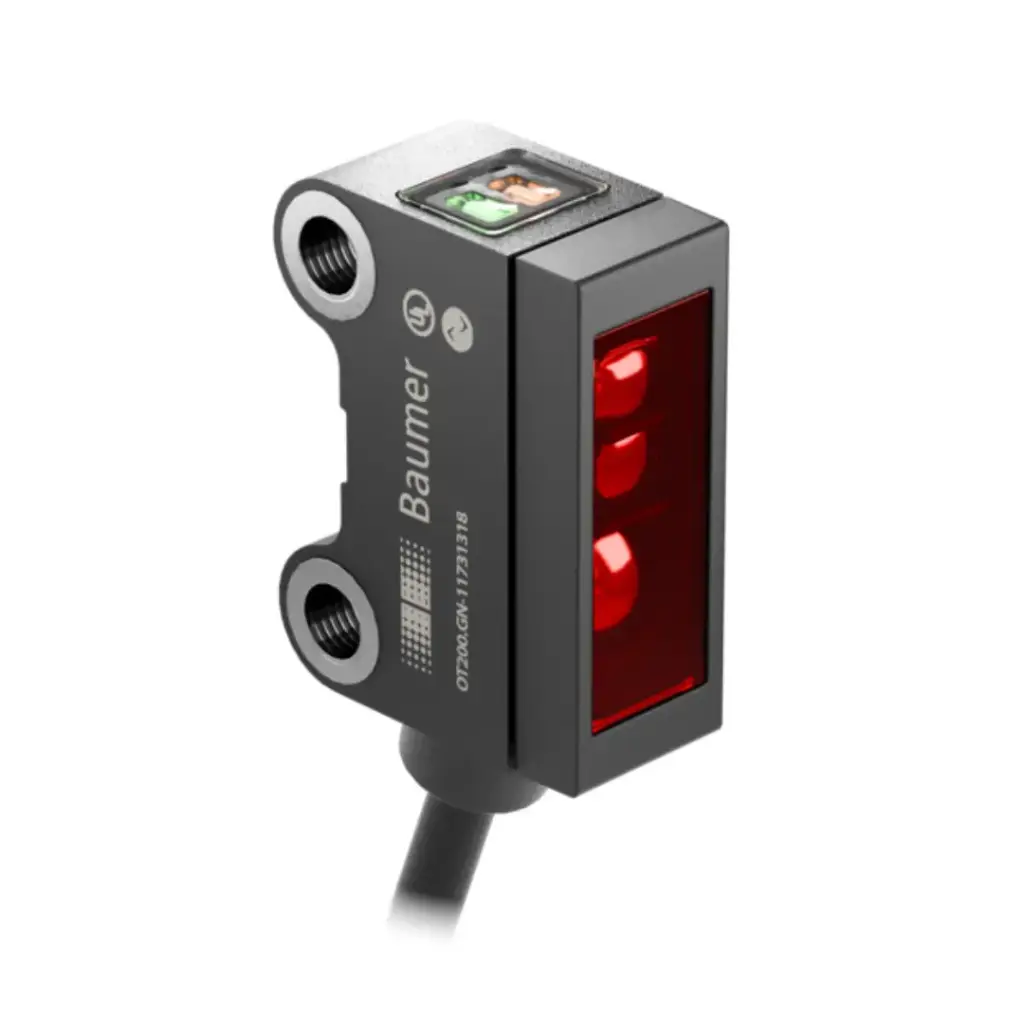

Photo sensor OT200.DN-GLZZJ.72CV, distance measuring, 0...2000mm, push-pull, IO-Link, 2m cable, IP67

OT200.DN-GLZZJ.72CV is a distance sensor from the Baumer OT200 series, measuring by time of flight over a 0...2000 mm range. It reports the measured distance over IO-Link and at the same time switches two freely set switching points.

• Measuring range: 0...2000 mm (Sd), repeat accuracy ≤ 1.25...1.5 mm
• Output: push-pull (PNP/NPN) and IO-Link V1.1.4, Class A
• Linearity error: ± 10 mm
• Supply: 10...30 V DC, consumption max. 55 mA
• Housing: plastic (ASA, PMMA), 8 x 25.1 x 15.8 mm, smooth stainless steel mounting sleeve
• Environment: IP 67, -25...+50 °C
• Connection: 2 m cable, 4 cores

The infrared laser diode (940 nm, laser class 1) also works in dusty and smoky environments, while a visible red Alignment Guide beam is used for alignment. Response time is selected over IO-Link: < 25 ms in High Speed, < 50 ms in Standard and < 200 ms in High Accuracy mode. Suppression of reciprocal influence allows several sensors to be mounted side by side.

Vibration and shock resistance tested to IEC 60068-2-6:2008 (10 g, 10...2000 Hz) and IEC 60068-2-27:2009 (50 g / 11 ms).
